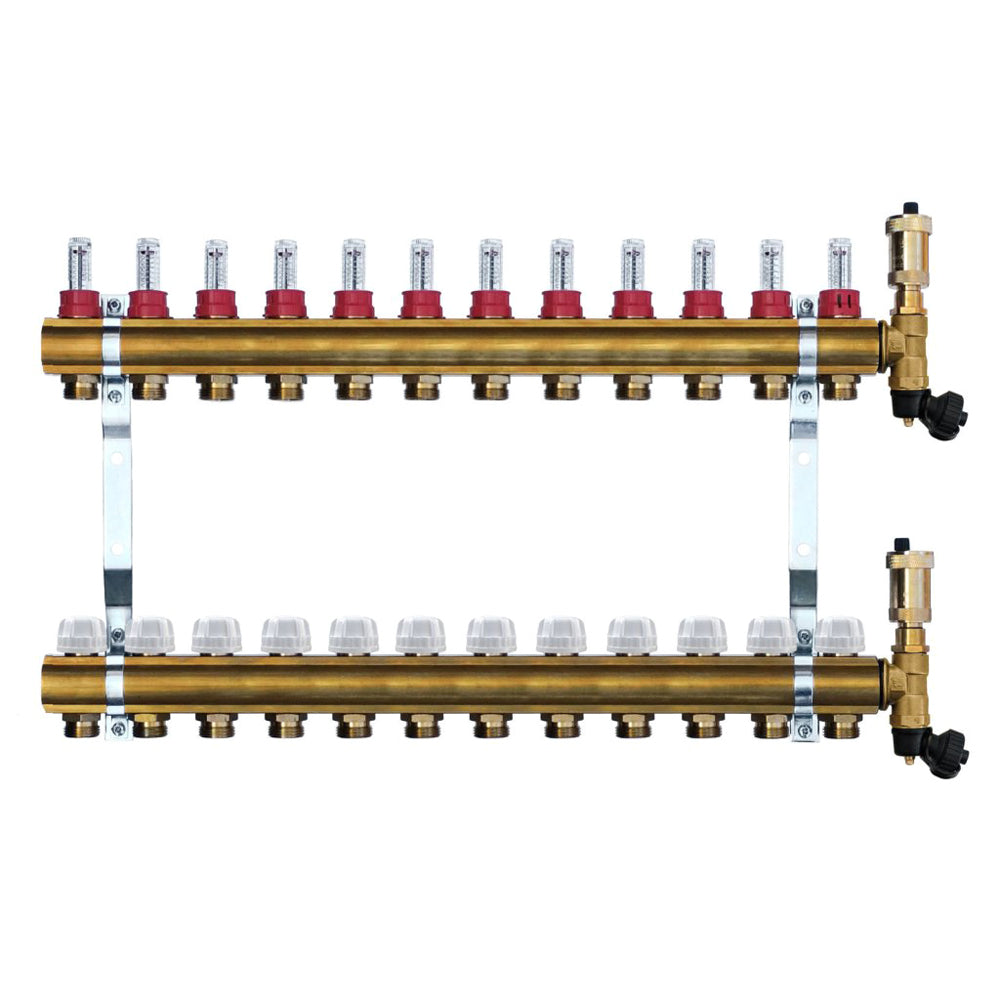

Brass manifold with automatic deaeration - 12 way

Warning: Image No. 2 is only indicative!

Brass 12-way manifold for underfloor heating, 1" connection

The assembly is equipped with shut-off valves and regulating fittings with flow meters, including a holder, a through-piece with an automatic air vent valve (1/2") and a rotary drain valve (1/2").

- 2x automatic venting

Technical parameters:

- purpose: heating and cooling systems
- permissible liquid temperatures: -10 °C to +120 °C
- max. permissible operating temperature: +80 °C
- max. permissible operating pressure: 6 bar
- max. test pressure: 10 bar
- measurement range: 0 - 5 l/min
- flow rate: 1.12 m3/h
- material: brass
- seal: EPDM
- measurement accuracy: ± 10%
- thread: DIN ISO EN 228-1
- liquids: water for heating, cooling water, water mixtures with standard anti-corrosion antifreeze additives
- fittings: Press-Messing Ms 58, nickel-plated
- flat seal: WS 3825
- sound insulation: DIN 4109
- recommended piping: PEX-AL-PEX 16 x 2
- recommended connection: compression fitting on ALPEX 16 x 2 ALU-EK pipe
- branch connection: Eurocone (EK)
- input and output connection: 1"
- flowmeters: two-regulating with the possibility of locking
- length without valves: 645mm
- valve length: 735mm
