REBEL RB-33B multimeter

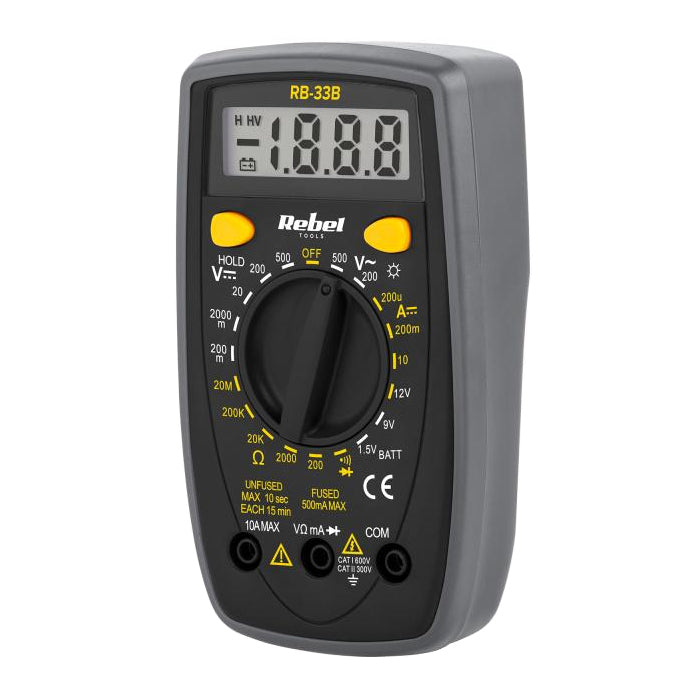

REBEL RB-33B Multimeter
The REBEL RB-33B multimeter is a practical and versatile tool, ideal for electricians, technicians and electronics enthusiasts. Designed for precise measurements, the meter offers a wide range of measurement functions that allow for accurate diagnosis and servicing of electrical equipment and installations.

Wide measurement ranges
The REBEL RB-33B meter accurately measures direct current (DC) voltage from 200 mV to 500 V and alternating current (AC) voltage up to 500 V, making it suitable for use with a variety of devices and circuits. In addition, it offers direct current (DC) measurement up to 10 A and resistance in the range of 200 Ohm to 20 MOhm. Battery test functions (1.5V and 9V), diode test and continuity check add versatility to help you solve problems quickly and easily.

Practical utility features
REBEL RB-33B is equipped with a 45 x 21 mm backlit display, which allows comfortable reading of results even in poor lighting conditions. The last reading function allows you to save the current measurement, which facilitates the analysis and documentation of results. Automatic polarization and manual change of measuring ranges ensure accurate and safe measurements.

Ergonomic design and mobility
The compact dimensions of the meter (160 x 76 x 32 mm) and its low weight (150 g) predetermine the REBEL RB-33B for convenient carrying and use in various places. The folding stand allows a stable placement of the meter on the work surface, which is especially useful for longer measurements. Power from a 9V battery provides a long operating time, and a low battery indicator will let you know when the battery needs to be replaced, thus preventing unexpected interruptions.

Backlit display
Manual change of measurement range

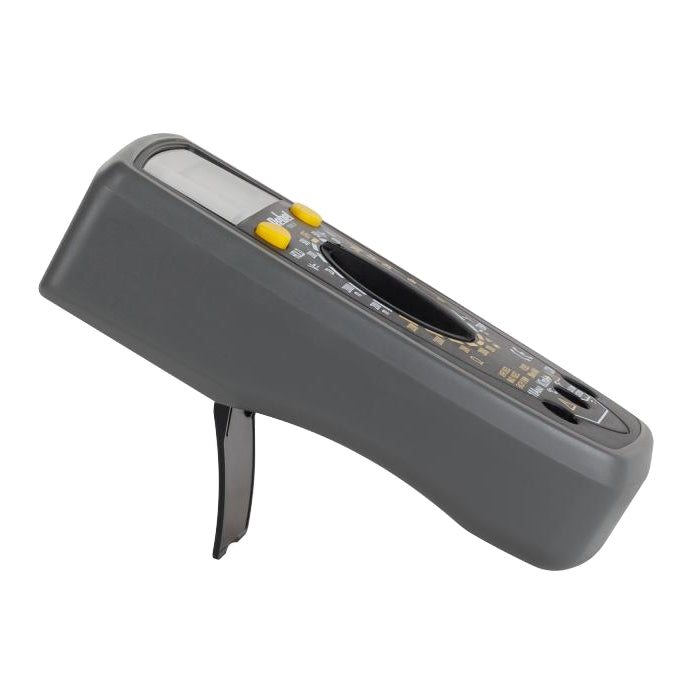

Folding stand
Last measurement hold
Low battery indicator
Polarity: automatic
Sampling frequency: 2 times per second

Technical parameters:

Maximum reading: 1999
Display size: 45 x 21 mm
Operating temperature: 0 ° C ~ 40 ° at humidity < 80%
Storage temperature: -10 ° ~ 50 ° C with humidity < 85%
Power supply: 9 V battery
Dimensions: 160 x 76 x 32 mm
Weight: 150 g

Measuring ranges
DC Voltage: 200 mV, 2000 mV, 20 V, 200 V, 500 V
AC Voltage: 200 V, 500 V
DC Current:
200 µA, 200 mA, 10 A Resistance: 2002 Ohm, 2002 Ohm, k kOhm, 20 MOhm
Battery test: 1.5 V, 9 V
Diode test
Continuity check

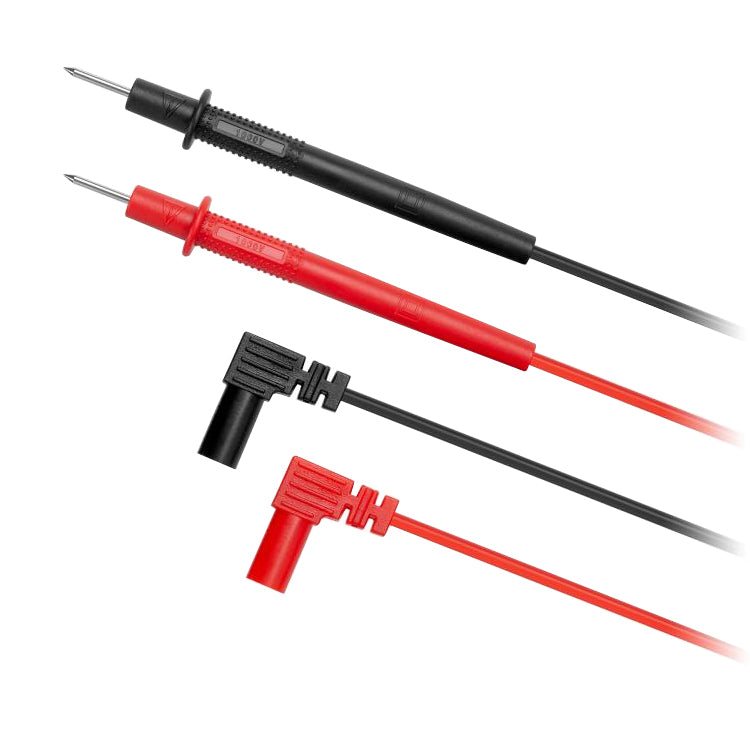

Package contents: multimeter, test leads, instructions
