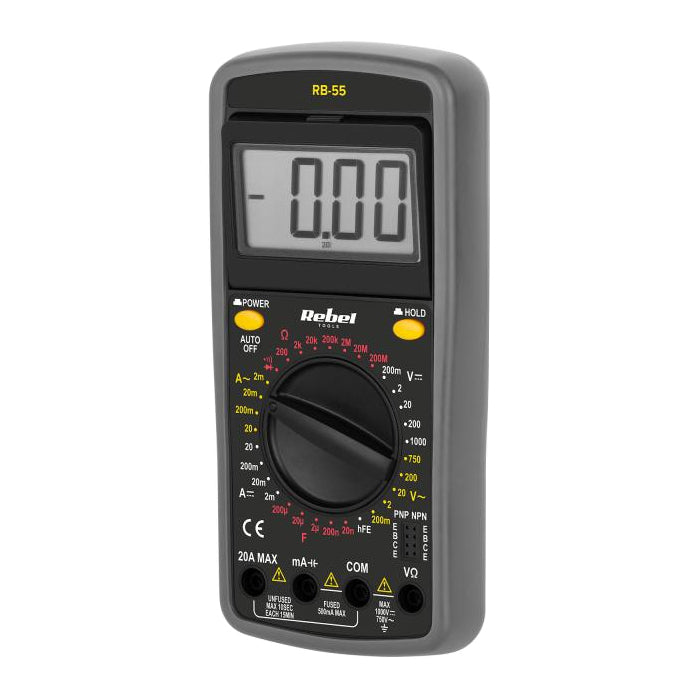

REBEL RB-55 multimeter

The REBEL RB-55 universal meter is a precise measuring instrument that can be used in both domestic and professional applications. Thanks to a wide range of functions and measurements, it allows for accurate analysis of electrical parameters and diagnostics of devices.

Measurement versatility
The REBEL RB-55 electric meter offers wide measurement ranges, allowing for accurate measurement of direct voltage (DC) from 200 mV to 1000 V and alternating voltage (AC) from 200 mV to 750 V. The ability to measure current intensity, both direct and alternating, up to 20 A allows for diagnostics of various electrical installations and devices. The meter also measures resistance up to 200 MOhm and capacitor capacitance up to 200 µF, making it an ideal tool for a wide range of applications.

Functional and practical
The meter is equipped with a diode and hFE transistor testing function, which facilitates the diagnostics of electronic systems. The continuity check function allows you to quickly identify breaks in wires or connections, which is very useful during installation work. The ability to freeze the last reading allows for easy reading of results even in difficult working conditions.

Ergonomics and ease of use

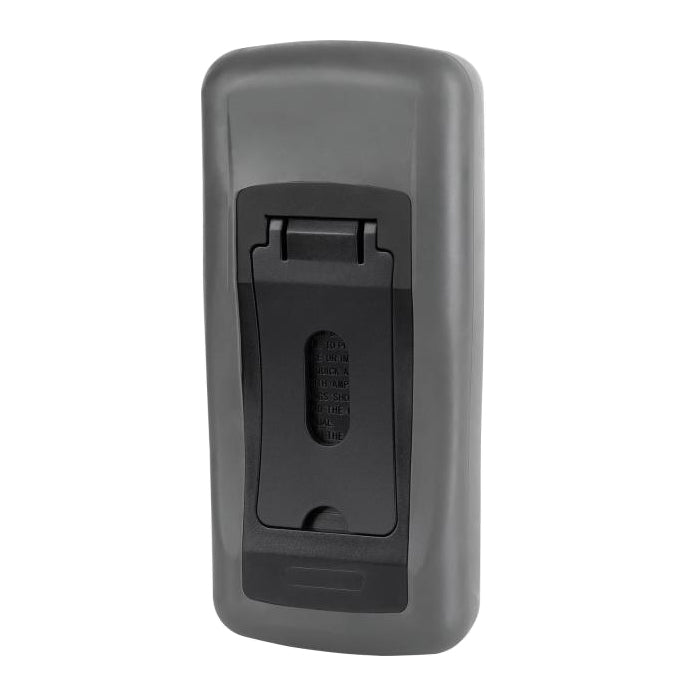

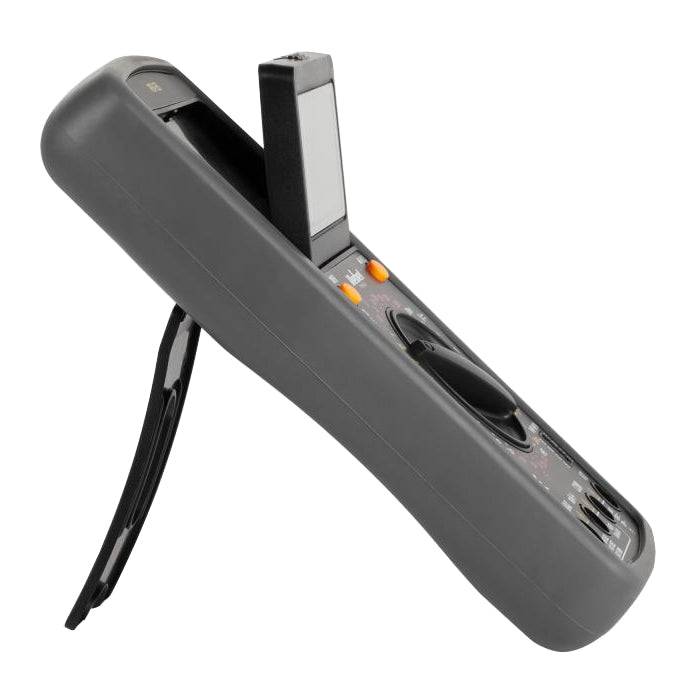

REBEL RB-55 is characterized by compact dimensions (190 x 90 x 31 mm) and a weight of 272 g, which makes it practical and convenient to use. The folding stand allows for stable placement of the meter during operation, and the large 60 x 31 mm display ensures clear readings. The meter is powered by a standard 9V battery, which guarantees a long operating time.

Reliability and safety
The device operates at temperatures from 0°C to 40°C with humidity below 80%, which ensures its reliability in various environmental conditions. The low battery indicator notifies the user when the battery needs to be replaced, ensuring constant readiness for use.

Package contents

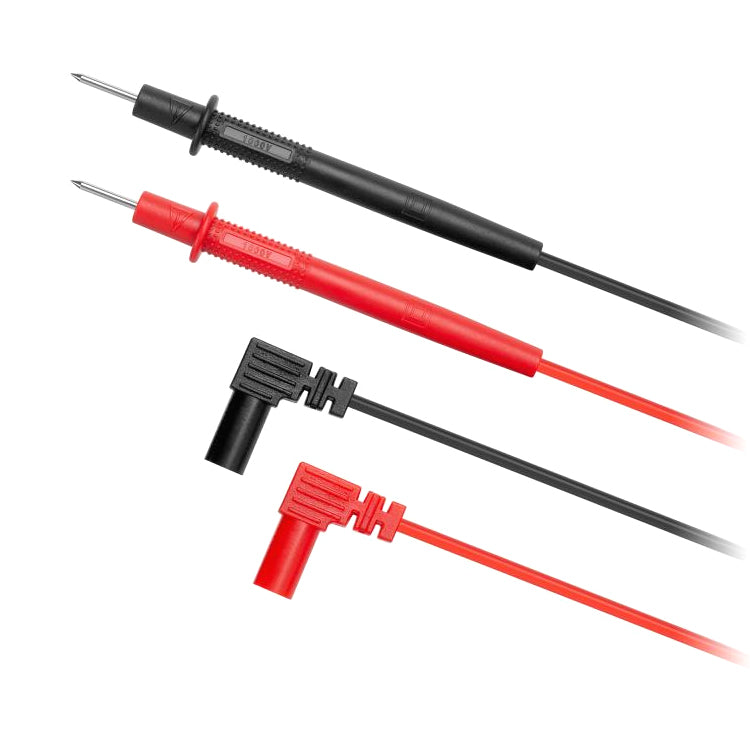

The REBEL RB-55 universal meter is supplied with test leads and an instruction manual, which allows you to start working with the device immediately.

MEASUREMENT RANGES
DC voltage: 200mV, 2V, 20V, 200V, 1000V
AC voltage: 200mV, 2V, 20V, 200V, 750V
DC current: 2mA, 20mA, 200mA, 20A
AC current: 2mA, 20mA, 200mA, 20A
Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm, 20 MOhm, 200 MOhm
Capacitance: 20nF, 200nF, 2µF, 20µF, 200µF
Diode test
Transistor hFE test
Circuit continuity check
Manual range change
Foldable stand
Freeze last reading
Indicator low battery
Polarization: automatic
Sampling frequency: 2 times per second

Technical parameters:

Maximum reading: 1999
Display size: 60 x 31 mm
Operating temperature: 0°C ~ 40° at humidity <80%
Storage temperature: -10° ~ 50°C at <85% humidity
Power supply: 9V battery
Dimensions: 190 x 90 x 31 mm
Weight: 272 g

Package contents: multimeter, test leads, instructions
