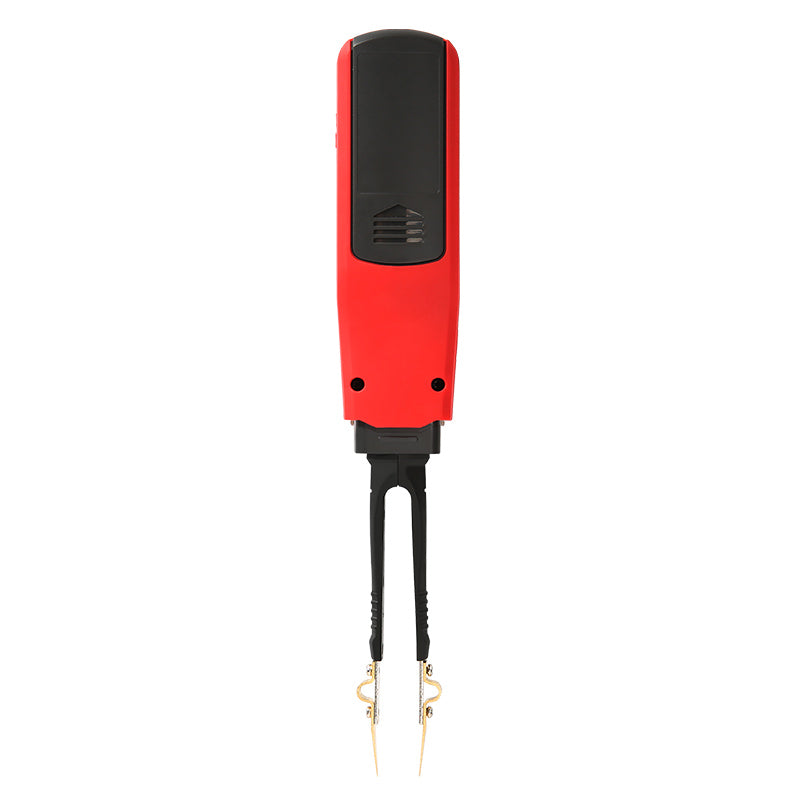

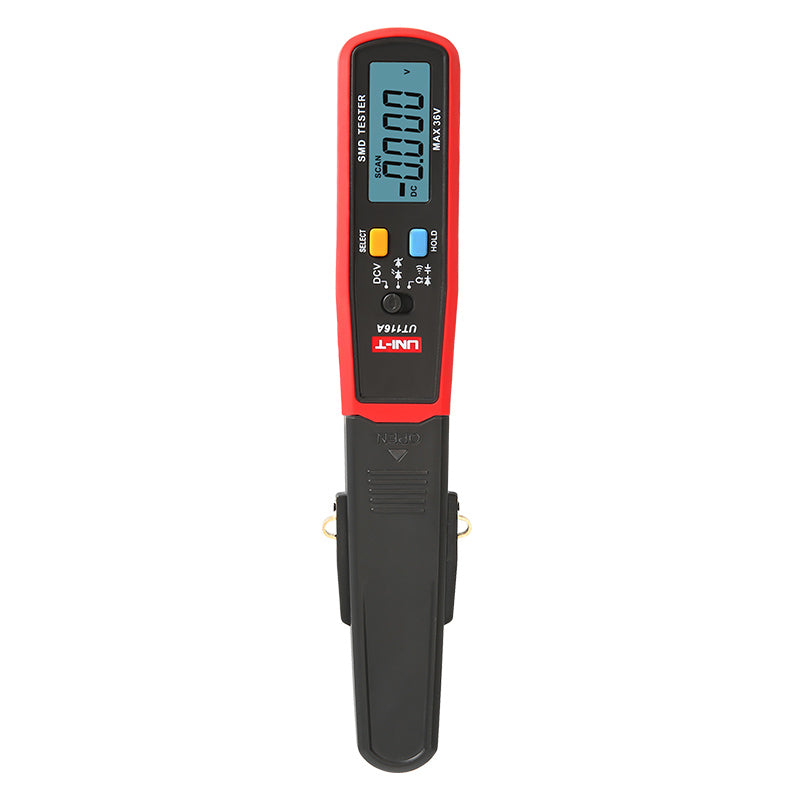

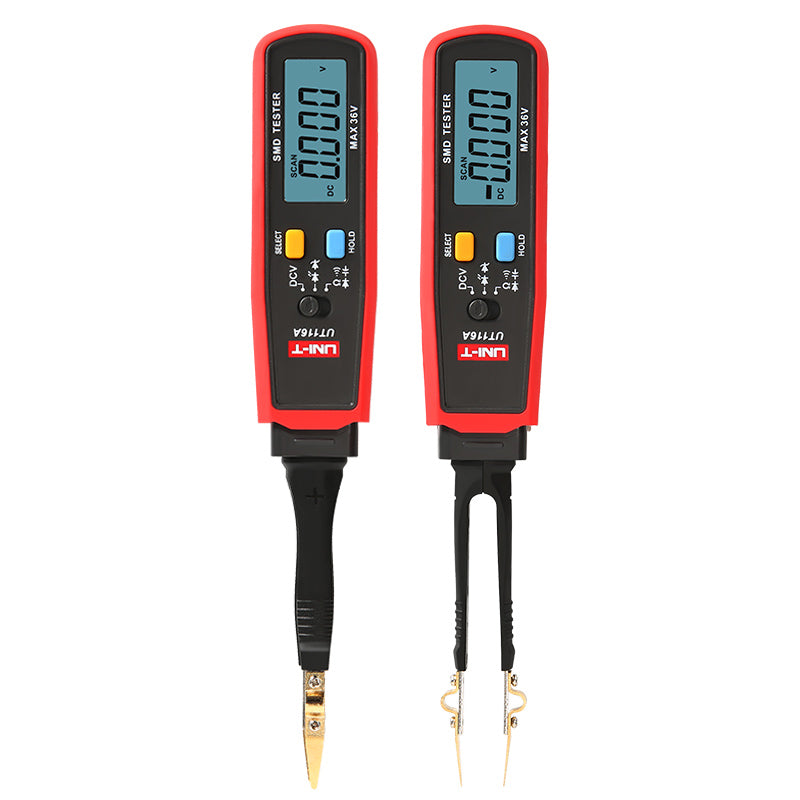

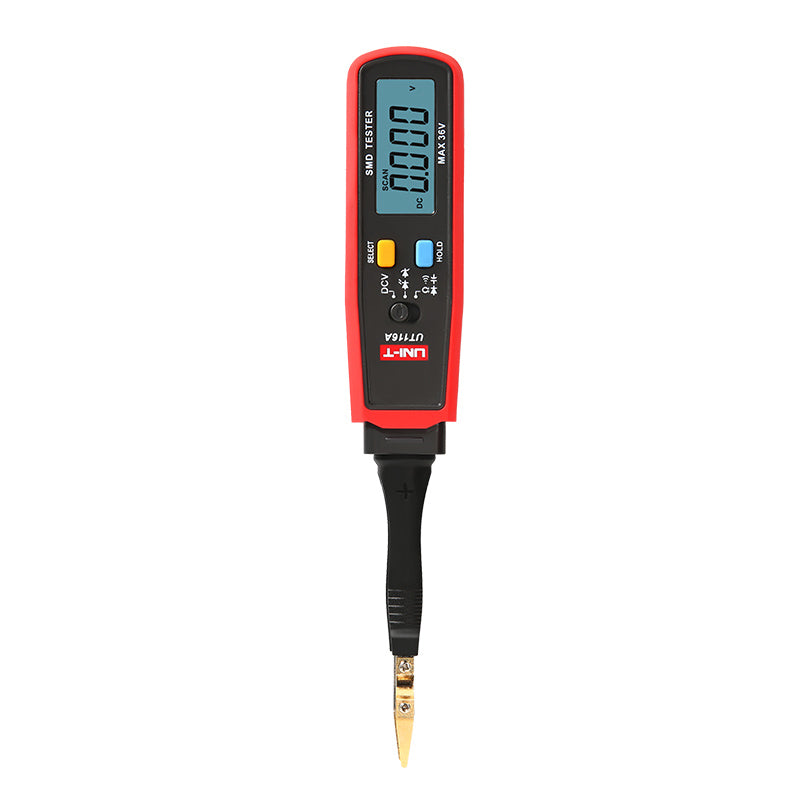

Multimeter UNI-T UT116A

This product comes with a 3-year warranty.

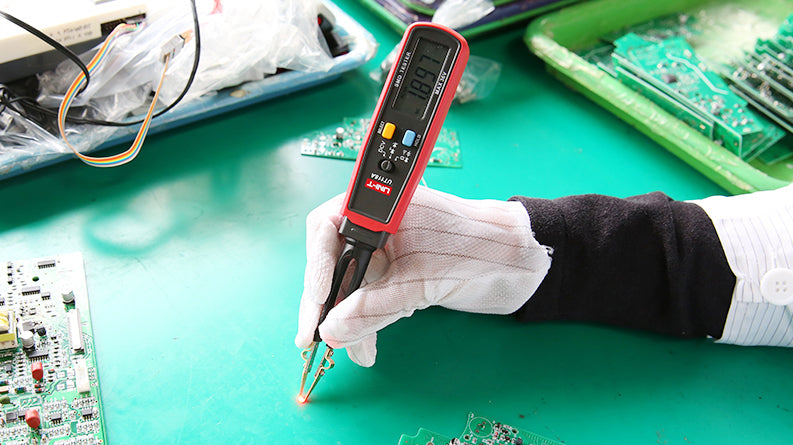

The UT116A tester is a SMD brazed electronic component testing device. The four-digit display with a range of 3000 can display voltage up to 36V, resistance up to 30M?, capacity up to 30mF. It is also possible to test the diodes and the Zener as well as test the continuity of circuits with resistance signaling less than 30?.

Product parameters :

- voltage measurement up to 36 V DC
- automatic identification of resistance, capacitance, diodes
- measurement of resistance, continuity of circuit, capacitance, diodes
- the pen can be rotated 180 ° from the tips, which is convenient for reading data from the display when measuring diodes / LEDs
- Zener diode polarity test
- low battery indication
- automatic shutdown when idle after 10 minutes

Technical parameters :

- display range : 3000
- automatic range switching
- voltage measurement up to : 36 V DC
- resistance measurement : 30M?
- circuit continuity test : < 30?
- capacity measurement up to : 30 mF
- diode test : 3V
- LED test : stabilized voltage approx. 21 V / 1 mA
- power supply : battery 1,5 V (AAA) x 2pcs
- display dimensions : 39 mm x 20 mm
- external dimensions : 204 mm x 33 mm x 25 mm
- product weight : about 80 g
- product color : red and gray


Contents of individual package :

- UT116A tester : 1pc
- battery 1,5V (AAA) : 2pcs
- Czech and English manual
- a gift box


Packaging for wholesale customers :

- standard quantity per carton : 60pcs
- standard carton dimensions : 440 mm x 420 mm x 210 mm
- gross weight of carton : approx. 7.1 kg


MANUFACTURER: UNI-TREND
https://www.uni-trend.com/
