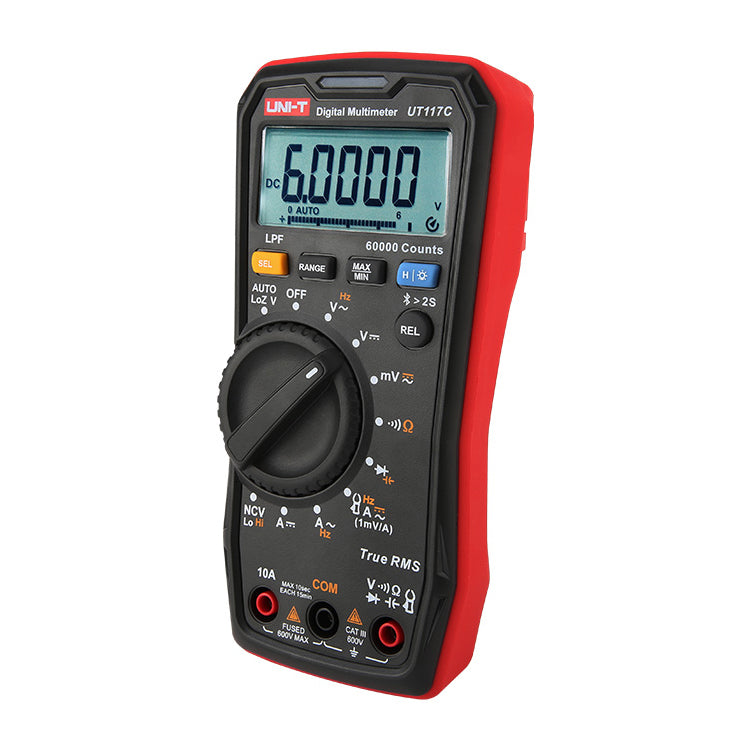

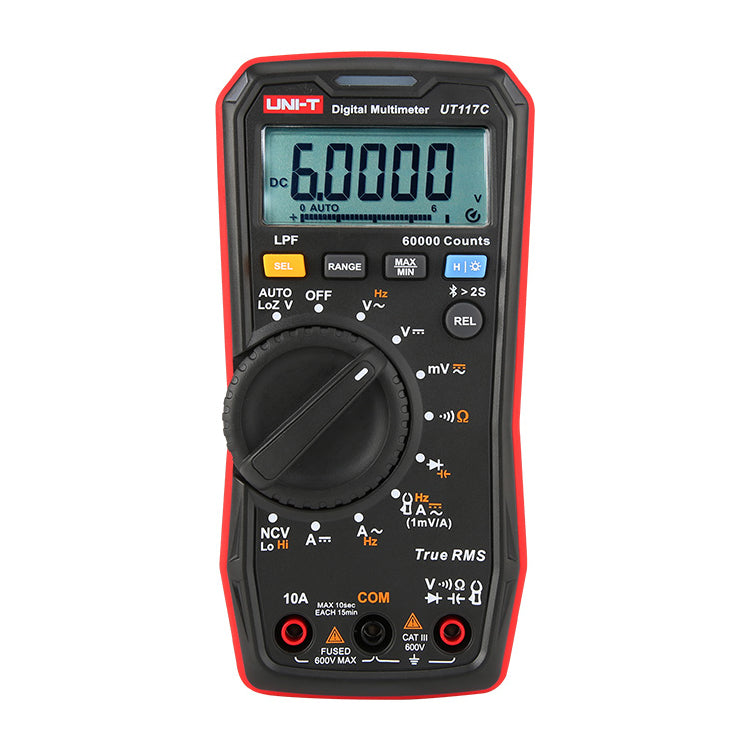

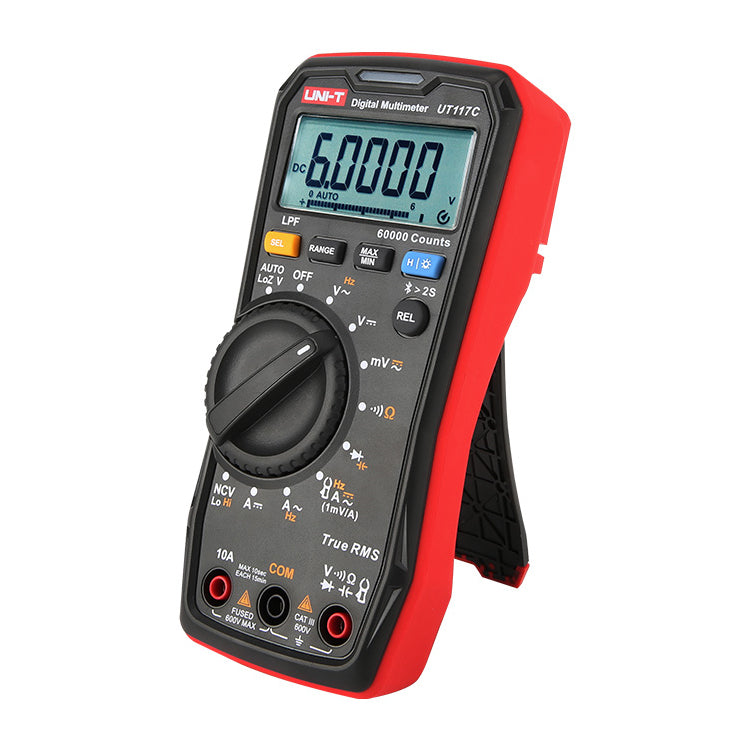

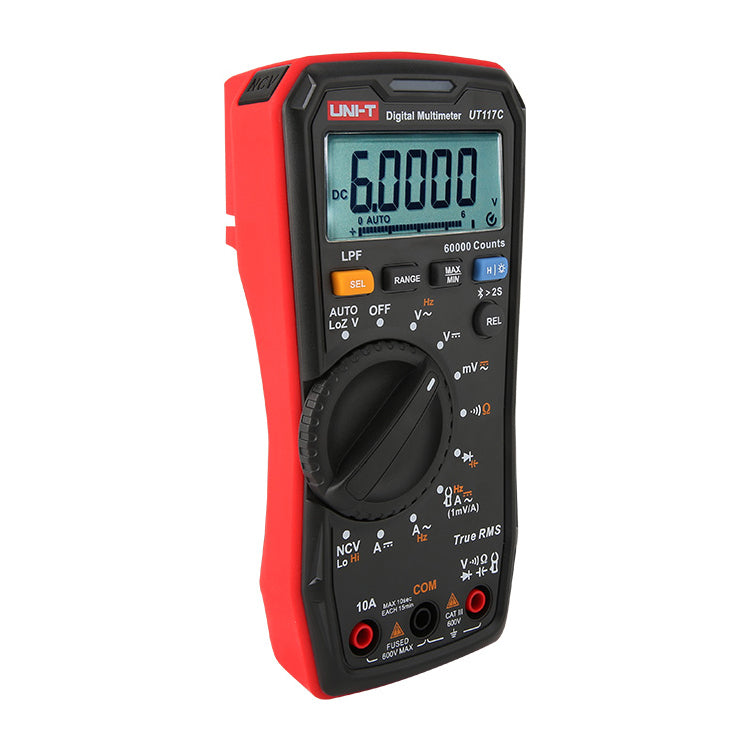

Multimeter UNI-T UT117C

This product comes with a 3-year warranty. Multimeter UT117C High precision True RMS digital multimeter. which has voltage measurement AC/DC 600V, current measurement 10A AC/DC, LPF measurement, Bluetooth function, etc. The main features are fast response, high accuracy, small dimensions and easy operation, and the accuracy of the product can be guaranteed even after falling from 2 meters. It is a good tool for electricians. UT117C is equipped with a digital LCD display. protection against overload in of all ranges and unique appearance.


Product parameters:

- measurement of voltage, AC/DC current, resistance, capacity, diode test, continuity and frequency
- connection to an external current probe (ratio: 1mV/A)
- Data Hold, NCV
- automatically identifies input signals (resistance, AC/DC voltage and current)
- automatic shutdown
- A/D converter with high resolution and data processing technology
- True RMS to ensure accurate measurement of non-linear loads
- ability to measure 20A (10 seconds transient measurement)
- LoZ function: Low impedance. which prevents incorrect reading
- LPF function to ensure accurate voltage and frequency measurement of the variable speed drive (VSD)
- display of MAX/MIN average values for recording signal fluctuations
- white backlight allows the user to read the displayed data in a dark environment
- has a Bluetooth communication function. Through UNI-T's smart measuring APP, test results can be recorded and reported and can generate a data diagram
- ergonomic design for one-handed operation
- category CAT III 600V
- fall protection: 2 m


Technical parameters:

- measuring ranges of AC voltage (alternating current): 600 mV / 6 V / 60 V / 600 V ±(1%+30)
- measuring ranges of AC current (alternating current): 6 A / 10 A ±(1.5%+30)
- measuring ranges of DC voltage (direct current): 600 mV / 6 V / 60 V / 600 V ±(0.3%+10)
- measuring ranges of DC current (direct current): 6 A / 10 A ±(0.5%+10)
- auto-V loz: 600 V ±(1%+3)
- LPF (ACV): 600V ±(2%+3)
- frequency measurement range: 99 Hz / 999 Hz / 9.9 KHz / up to 50 KHz ±(0.01%+3)
- resistance measurement ranges of resistors: 600 ? to 6 M? ±(0.5%+5) / 40 M? ±(3%+5)
- measuring range capacity: 1000 nF / 10 µF / 100µF ±(1.9%+5) / 1000 µF / 10000 µF ±(2.5%+5)
- LCD display with a maximum display of 60000
- relative measurement mode
- high voltage warning
- sound and visual indication
- low battery indication
- automatic shutdown: approx. 15 minutes
- LCD backlight: automatic shutdown after 5 minutes
- power supply 3 pcs R03 (AAA) 1.5V batteries
- weight: 346 g
- dimensions: 169 mm x 84 mm x 48.8 mm
