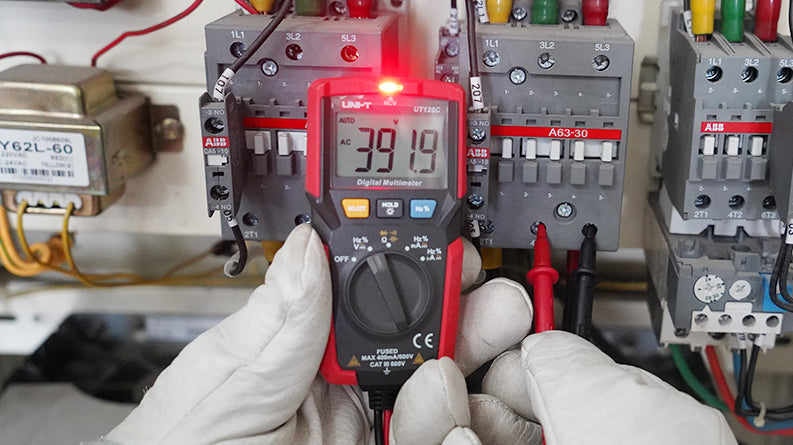

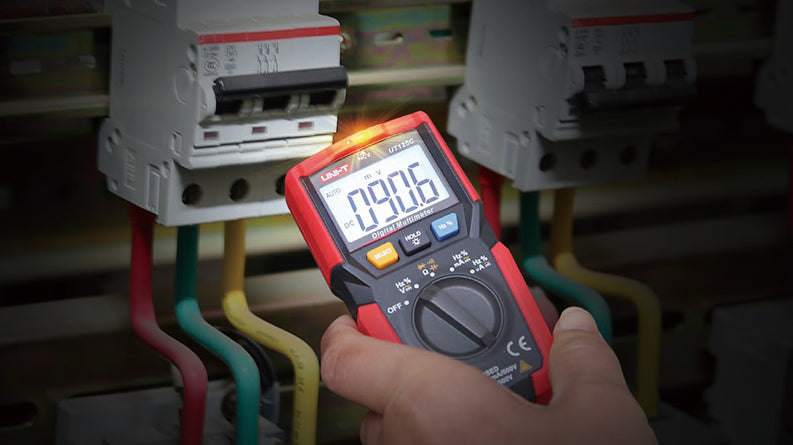

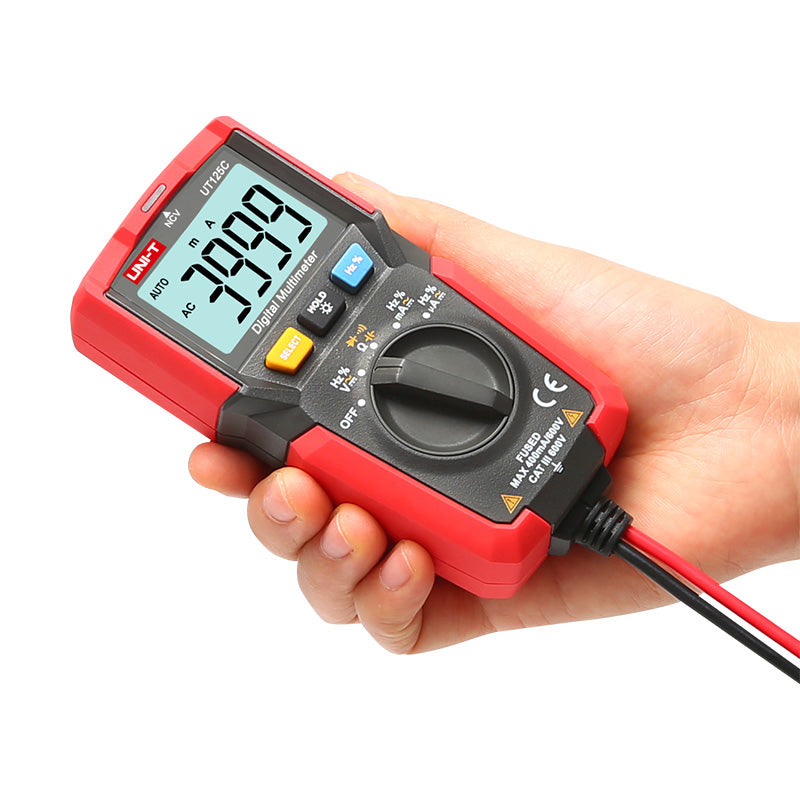

Multimeter UNI-T UT125C

This product comes with a 3-year warranty. A reliable pocket multimeter with a digital display that displays up to 4,000 digits. Ideal tool for measuring both DC and AC voltage and current, resistance, capacity and continuity with overload protection. In this price range, the device is also equipped with extra features, including NCV, frequency measurement and display backlight. The UT125C complies with CAT III 600V and cETLus certificates.

Multimeter functions:

AC voltage measurement - 4 V / 600 V
DC voltage measurement - 400 mV / 600 V
AC current measurement - 400 µA / 400 mA
DC current measurement - 400 µA / 400 mA
Resistance measurement - 400 ? / 4 M?
Frequency measurement - 9,999 Hz - 60 kHz
Duty cycle measurement - 20% / 80%
Non-contact voltage measurement (NCV)
Capacity test - 50 nF / 100 µF
Line continuity test (buzzer)
Diode test
Manual range selection
Reverse polarity detection
Data hold
Display backlight
Automatic shutdown when idle

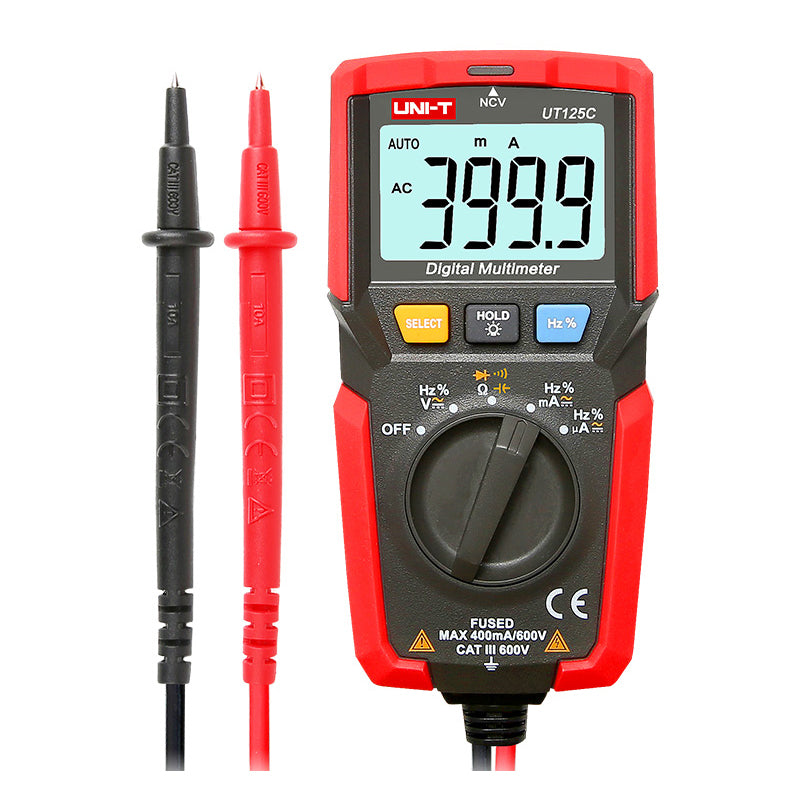

Integrated testing leads
Low battery indication
Overload protection, fuse protection

Technical parameters:

AC voltage measurement (range, resolution, accuracy):
4 V / 0,001 V / ± 1,2 % + 5
40 V / 0,01 V / ± 1,2 % + 5
400 V / 0,1 V / ± 2 % + 10
600 V / 1 V / ± 2 % + 10

DC voltage measurement (range, resolution, accuracy):
400 mV / 0,1 mV / ± 1 % + 8
4 V / 0,001 V / ± 0,5 % + 5
40 V / 0,01 V / ± 0,5 % + 5
400 V / 0,1 V / ± 0,8 % + 5
600 V / 1 V / ± 0,8 % + 5

AC current measurement (range, resolution, accuracy):
400 µA / 0,1 µA / ± 2 % + 8
4 mA / 0,001 mA / ± 2 % + 8
40 mA / 0,01 mA / ± 2 % + 8
400 mA / 0,1 mA / ± 2 % + 8

DC current measurement (range, resolution, accuracy):
400 µA / 0,1 µA / ± 1,8 % + 5
4 mA / 0,001 mA / ± 1,8 % + 5
40 mA / 0,01 mA / ± 1,8 % + 5
400 mA / 0,1 mA / ± 1,8 % + 5

Resistance measurement (range, resolution, accuracy):
400 ? / 0,1 ? / ± 1 % + 5
4 k? / 1 ? / ± 1 % + 5
40 k? / 10 ? / ± 1 % + 5
400 k? / 100 ? / ± 1 % + 5
4 M? / 1 k? / ± 1,2 % + 10
40 M? / 10 ? / ± 2 % + 10

Frequency measurement (range, resolution, accuracy):
9,999 Hz - 60 kHz / 0,001 Hz - 10 kHz / ± 0,1% + 5

Measurement of the working cycle
20 - 80 %

Capacity test (range, resolution, accuracy):
50 nF / 0,01 nF / ± 4 % + 30
500 nF / 0,1 nF / ± 3 % + 15
5 µF / 1 nF / ± 4 % + 10
50 µF / 10 nF / ± 4 % + 10
100 µF / 100 nF / ± 4 % + 10

The device complies with IEC UL STD 61010-1, 61010-2-030, 61010-2-033, 61010-031
CAT III 600V, double insulation, overload protection, pollution class II
Dimensions (mm): 112 x 58 x 35 mm

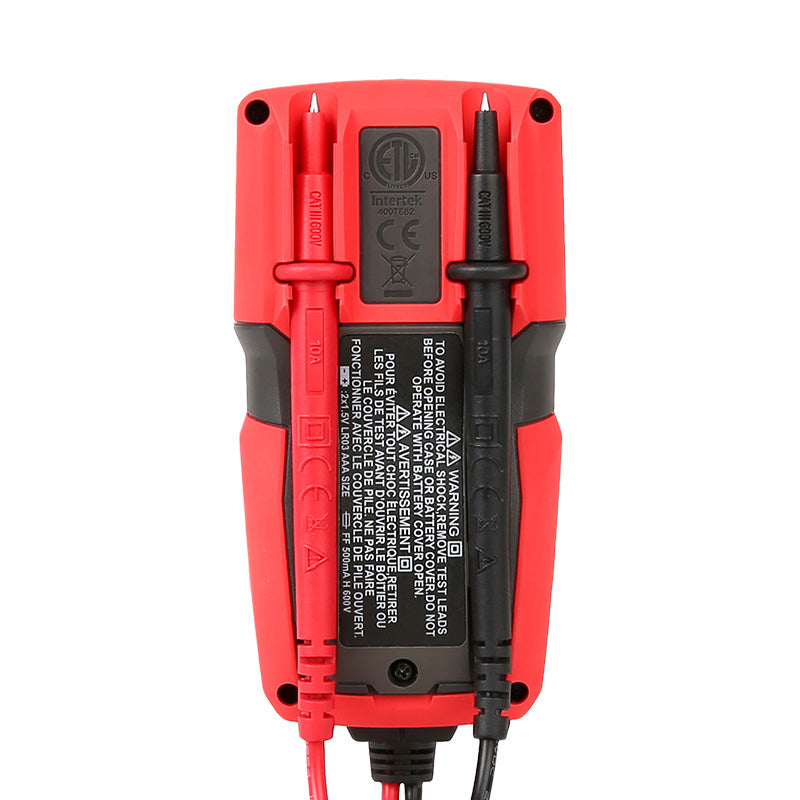

Power supply: 2 x AAA 1.5 V battery (included)
Weight: approx. 180 g (including batteries)
Operating temperature: 0 - 50°C

Manufacturer: UNI-TREND
