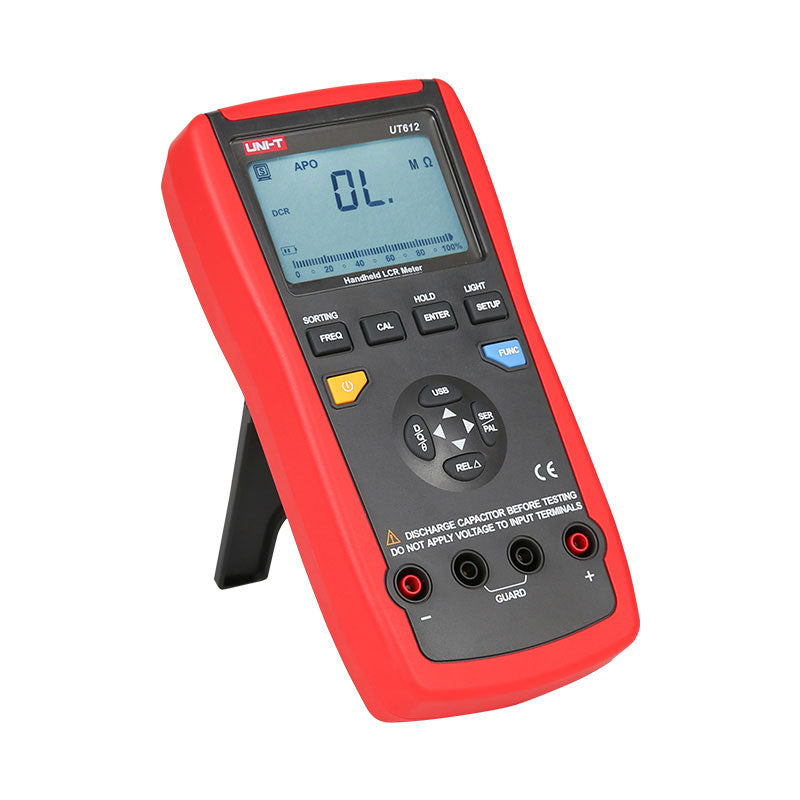

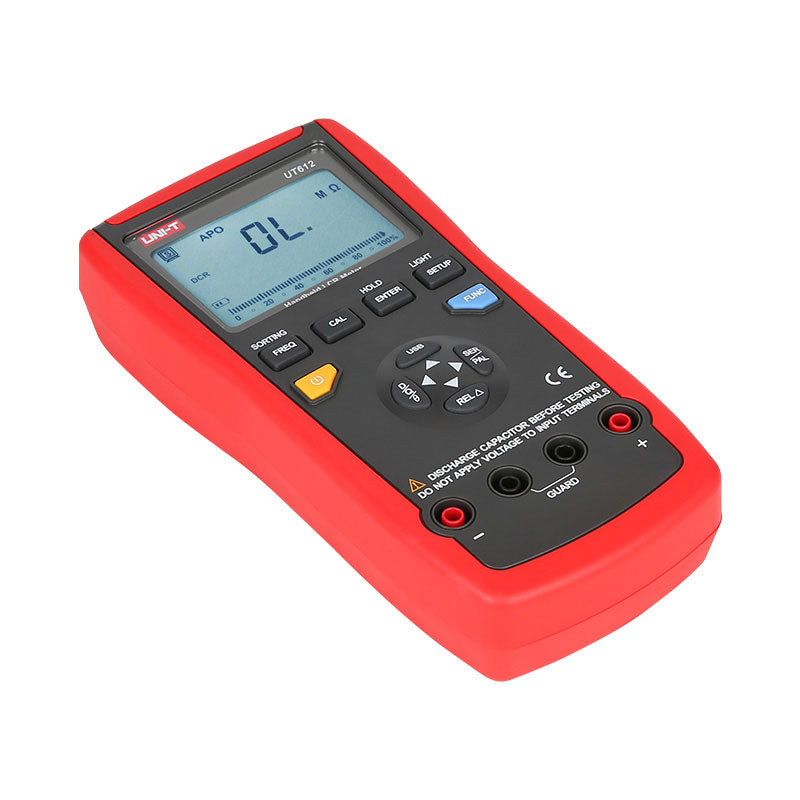

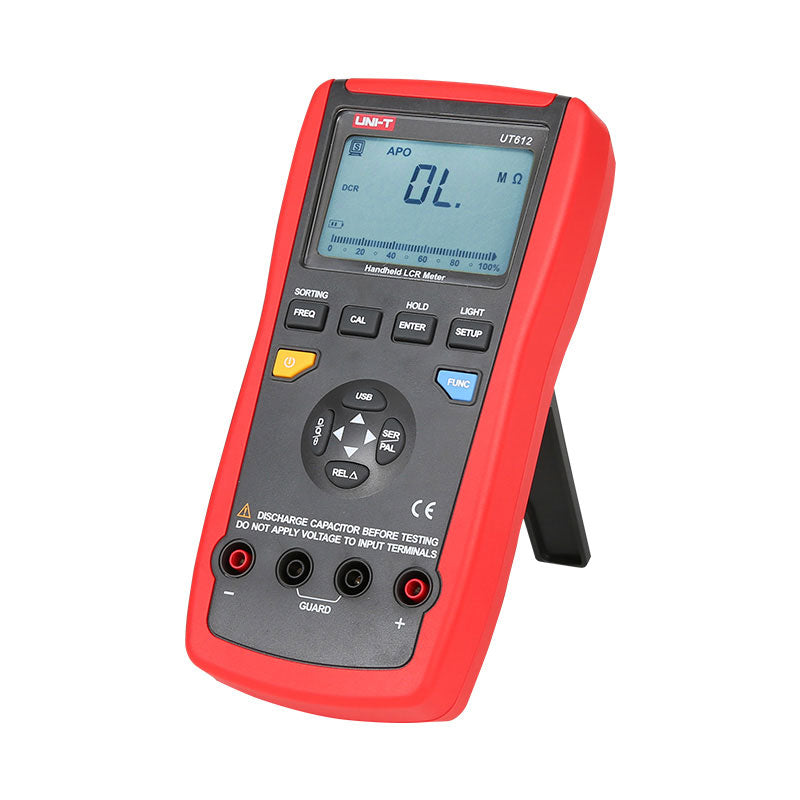

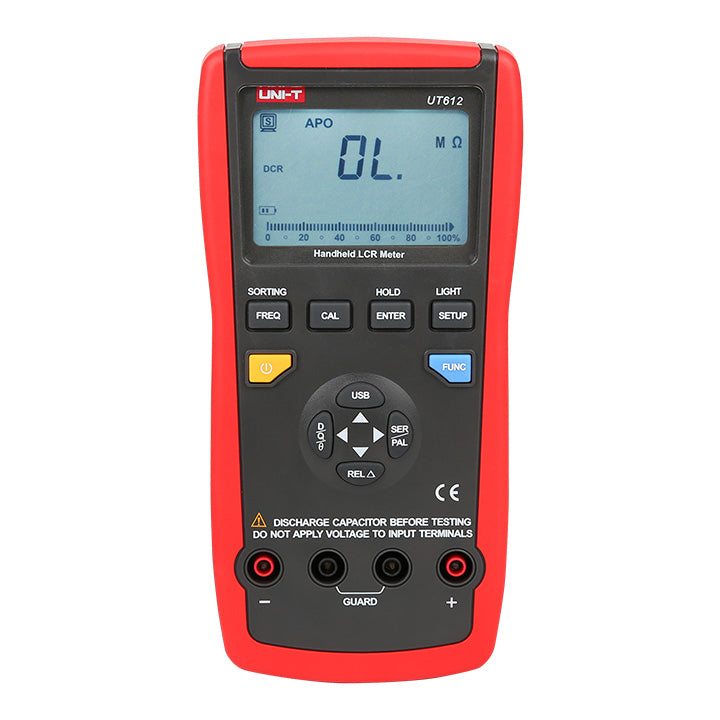

Multimeter UNI-T UT612 RLC, USB, automat

This product comes with a 3-year warranty.

LCR-meter UT612

Inductance: 20 mH ~ 2000H (±0.5%+5)
Capacitance: 200 pF ~ 20 mF (±0.5%+5)
Resistance: 20Ohm ~ 200 MOhm (±0.3%+5)
Test frequency: 100Hz / 120Hz / 1kHz / 10kHz / 100kHz
Operation voltage: 0.6 VRMS
Test parameters: L/C/R/DCR/Q/D/?/ESR

FEATURES:
• Display count 19999
• D/Q display count 1999
• D/Q resolution 0.001
• Auto range
• Real-time display test frequency
• Measurement mode: series/parallel
• Auto power off
• Low battery indication
• Data Hold
• Relative mode
• USB interface
• USB interface / PC data records 60000
• LCD backlight
• Analogue Bar Graph 26
• Deviation ratio measurement
• Screening function
• Calibration function
• Output impedance 120Ohm
• Auto LCR smart check and measurement

GENERAL CHARACTERISTICS:
Power supply: 9V battery (6F22) or USB
LCD size: 40 mm x 63 mm
Weight: 374 g
Product size: 96mm × 193mm × 74mm

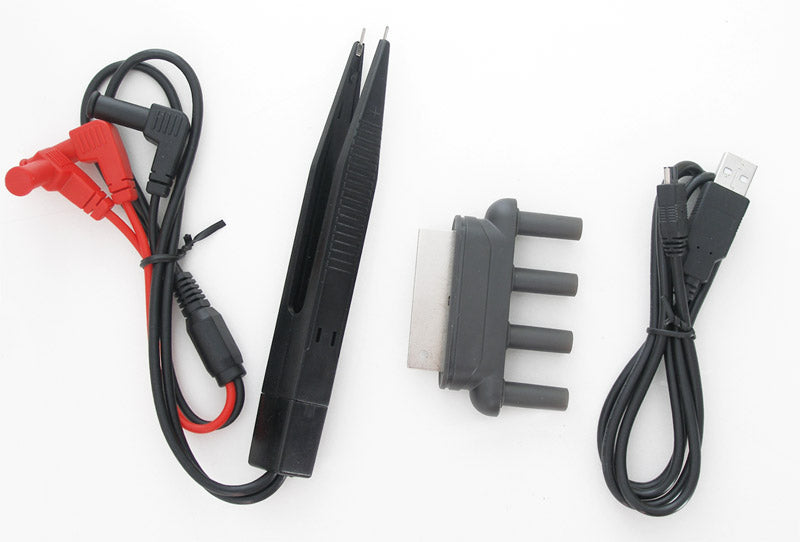

Standard accessories: battery, SMD test clamp, USB interface cable, PC software CD, multi-purpose socket, Short circuit slice
