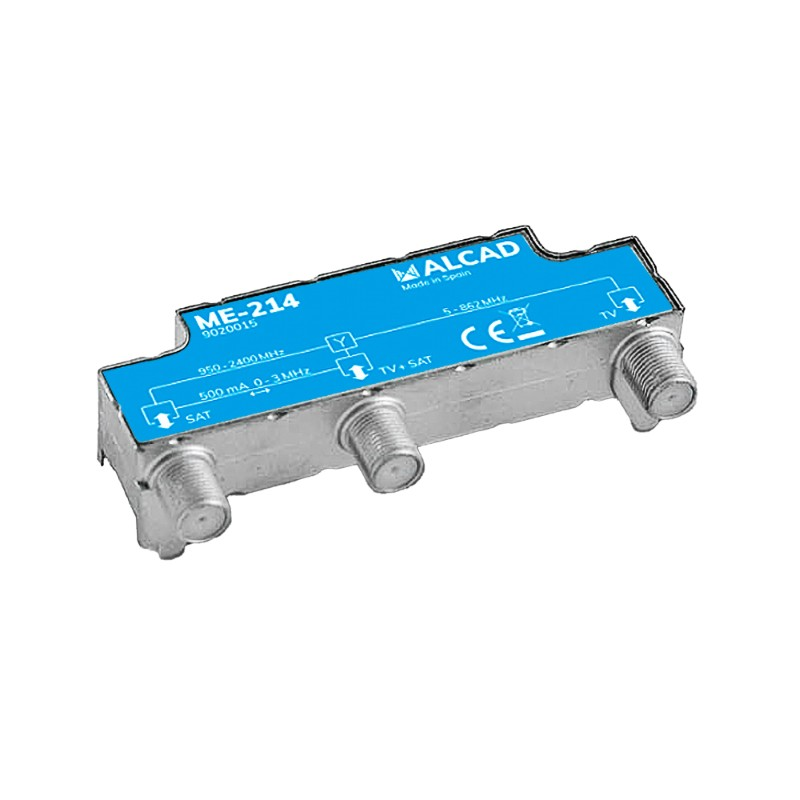

Multiplexer ALCAD AI-ME-214
TV/SAT multiplexer - 2 vstupy, frekvenční rozsah FM/TV 5–862MHz a SAT 930–2400MHz, útlum 1,0dB ±0,5dB, izolace mezi vstupy ?35dB, maximální proud 500mA, sloučení pozemního TV/FM a satelitního IF signálu do jednoho koaxiálního kabelu, použití také jako oddělovač signálů, kompatibilní s F konektory pro koaxiální kabel O6,6 mm a O7,0 mm
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
ALCAD | SKU:
14430918
Multiplexer ALCAD AI-ME-214
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Multiplexer combining terrestrial TV and FM radio signals with satellite IF signal from LNB. The resulting signal is distributed over a single coaxial cable. It can also be used as a splitter for terrestrial TV and satellite IF signals coming from a single cable.
Application:
Diversified satellite and terrestrial TV installations. Used to combine signals after amplification at the beginning of the installation or as a splitter for distributing terrestrial TV and satellite signals to different points.
Accessories:
9120039 CM-004 F connector (male) for coaxial cable O6.6 mm. 9080023 MC-302 F connector (male) for coaxial cable O7.0 mm.
Technical parameters:
Inputs: x2
Frequency range: 5 – 862 MHz FM/TV; 930 – 2400 MHz SAT
Attenuation: 1.0 dB +/- 0.5
Isolation between inputs: >=35 dB
Maximum current: 500 mA (SAT)
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
Application:
Diversified satellite and terrestrial TV installations. Used to combine signals after amplification at the beginning of the installation or as a splitter for distributing terrestrial TV and satellite signals to different points.
Accessories:
9120039 CM-004 F connector (male) for coaxial cable O6.6 mm. 9080023 MC-302 F connector (male) for coaxial cable O7.0 mm.
Technical parameters:
Inputs: x2
Frequency range: 5 – 862 MHz FM/TV; 930 – 2400 MHz SAT
Attenuation: 1.0 dB +/- 0.5
Isolation between inputs: >=35 dB
Maximum current: 500 mA (SAT)
Operating temperature: -10 ~ 65 degrees C
Protection class: IP53
