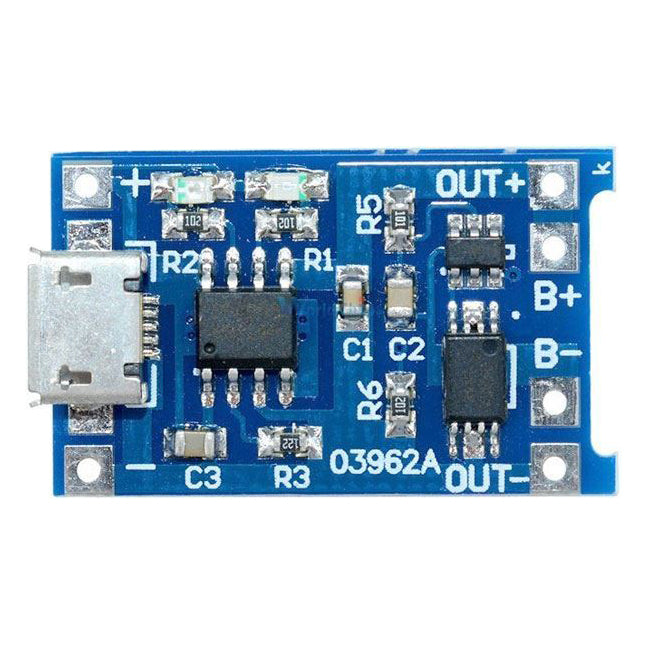

Charger Li-Ion Article 1A protection, module with IO TP4056 (micro USB)
Nabíjecí modul Li-Ion - nabíjecí proud až 1A (nastavitelný 130mA–1A změnou odporu Rprog), napájení přes Micro USB, nabíjecí napětí 4,2V, rekondicionační nabíjení proudem 130mA při napětí článku pod 2,9V, ochrana proti nadměrnému vybití (odpojení pod 2,4V, opětovné připojení při 3V), nadproudová a zkratová ochrana, LED indikace stavu (červená = nabíjení, modrá = nabito), vhodný pro 1–2 Li-Ion články 3,6V
Will be restocked
Expected shipping:
10.08.2026
at our place
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830149
Charger Li-Ion Article 1A protection, module with IO TP4056 (micro ...
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
Product description

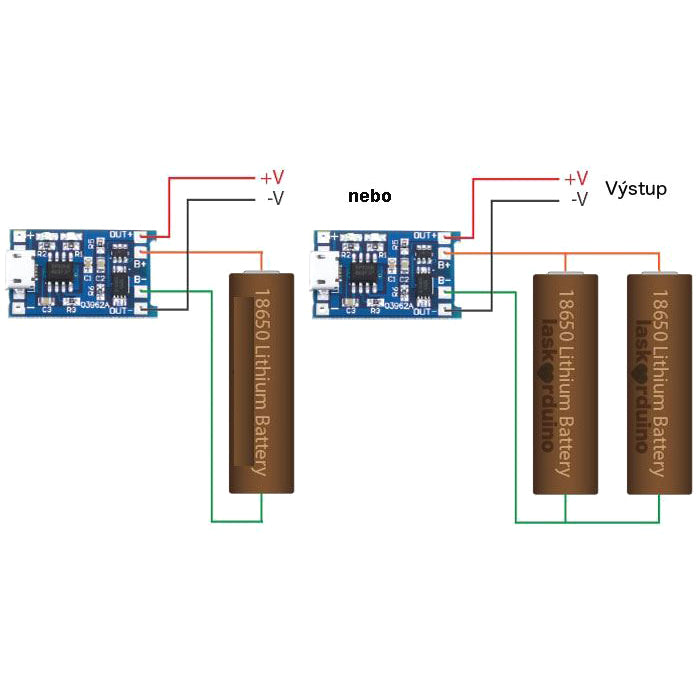

The charger is designed for charging 1-2 lithium cells with a voltage of 3.6V with a constant current of 1A up to a voltage of 4.2V, which it then maintains on the poles of the cell.
Product parameters:
- constant current charging. By changing the resistance Rprog-viz. Datasheet current can be changed in the range of 130mA-1A
- end of charging after reaching the terminal voltage of the cell 4.2V
- reconditioning charging with 130mA current if the cell terminal voltage level is <2.9V. When this voltage is reached, the module charges with a rated current of up to 1A

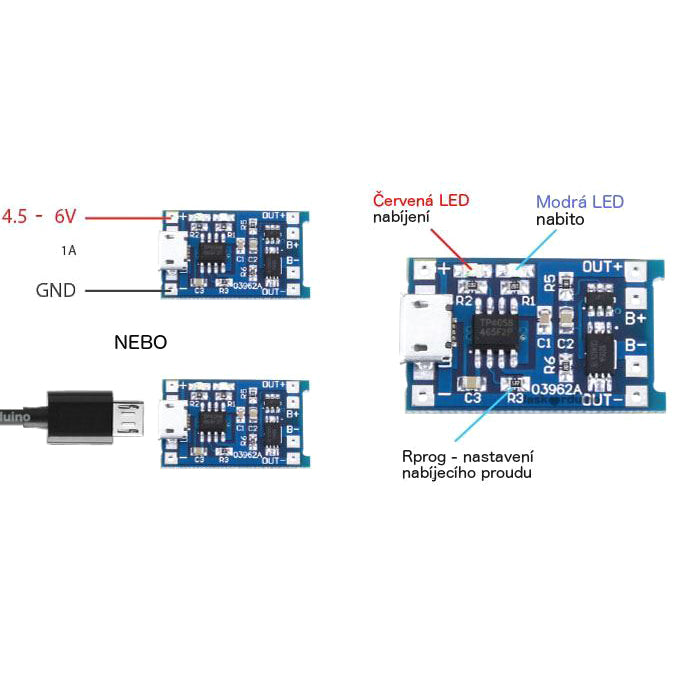

- optical check of charge status. The red LED indicates charging, the blue LED indicates charging is complete
- protection against excessive discharge. When discharging, it disconnects the cell from the appliance at a terminal voltage <2.4V and reconnects it when Ubat> 3V is reached. Charging of such a discharged cell is possible
- overcurrent and short-circuit protection at discharge current> 3A
Technical parameters:

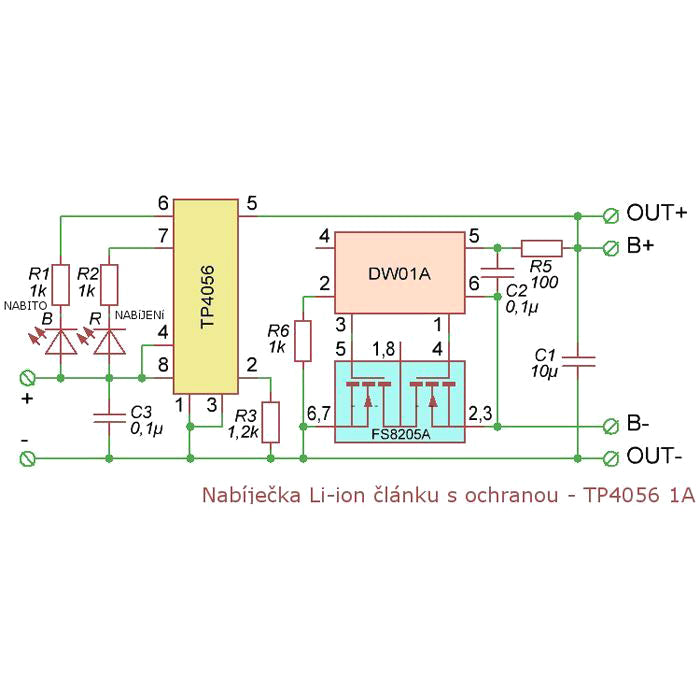

- IC TP0456 + DW01A, MOSFET FS8205A
- charging method: CC / CV
- input voltage: 4.5–6V
- input connector: micro USB
- charging current 1A (by changing the resistance it is possible to set 130mA-1A)
- end of charging: 4.2V
- reconditioning charging at <2.9V
- protection against excessive discharge, excessive current and short circuit
- dimensions 17 × 28mm / 1.6g
The product is not a stand-alone unit, it requires professional installation.
