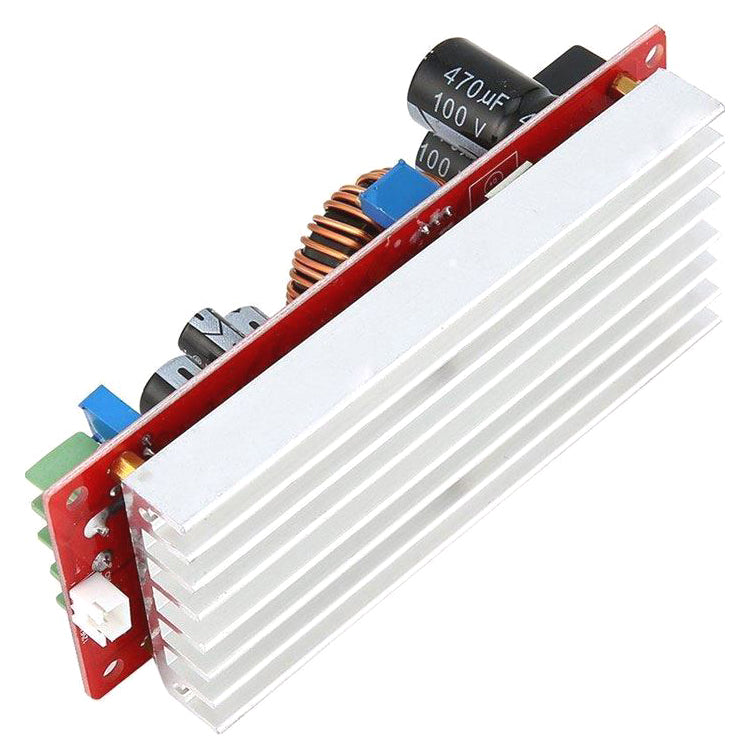

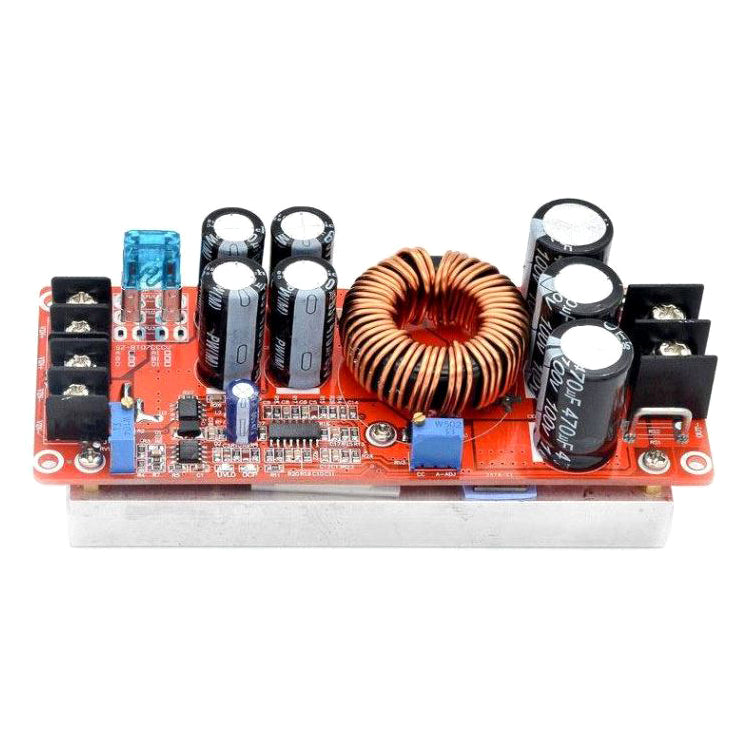

Power supply module, step-up converter CV/CC 1200W /DC-DC charger
Step-up měnič DC-DC - neizolovaný impulsní boost konvertor, vstupní napětí 10–60V, výstupní napětí 12–75V nastavitelné, výstupní proud 0,3–12A (až 20A s ventilátorem), výstupní výkon max. 1200W, vstupní proud max. 20A, ochranné pojistky 2 × 15A na vstupu, nastavitelná ochrana proti podpětí 9–50V, výstup 12V pro ventilátor, proud naprázdno 15mA, určen pro připojení druhé baterie ve vozech s chytrým alternátorem
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
299,00 Kč
247,11 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830254
Power supply module, step-up converter CV/CC 1200W /DC-DC charger
Regular price
299,00 Kč
247,11 Kč
excl. VAT
Unit price
/
Unavailable
Product description

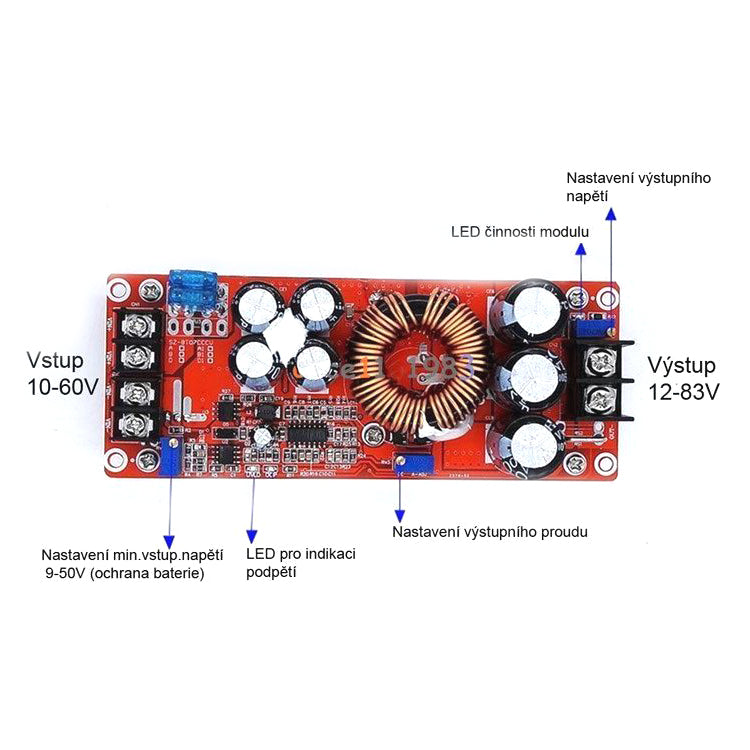

Non-isolated step-up DC-DC pulse converter 10–60V / 12–75V with setting of output voltage 12–75V, current limit 0–20A and minimum input voltage 9–50V for battery protection. The excess of the battery protection voltage setting (> 9V, where Uvst> 10V) is given by the uvst / uvster hysteresis. Fixed voltage 12V for possible fan connection. Its function is predestined for connecting the second battery to cars with a smart alternator, where direct connection of a parallel battery is not possible.
Technical parameters :
- input voltage 10 - 60 V
- input current max. 20 A
- output voltage 12 - 75V adjustable
- output current: 0.3 - 12 A (20 A with fan)
- output power max. 1200 W
- input protection fuses-2 × 15A
- no-load current type.15mA
- 12 V output for fan
- undervoltage protection setting: 9–50 V (to charge the external battery, set so that the module is active after starting the vehicle)
- efficiency 95%
- dimensions 130 × 52 × 46 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters :
- input voltage 10 - 60 V
- input current max. 20 A
- output voltage 12 - 75V adjustable
- output current: 0.3 - 12 A (20 A with fan)
- output power max. 1200 W
- input protection fuses-2 × 15A
- no-load current type.15mA
- 12 V output for fan
- undervoltage protection setting: 9–50 V (to charge the external battery, set so that the module is active after starting the vehicle)
- efficiency 95%
- dimensions 130 × 52 × 46 mm
The product is not a stand-alone unit, it requires professional installation.
