Power supply module, step-up converter CV/CC 600W
Step-up měnič DC-DC - neizolovaný impulsní boost konvertor, vstupní napětí 12–60V (jumperem 9–16V), výstupní napětí 12–80V nastavitelné, výstupní proud 0,1–10A (špičkově 12A), výstupní výkon max. 600W, vstupní proud max. 12A, pojistka 20A na vstupu, spínací frekvence 150kHz, účinnost 95 %, rozměry 76 × 60 × 56 mm, vyžaduje odbornou montáž
Will be restocked
Expected shipping:
10.08.2026
at our place
Regular price
260,00 Kč
214,88 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830255
Power supply module, step-up converter CV/CC 600W
Regular price
260,00 Kč
214,88 Kč
excl. VAT
Unit price
/
Unavailable
Product description

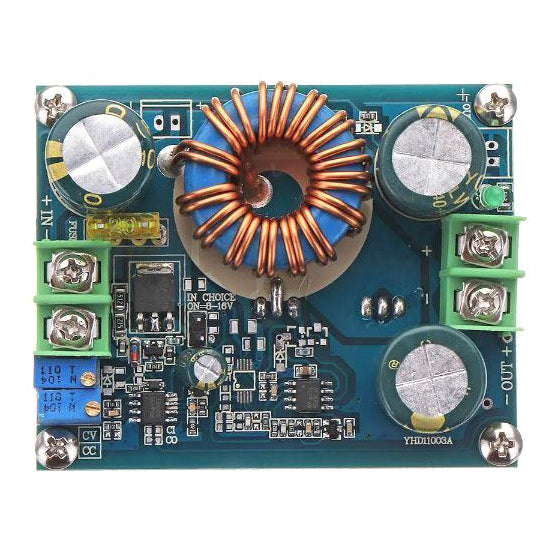

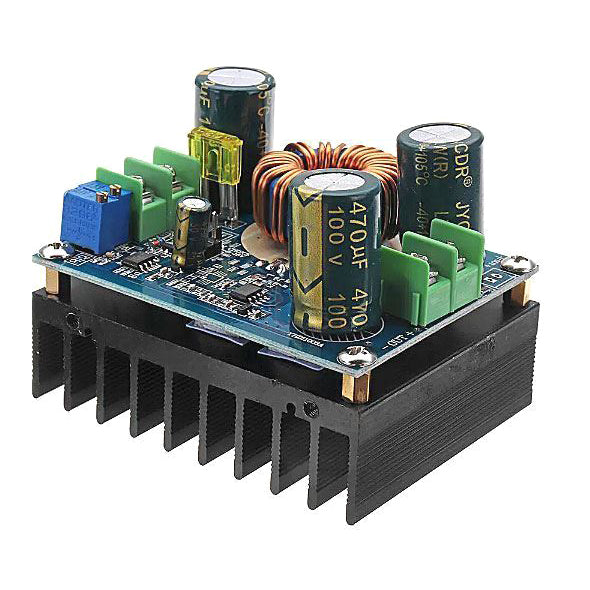

Pulse non-isolated step-up converter DC-DC 10–60V / 12–80V with output voltage setting 12–80V, current limit 0–12A.
Technical parameters :

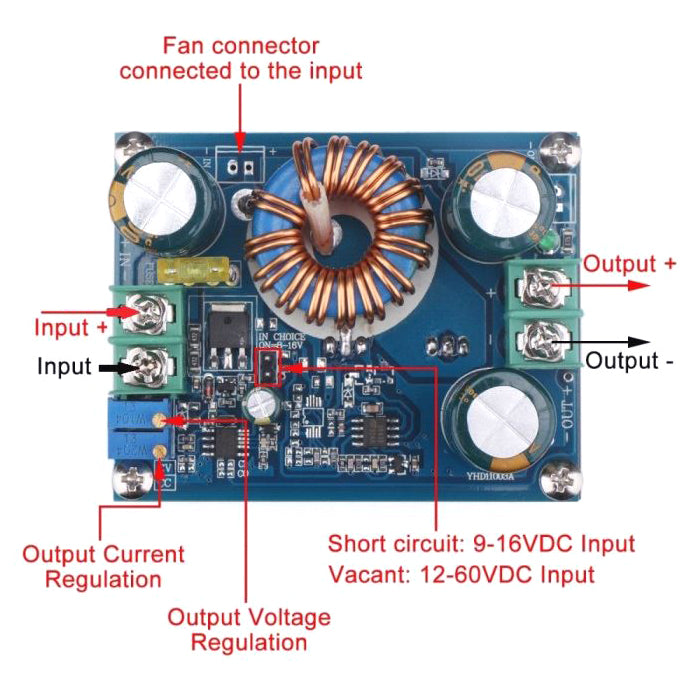

- input voltage 12–60 V (by shorting the jumper 9 - 16 V)
- input current max.12 A
- output voltage 12 - 80 V adjustable
- output current: 0.1-10 A (peak 12A)
- output power max. 600 W
- protection fuses on input-20A
- frequency 150 kHz
- efficiency 95%

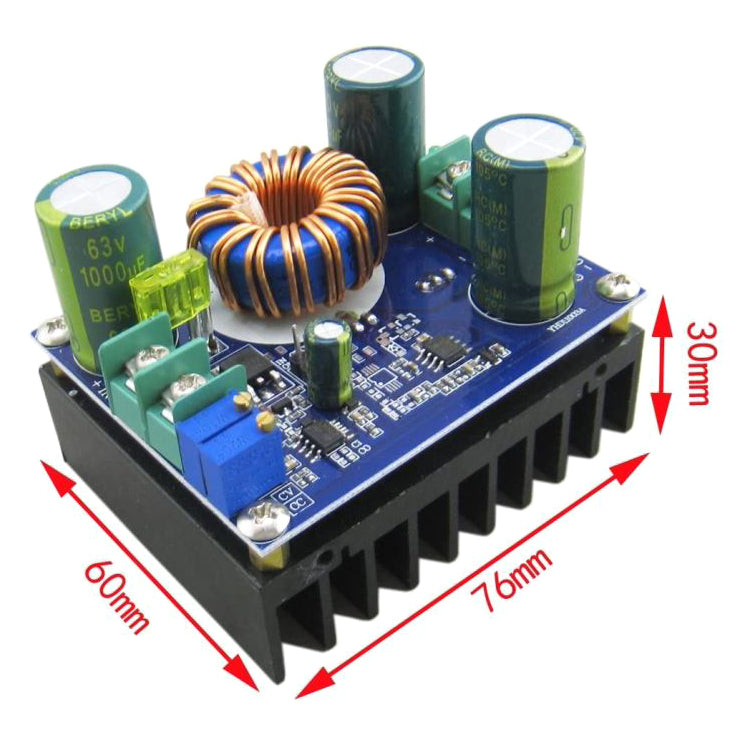

- dimensions: 76 × 60 × 56 mm
The product is not a stand-alone unit, it requires professional installation.
