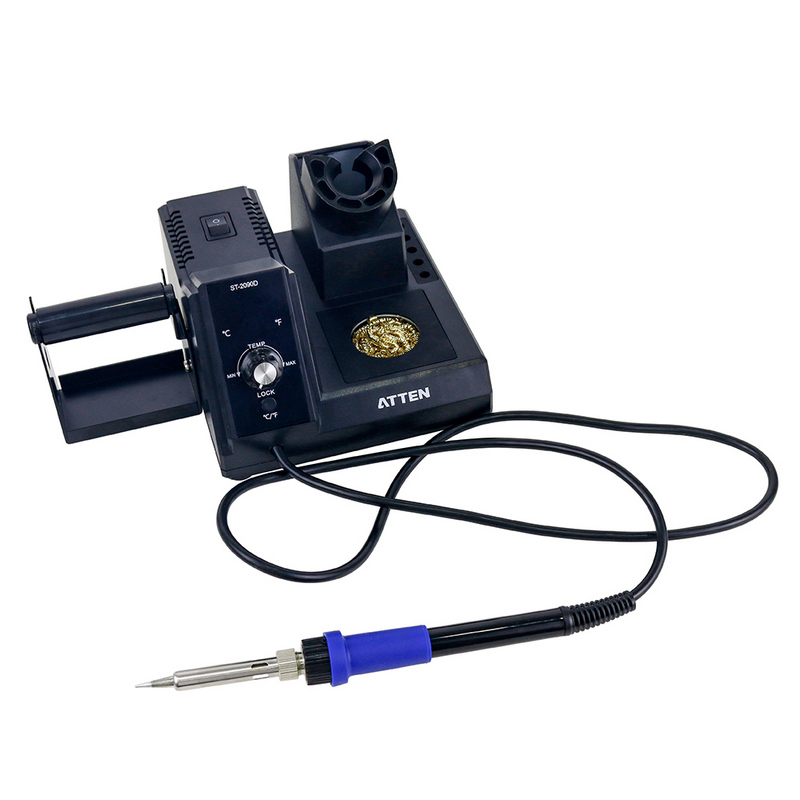

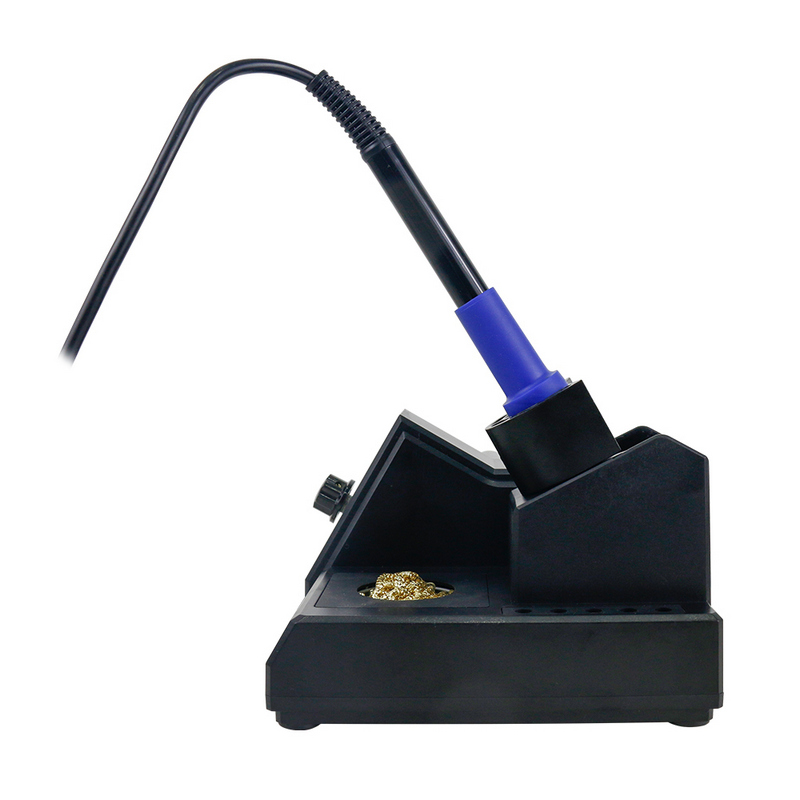

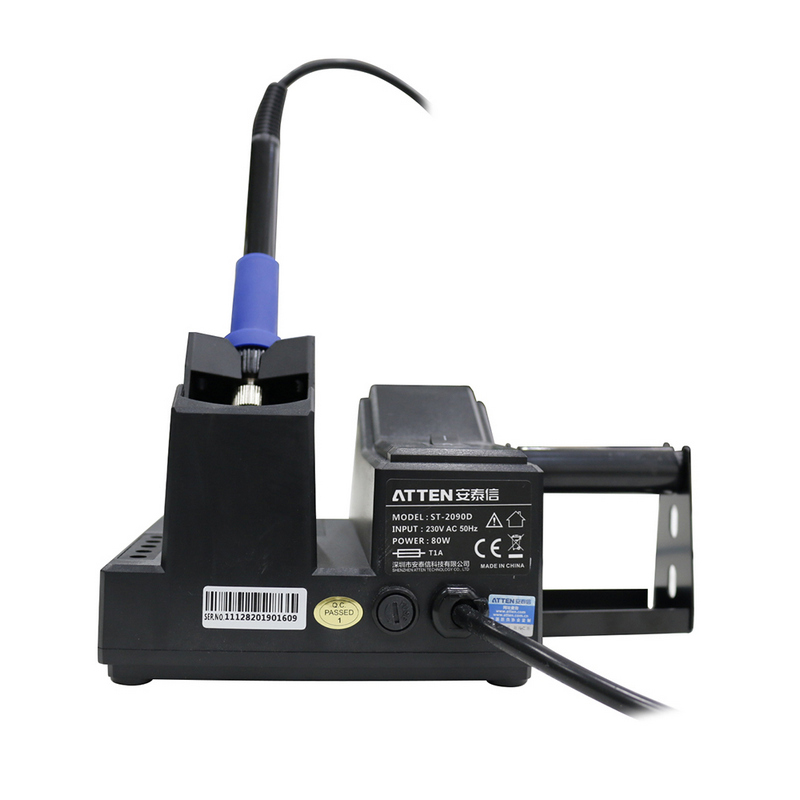

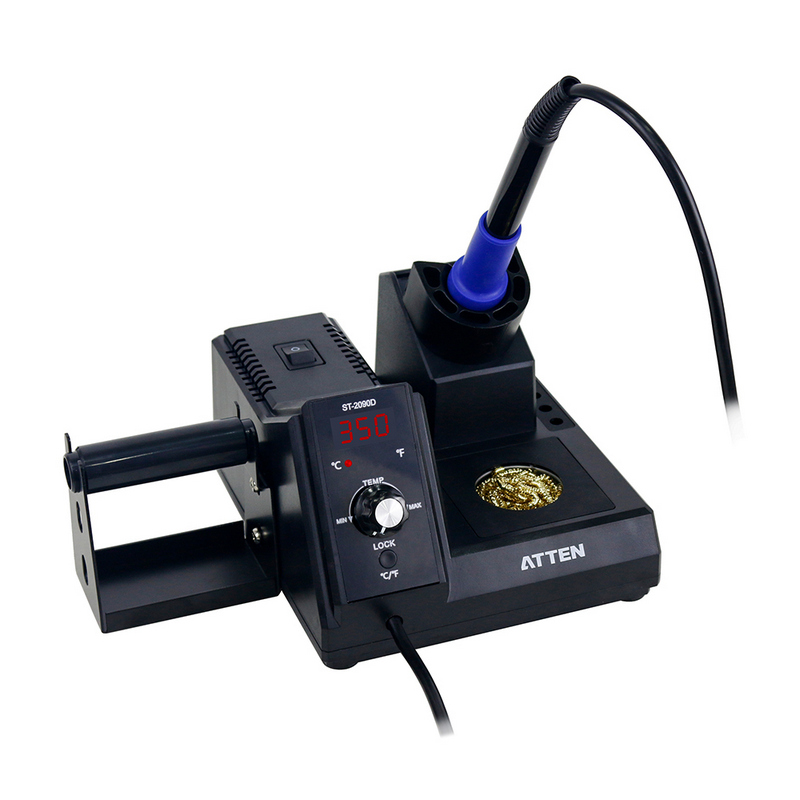

Soldering station ATTEN ST-2090D

The ATTEN ST-2090D soldering station is a reliable and accurate digital soldering station designed for service work, assembly, small electronics and hobby use. Temperature calibration controlled by MCU with PID system, electronic temperature control via knob, easy operation. The user can easily change the tips according to the type of solder joint, which increases the versatility of the station. Ergonomic soldering handle minimizes fatigue during prolonged use. The heating element with fast temperature rise ensures smooth work without unnecessary delays. There is an automatic switchover to standby mode and automatic shutdown. Electronic temperature control by means of a knob, with the possibility of locking the settings (so-called "lock" function) against unwanted changes.
The soldering station is designed for soldering with an adjustable tip temperature ranging from 80°C to 480°C and is suitable for fine electronics work - soldering SMD and classic pin components, board repair, servicing small devices, basting and prototyping in the home workshop, school and hobby electronic projects.
Long life ceramic heating element, microprocessor controlled temperature calibration. Interchangeable tips from the T900 series.


Product parameters:

- Temperature adjustment via rotary knob
- fast heating and stable maintenance of the working temperature
- Temperature setting from 80 to 480°C
- possibility of locking the set temperature (so-called "lock" function) against unwanted change
- ergonomic and lightweight soldering handle
- integrated soldering iron stand and soldering coil holder - all together for convenient use
- stand with wire ball
- easy tip change
- Simple operation, user-friendly control
- Suitable for fine electronic work and routine repairs


Technical parameters:

- power supply : 220 - 240V AC / 50Hz
- power consumption : 80 W
- temperature range : 80°C to 480°C
- heating element: HS-2065A
- T900 series replaceable tips
- Dimensions (L×W×H): 220 × 220 × 140 mm
- weight: 1.2 kg

Package contents:
- Soldering station
- T900 tip
- soldering iron stand
- power cord
