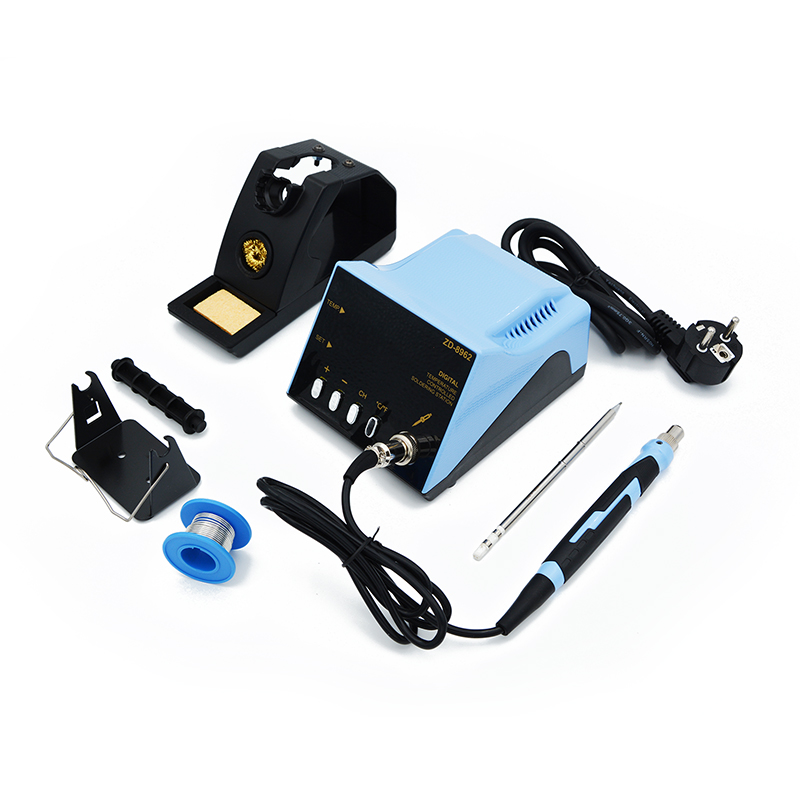

Soldering station ZD-8962

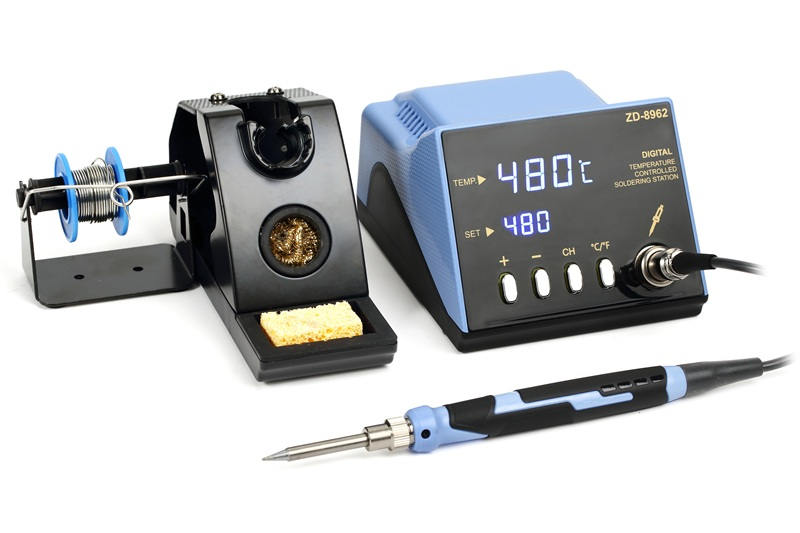

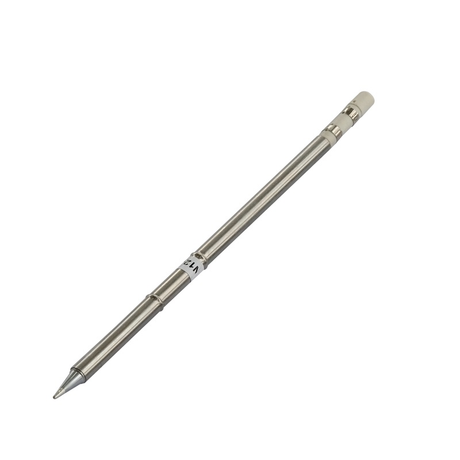

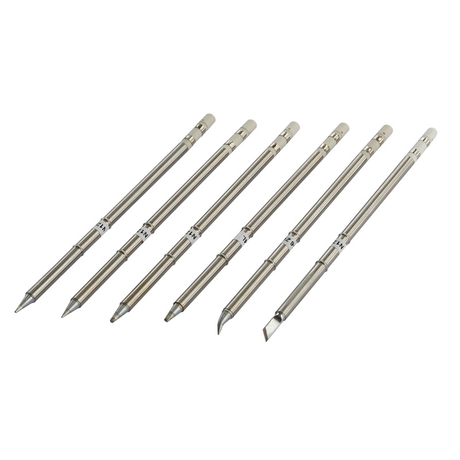

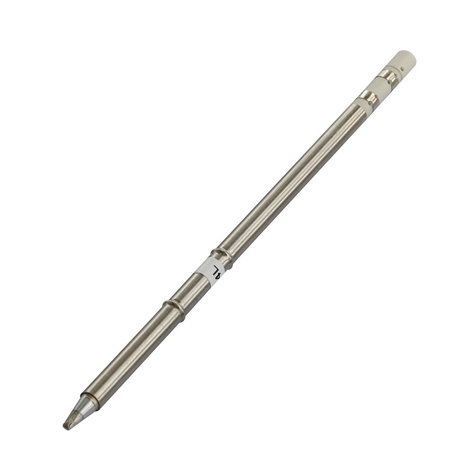

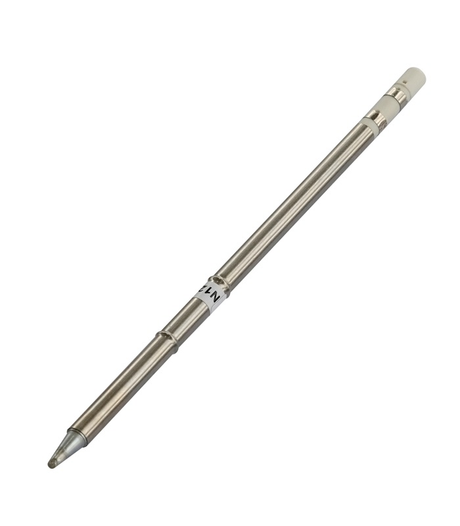

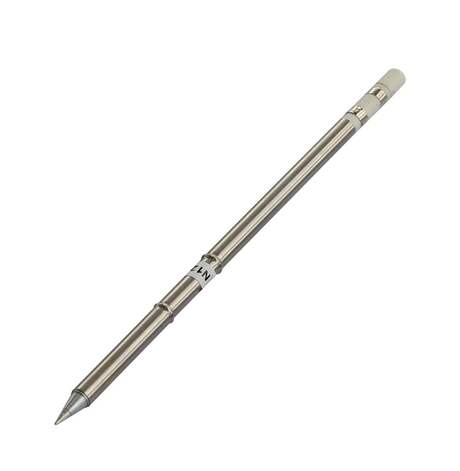

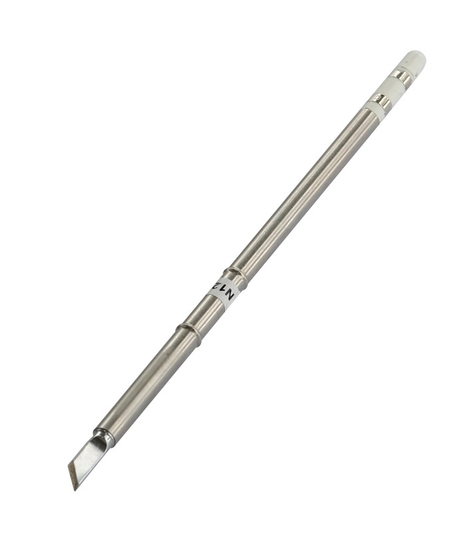

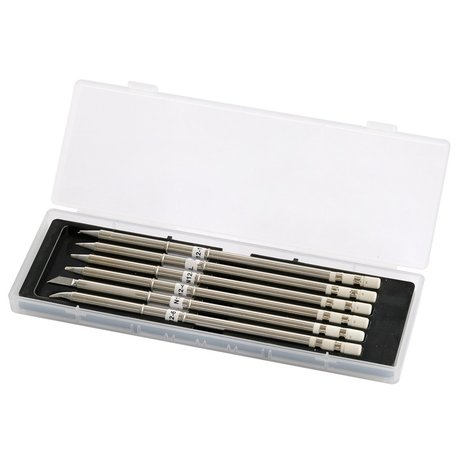

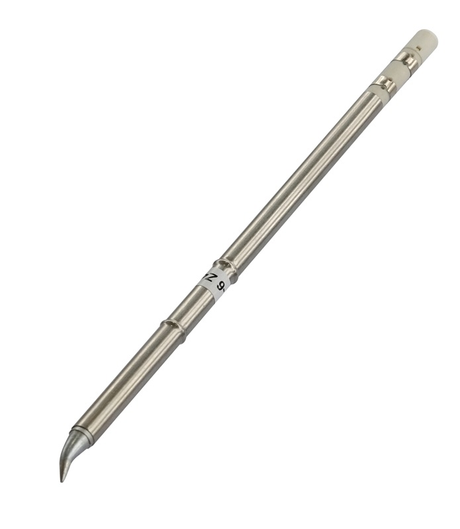

The ZD-8962 soldering station (micro soldering iron) is designed for lead-free soldering with an adjustable tip temperature in the range of 160 to 480°C and is suitable for delicate work in electronics. The LED display of the station digitally displays the set and current working temperature of the soldering tip, which can be precisely adjusted. Fast heating within 8 seconds and 70 W power with a temperature range of 160 °C–480 °C. Ergonomic design with a flexible silicone cable and a stand for safe storage. Interchangeable tips from the TIP N12-1 to TIP N12-6 series. A copper wire ball and cleaning sponge are supplied for cleaning the tip.
The device is intended for use in the field of electronic research, schools and production, especially in the repair and soldering of electronic devices and telecommunications equipment


Product parameters:

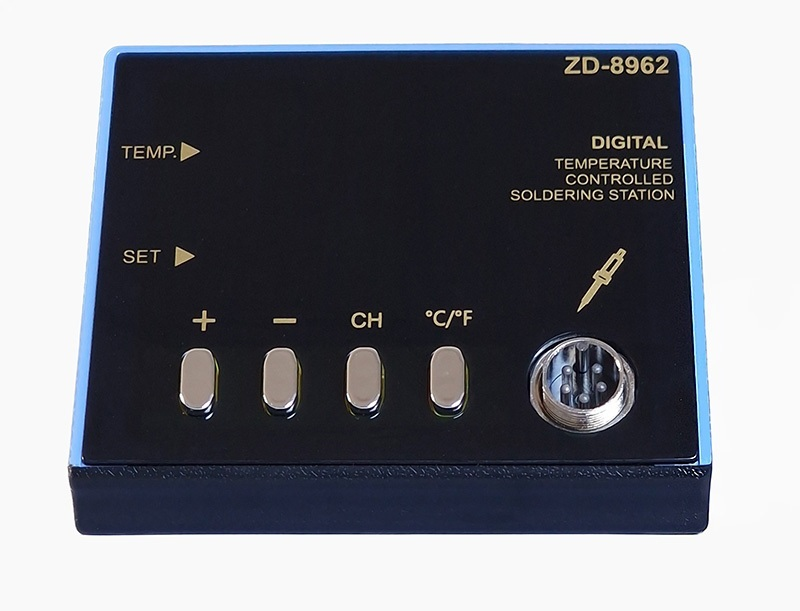

- LED display: double indicator showing the set and current temperature
- fast heating: ready to use within 8 seconds
- temperature setting in the range of 160 °C to 480 ° (320?- 896?)

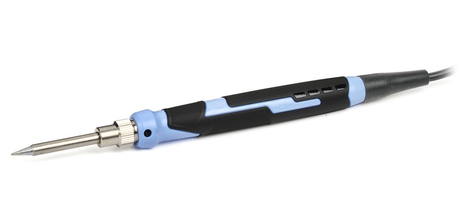

- ergonomic design: compact and lightweight soldering iron for easy handling
- integrated tip and heating element that is plug and play - easy to replace
- two-color temperature-resistant handle for comfortable grip
- integrated tip that heats up quickly and restores temperature
- automatic sleep mode: after about 10 minutes of inactivity, the temperature will be reduced to 200 °C
- flexible silicone cable - softer and heat-resistant

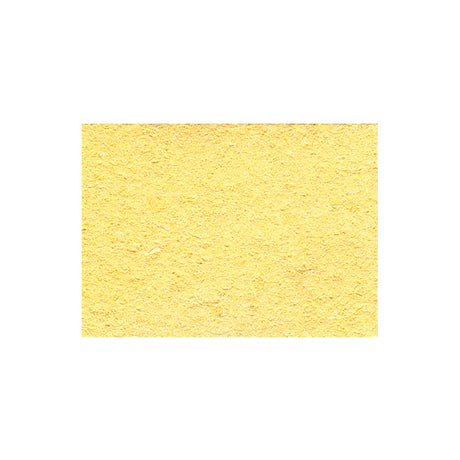

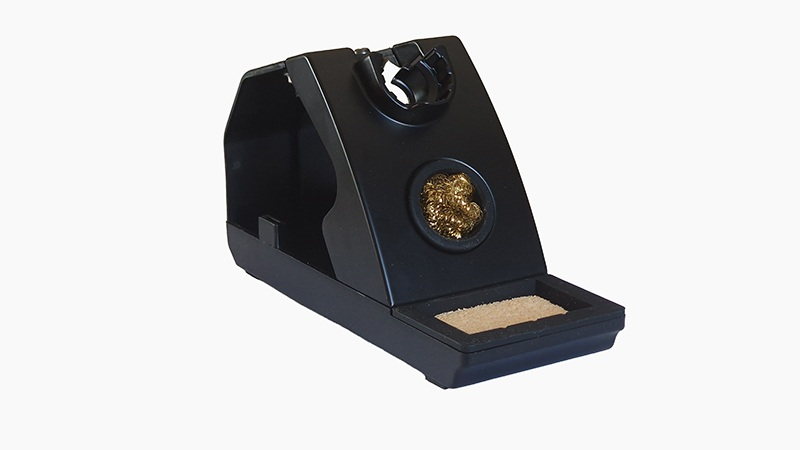

- soldering iron stand + cleaning sponge and tip cleaner for easy cleaning of the tip during work
- settings temperature using buttons
- possibility of presetting thermal values ??using the CH button
- switching °C / °F


Technical parameters:

- power supply: 220 - 240 V AC / 50Hz
- nominal power consumption: 70 W
- temperature range: 160 to 480 °C
- soldering tip power supply: 20V
- power cable length 1.3 m
