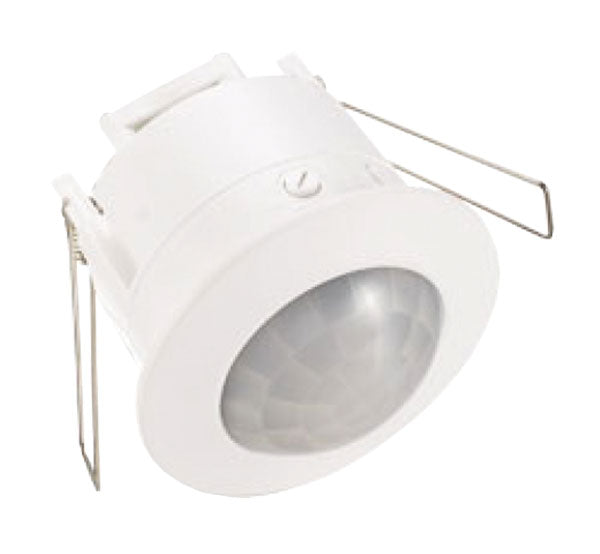

PIR sensor STARLUX ST41 ceiling-mounted for suspended ceilings

Motion sensor with light switch in ceiling-mounted version.
The sensor is equipped with circuits with high sensitivity of motion detection. The device monitors your chosen space and if in the evening
or if a person enters at night, the unit lights up. If it does not detect a person's movement, the device will turn off after a set period of time.
The sensor distinguishes between day and night illumination. Easy installation and wide detection range. It also complies with hygiene requirements, as there is no touch on
switch. They also save electricity because they only illuminate where people are moving (stairways, corridors, etc.).
Ceiling infrared switch (PIR ceiling motion sensor) to HD-741 ceiling


Product parameters:

- Possible day and night activity
- infinitely adjustable switching time
- Adjust the illumination level
- easy installation in suspended ceiling


Technical parameters:

- operating voltage: 220-240V AC / 50 Hz
- range - ideal height is 2.2 to 4m above the ground.
- detection angle (angle of view): 360° horizontally
- illumination level below which the device switches: approx. 3-2000Lux, continuously adjustable
- time to switch off after leaving the room: approx. 10 seconds - 7 minutes, continuously adjustable
- switched load max. 1200 W (inductive load + LED 200 W)
- operating temperature: -20 ~ +40°C
- operating humidity: < 93? RH
- detected movement speed: 0.6 ~ 1.5m/s
- dimensions: 76mm (lens cover diameter), 61.5mm (mounting hole diameter), 75.6mm (depth)
- indoor design, IP20 protection
- white design
