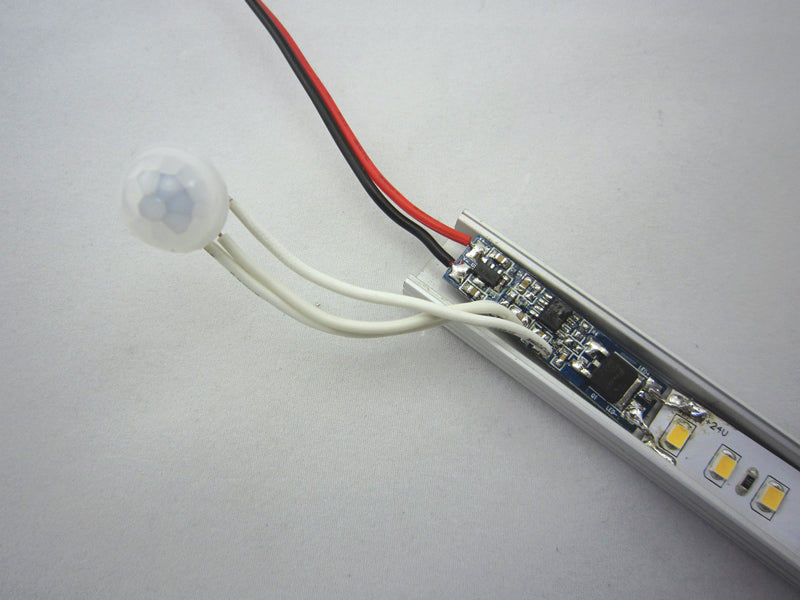

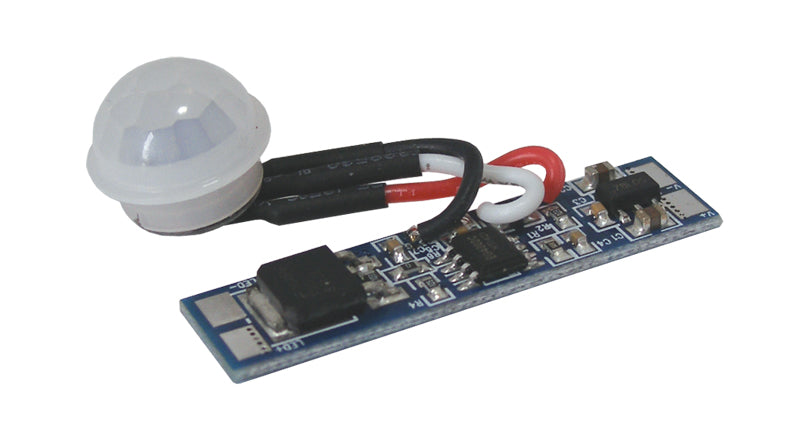

PIR sensor for Al profiles TIPA SW001

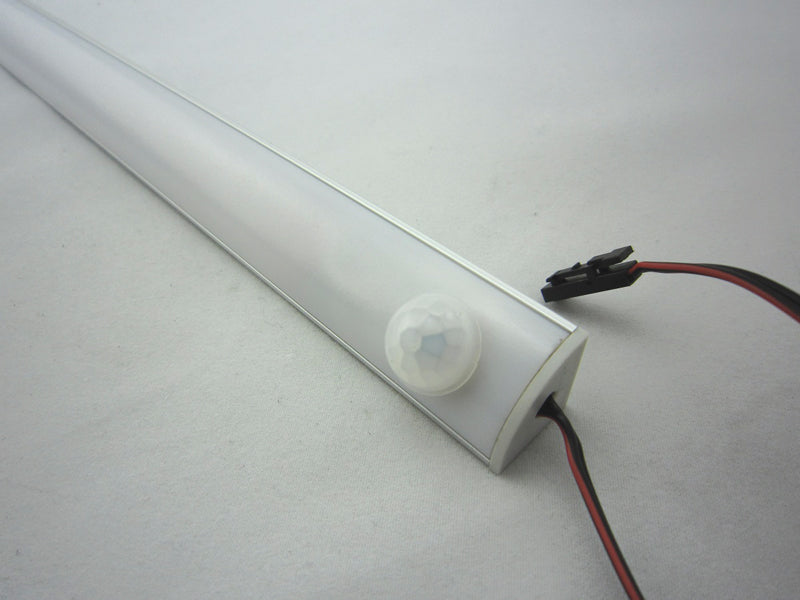

PIR Sensor is to be assembled into lighting fixtures, so the lighting fixture can automatically turn on when any part of human body is approaching within 2 meters from the sensor. The lighting fixture equipped with this PIR Sensor will stay on if the human body stays within 2 meters from the sensor. It will turn off in 40 seconds after human body move away more than 2 meters.

Installation Instructions:
Step I: Cut a 10.5mm hole at the fixture
Step II: Put the Detector Head into the 10.5mm hole
Step III: connector wires to the input end and output end of the control PCB.

Specifications:
Input voltage range: 12 - 24V DC
O detector: 14 mm
Max. Output Current: 10A
Hole Detector: 10.5 mm
Detection range: ? 2 m
PCB Dimensions: 43 x 10 x 6 mm
Trip Delay: ~ 40s
