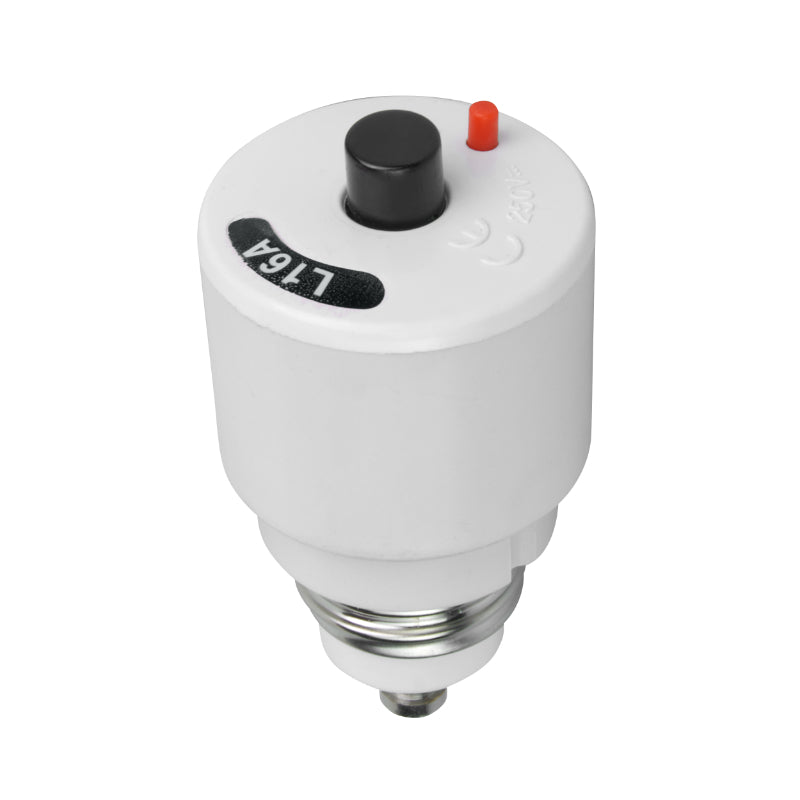

THORCEON L16 A reversible cartridge fuse

Reliable protection for electrical installations

Easy installation thanks to E27 threaded socket
The device is equipped with a standard E27 socket that allows quick and easy installation by screwing in, just like a light bulb. Installation requires no additional tools and its compact dimensions ( 82 mm x 41.4 mm ) make it easy to install even in tight spaces.

Trigger characteristic L
The WTA16A protector features an L tripping characteristic that ensures a fast and effective response to overcurrent. It is a reliable solution for protecting circuits with medium to high current loads.

Versatile application due to wide voltage range
The device supports a rated voltage of 250/380 V AC , making it versatile and compatible with a variety of electrical installations. It is the ideal choice for low-voltage circuits as well as for more demanding systems.

Intuitive control with reset function
The circuit breaker is equipped with a reset button , which allows the circuit to be quickly restored after the protection has been switched off.

Durability and reliability
With a maximum load of 16 A, this circuit breaker is ideal for protecting medium load circuits. Its robust design ensures long-term reliability even in heavily loaded installations.

Application:
Protection of electrical installations : Protection against overloads and short circuits in medium loaded circuits.
Quick and easy installation : Thanks to the E27 threaded socket, the socket can be easily installed in various locations.
Versatility : Suitable for installations with 250/380 V AC voltage.
Convenient reset : The button allows for a quick reset after pressing the trigger.

Specifications:

Type : Screw-type overcurrent circuit breaker.
Socket: E27
Trigger characteristic: L.
Rated voltage: AC 250/380 V
Maximum load: 16 A
Reset button: yes

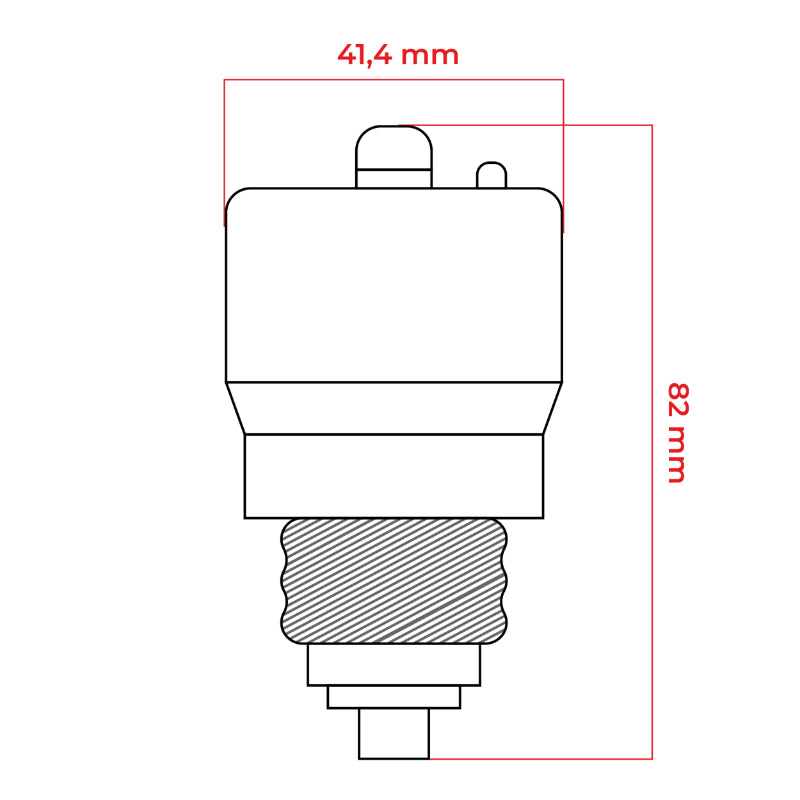

Dimensions: 82 mm x 41.4 mm
Protection rating: IP20
Colour: white
