PCB Helping Stand TIPA ZD-11ES

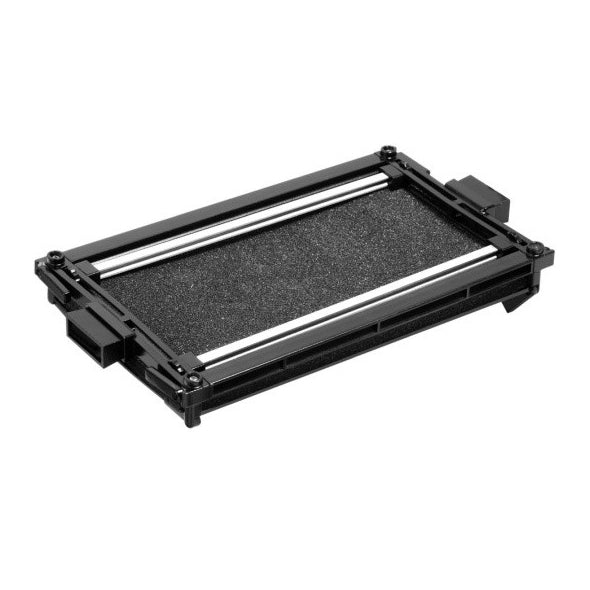

The ZD-11ES is an auxiliary stand designed for holding various types of printed circuit boards, which is ideal for soldering, repairs and other work. The moving parts are removable and can be removed and placed separately on the work surface. The adjustable crossbar is suitable for different sizes of printed circuit boards (maximum clamping dimension: 80 x 160 mm, thickness: 0.8 - 2.5 mm).

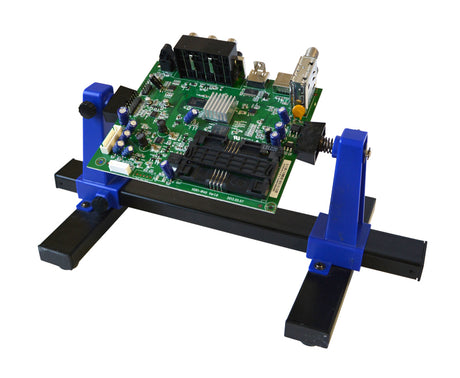

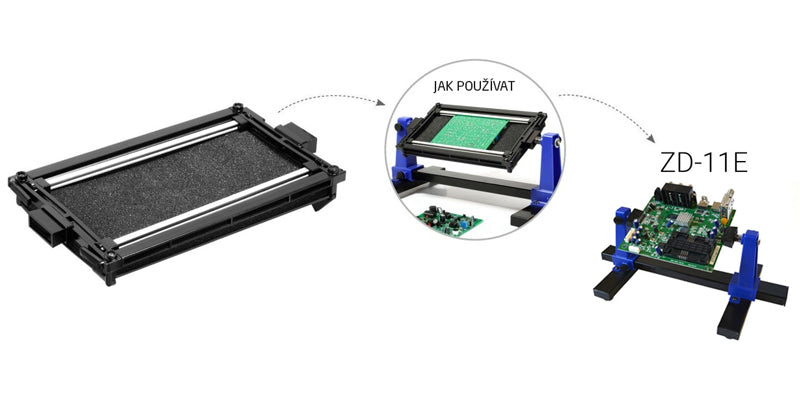

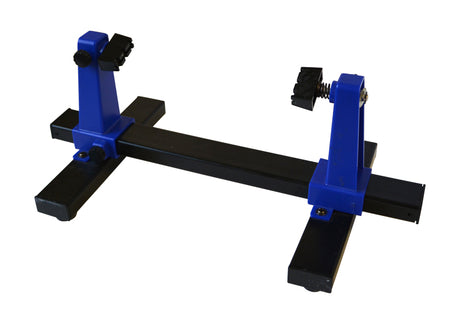

Suitable for use with PCB holder ZD-11E, with two sliding handles, rotatable by 360°, tilting up to 270°. Thanks to its versatile use (for example, mounting, removing components, repairing printed circuit boards), it is the optimal accessory for everyone's electronics.


Product parameters:

- strong and durable:
the stand is made of anti-static material and aluminum alloy with high strength and stability. It is able to hold printed circuit boards of different weights and is heat resistant, which allows work at high temperatures.

- adjustable:
the slider can be moved up and down and fixed according to the PCB size.

- anti-slip:
it is equipped with silicone feet with anti-slip treatment, which ensure stability and secure attachment.

- user friendly:
compact and simple design, light weight, easy to use, no complicated tools or procedures required.

Using the stand:
- stand placement: place the auxiliary stand on a flat surface
- slider adjustment: based on the size and shape of the printed circuit board, move the slider so that the printed circuit board is firmly fixed in the rack
- fixing the printed circuit board: insert the printed circuit board into the stand and tighten the sliding clamps.
