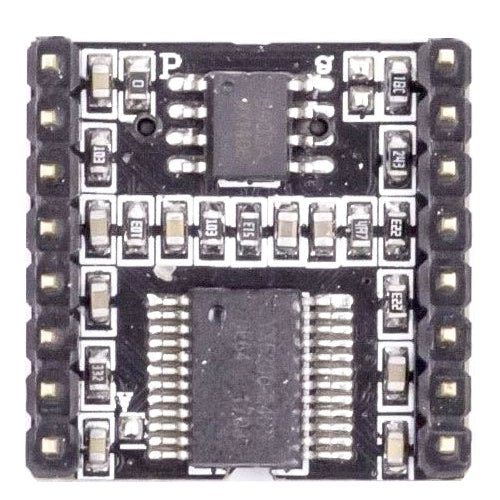

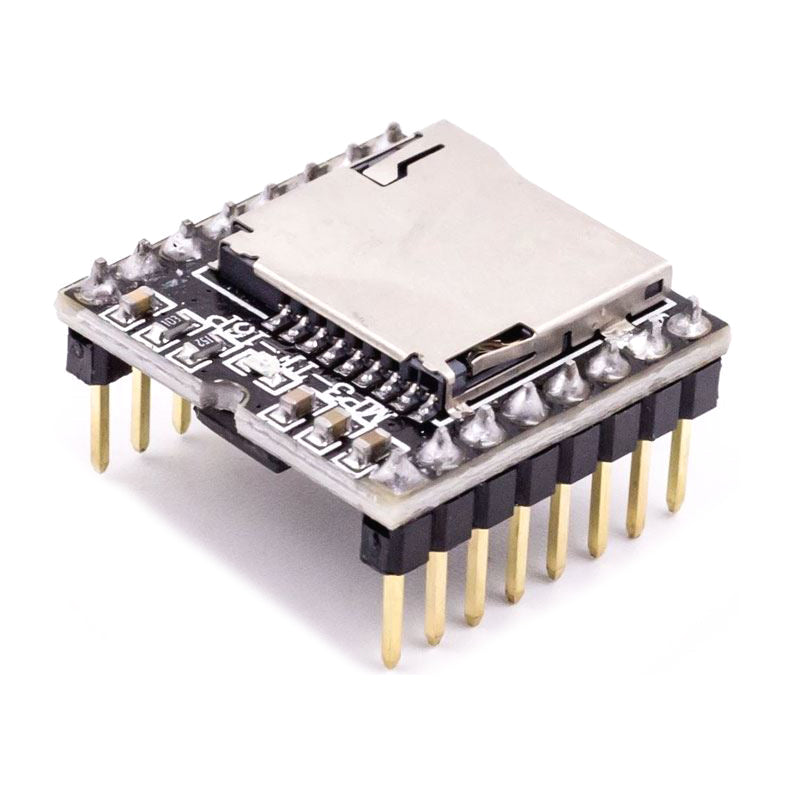

MP3 player mini MP3-TF-16P for Arduino
MP3 přehrávač modul - čip GD3200B, napájení 3,2–5V, integrovaný zesilovač 3W, podpora formátů MP3, WAV, WMA, čtečka microSD karet do 32 GB (FAT16, FAT32), 24bitový DAC, dynamický rozsah 90dB, SNR 85dB, vzorkovací frekvence 8–48kHz, 30 úrovní hlasitosti, 6 úrovní ekvalizéru, až 100 adresářů po 255 skladbách, rozhraní UART nebo tlačítka, rozměry 21 × 21 mm, určen pro Arduino
Will be restocked
Expected shipping:
17.06.2026
at our place
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830210
MP3 player mini MP3-TF-16P for Arduino
Regular price
59,00 Kč
48,76 Kč
excl. VAT
Unit price
/
Unavailable
Product description
MP3 player for Arduino, which can also work in autonomous mode. Including nf amplifier 3W. Micro SD card reader (max. 32GB).
Product parameters:
- GD3200B chip
- 3.2-5V power supply
- integrated 3W amplifier
- support for MP3, WAW, WMA formats
- microSD card support: FAT16, FAT32

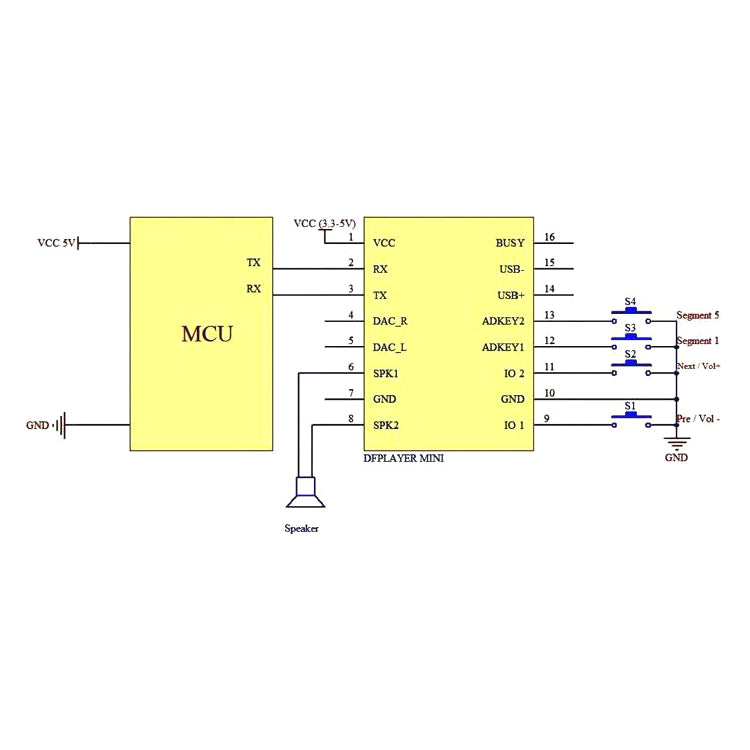

- data transfer via serial port (UART) or via buttons
- supported sampling frequencies (kHz): 8 / 11,025 / 12/16 / 22,05 / 24/32 / 44,1 / 48
- 24-bit DAC output, dynamic range 90dB, SNR 85dB support
- loads up to 100 directories, each of which can contain up to 255 songs
- volume in 30 degrees, 6 levels of equalizer
- dimensions 21 × 21mm
The product is not a stand-alone unit, it requires professional installation.
Product parameters:
- GD3200B chip
- 3.2-5V power supply
- integrated 3W amplifier
- support for MP3, WAW, WMA formats
- microSD card support: FAT16, FAT32
- data transfer via serial port (UART) or via buttons
- supported sampling frequencies (kHz): 8 / 11,025 / 12/16 / 22,05 / 24/32 / 44,1 / 48
- 24-bit DAC output, dynamic range 90dB, SNR 85dB support
- loads up to 100 directories, each of which can contain up to 255 songs
- volume in 30 degrees, 6 levels of equalizer
- dimensions 21 × 21mm
The product is not a stand-alone unit, it requires professional installation.
