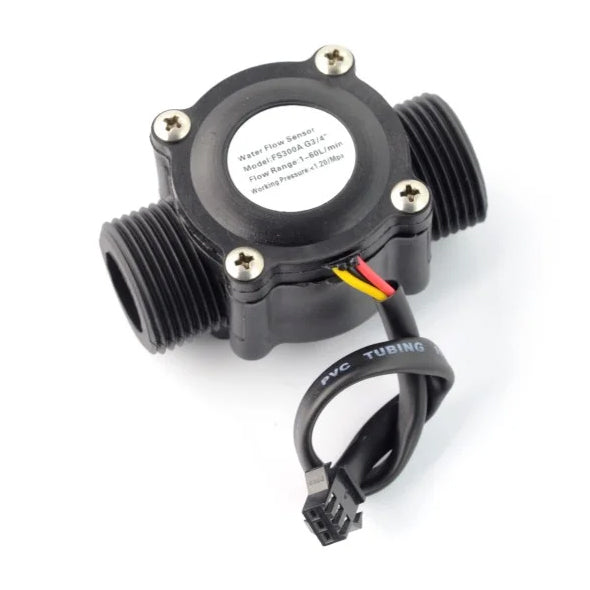

FS300A Water Flow Sensor 1-60L/min G3/4"
Průtokoměr vody - závit G 3/4"", měřený průtok 1–60 l/min, napájení 3,5–24VDC, výstup 5V TTL, max. pracovní tlak 1,75MPa, max. teplota kapaliny 80°C, Hallova sonda, charakteristika 450 pulzů/litr, přesnost měření 2%, max. spotřeba 15mA, provozní vlhkost 35–90 % RH, délka kabelu 15 cm, rozměry 65 × 40 mm, kompatibilní s Arduino, balení 1 ks"
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
179,00 Kč
147,93 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830304
FS300A Water Flow Sensor 1-60L/min G3/4"
Regular price
179,00 Kč
147,93 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The water flow meter 1–30L / min allows to measure the amount of flowing liquid by means of a Hall probe. At the output, the frequency changes depending on the flow rate, the higher the flow rate, the higher the frequency. Can be used up to a maximum liquid temperature of 80 ° C.
Technical parameters:
- thread: G 3/4"
- measured flow: 1 ~ 60 l / min
- max. working pressure: 1.75MPa
- output: 5V TTL
- max. working temperature: up to 80 ° C
- operating humidity: 35% ~ 90% RH (without icing)
- power supply: 3,5-24VDC
- max consumption: 15mA
- pulse characteristics: 450 pulses / liter or f (Hz) = 7.5 * flow (l / min)
- measurement accuracy: 2%
- cable length: ~ 15cm
- dimensions: 65 × 40mm
- connection: red: + 5V, black: GND, yellow: OUT (output to digital pin arduina)
The product is not a self-functional unit, it requires professional assembly.
Packing: 1pc
Technical parameters:
- thread: G 3/4"
- measured flow: 1 ~ 60 l / min
- max. working pressure: 1.75MPa
- output: 5V TTL
- max. working temperature: up to 80 ° C
- operating humidity: 35% ~ 90% RH (without icing)
- power supply: 3,5-24VDC
- max consumption: 15mA
- pulse characteristics: 450 pulses / liter or f (Hz) = 7.5 * flow (l / min)
- measurement accuracy: 2%
- cable length: ~ 15cm
- dimensions: 65 × 40mm
- connection: red: + 5V, black: GND, yellow: OUT (output to digital pin arduina)
The product is not a self-functional unit, it requires professional assembly.
Packing: 1pc
