Reflective light barrier, module with LM393 /Reflective optocoupler/
Reflexní optočlen s IR senzorem - typ FC-51 s obvodem LM393, napájecí napětí 3,3–5V, nastavitelná detekční vzdálenost 2–30 cm pomocí potenciometru, detekční úhel 35°, doba odezvy 0,5s, digitální výstup 0V/5V, LED indikace napájení a aktivního stavu, vysílací a přijímací IR dioda, vhodný pro robotiku a automatizaci
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830104

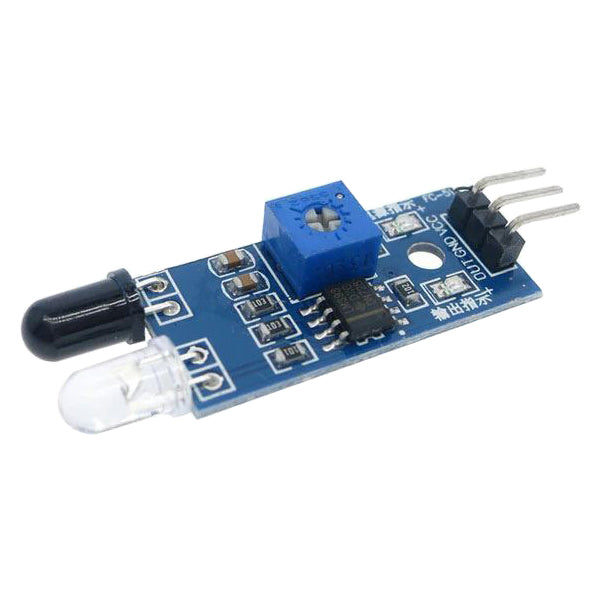

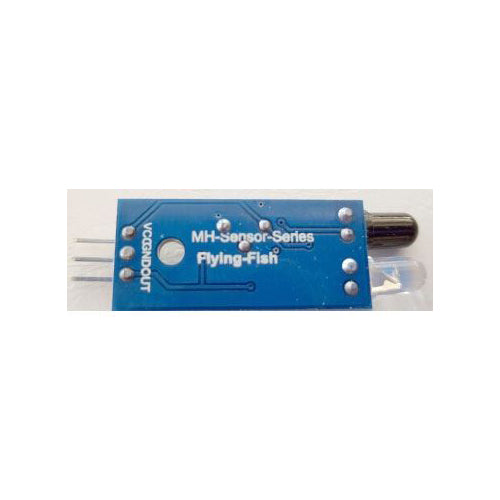

Reflective light barrier, module with LM393 /Reflective optocoupler/
Regular price
15,00 Kč
12,40 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Infrared obstacle sensor. Reflective optocoupler for obstacle detection with a shiny reflecting surface. Adjustable sensitivity for a distance of 2–30 cm (set with a potentiometer - you set the distance below which the module outputs a high signal). The sensor has one infrared diode for the transmitter and one for the receiver. If there is an obstacle in the detection area, the green indicator lights up. The sensor has a digital output signal, when there is no obstacle the state on the pin is low 0V and when an obstacle occurs, the state on the pin is high 5V.
Technical parameters:
- IR optical infrared sensor FC-51
- supply voltage: 3.3-5V
- transmitting and receiving IR diodes
- detection angle 35 °
- response time: 0.5 s
- adjustable sensitivity by potentiometer
- LED indication of power supply and active status
- digital output eg for relay control
- size: 32 × 14 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- IR optical infrared sensor FC-51
- supply voltage: 3.3-5V
- transmitting and receiving IR diodes
- detection angle 35 °
- response time: 0.5 s
- adjustable sensitivity by potentiometer
- LED indication of power supply and active status
- digital output eg for relay control
- size: 32 × 14 mm
The product is not a stand-alone unit, it requires professional installation.
