PWM speed regulator for direct current (DC) motors 5-35V up to 5A
PWM regulátor otáček - napájecí napětí 5–35V DC, max.,proud 5A, max. trvalý proud 2,6A, výstupní výkon 90W, frekvence PWM 20kHz, rozsah regulace 1–100% změnou šířky pulsu, klidový proud 7µA, regulace potenciometrem, vhodný pro DC motory a LED pásky, svorky M+/M-/V+/V- rozměry 30 × 24 × 14 mm, hmotnost 13 g, vyžaduje odbornou montáž
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
30,00 Kč
24,79 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09830175
PWM speed regulator for direct current (DC) motors 5-35V up to 5A
Regular price
30,00 Kč
24,79 Kč
excl. VAT
Unit price
/
Unavailable
Product description

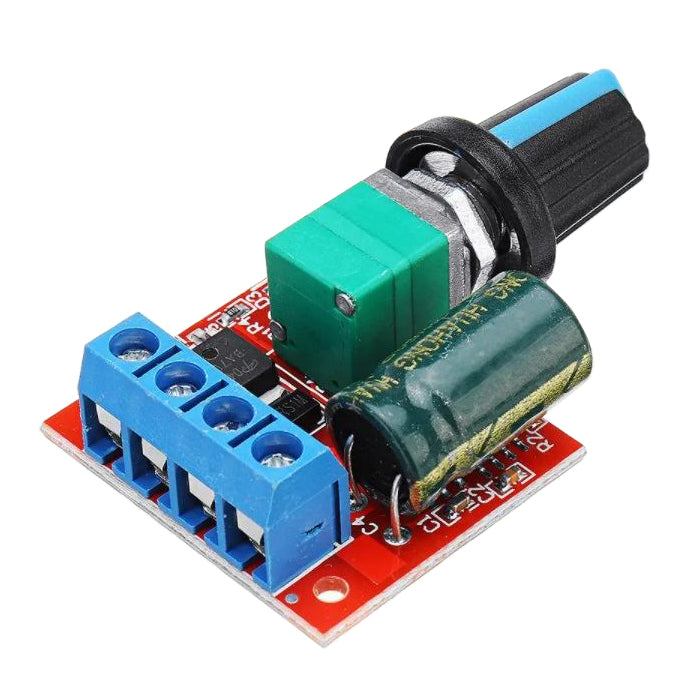

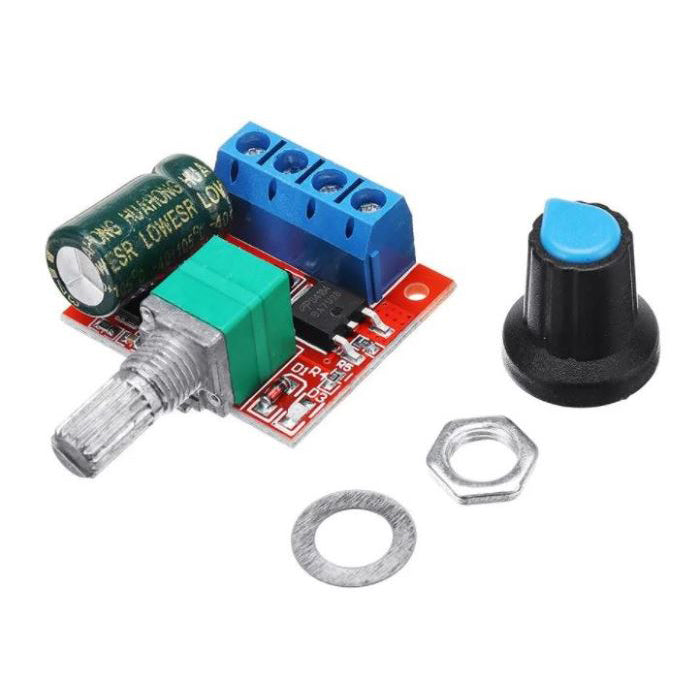

Pulse PWM controller for DC motors or LED lights and strips. No feedback to check the set speed.
Technical parameters:
- Supply voltage: DC 5-35V
- Max. output power 90W
- Max. peak output current: 5A
- Max. continuous output current 2.6A
- Quiescent current 7uA
- PWM frequency 20kHz
- Control range 1-100% by changing the pulse width

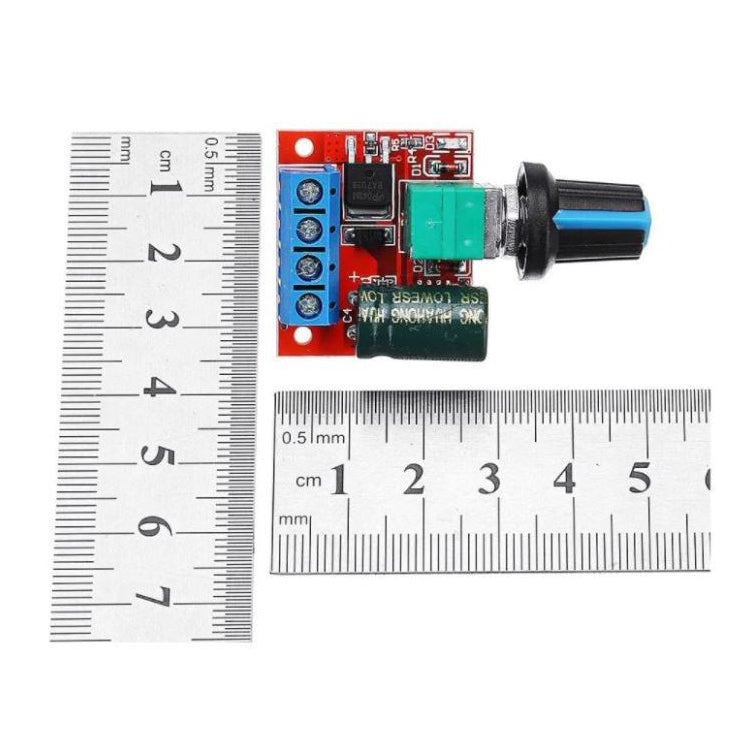

- Dimensions 30 × 24 × 14mm / 13g

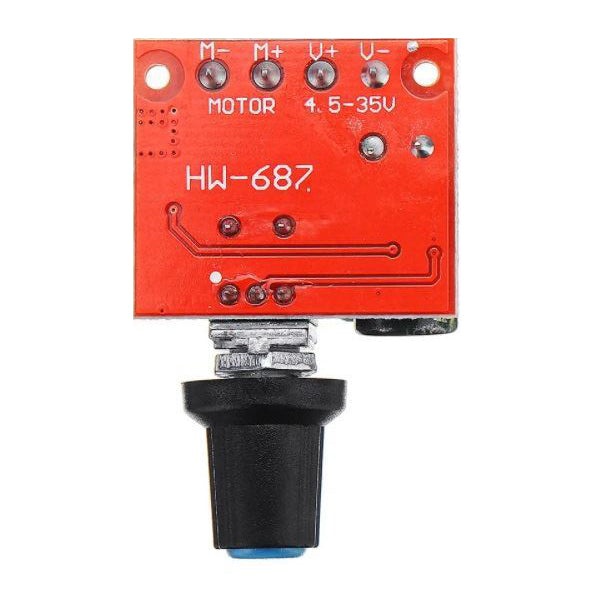

Involvement:
M- Engine -
M + Motor +
V + Power supply +
V- Power supply -
When connected, it does not matter how the DC motor is connected to the + and - terminals. In the event of a reverse connection, the motor will start to rotate to the other side. The speed of the connected motor is regulated by a potentiometer.
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- Supply voltage: DC 5-35V
- Max. output power 90W
- Max. peak output current: 5A
- Max. continuous output current 2.6A
- Quiescent current 7uA
- PWM frequency 20kHz
- Control range 1-100% by changing the pulse width
- Dimensions 30 × 24 × 14mm / 13g
Involvement:
M- Engine -
M + Motor +
V + Power supply +
V- Power supply -
When connected, it does not matter how the DC motor is connected to the + and - terminals. In the event of a reverse connection, the motor will start to rotate to the other side. The speed of the connected motor is regulated by a potentiometer.
The product is not a stand-alone unit, it requires professional installation.
