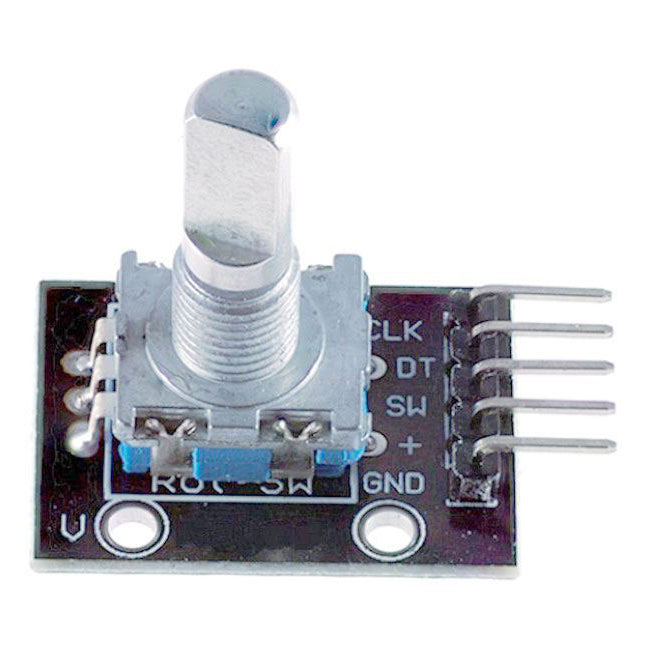

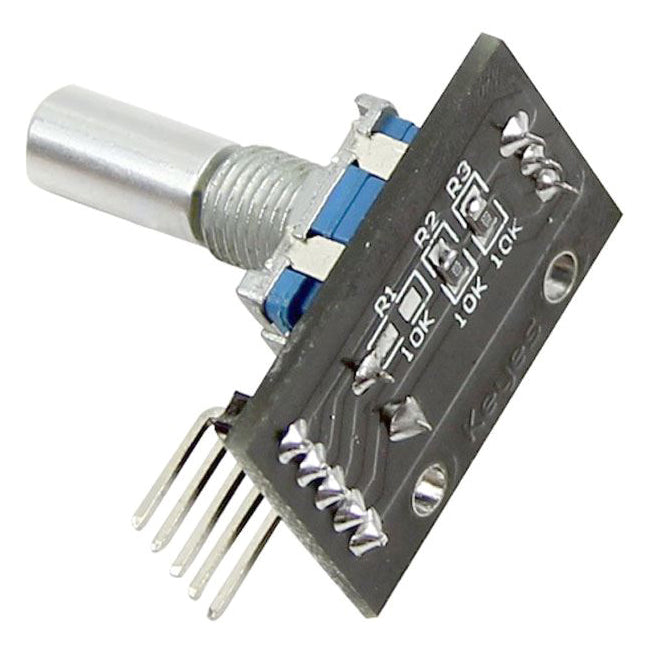

Rotary encoder with button KX-040 - for Arduino
Rotační enkodér s tlačítkem - typ KX-040, napájení 5V, bezdorazový chod s neomezeným počtem otáček, 20 pulzů na otáčku, piny CLK, DT, SW, VCC, GND, axiální tlačítko při stisku osy, průměr osy 6 mm, délka osy 20 mm, délka závitu 6 mm, životnost 30 000 cyklů, kompatibilní s Arduino, vyžaduje odbornou montáž
In stock 2 pcs
Expected shipping:
15.06.2026
Regular price
23,00 Kč
19,01 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
09830084
Rotary encoder with button KX-040 - for Arduino
Regular price
23,00 Kč
19,01 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Non-stop potentiometer with pushbutton and two phase outputs for determining the direction of rotation.
Technical parameters:
- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm
The product is not a stand-alone unit, it requires professional installation.
Technical parameters:
- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm
The product is not a stand-alone unit, it requires professional installation.
