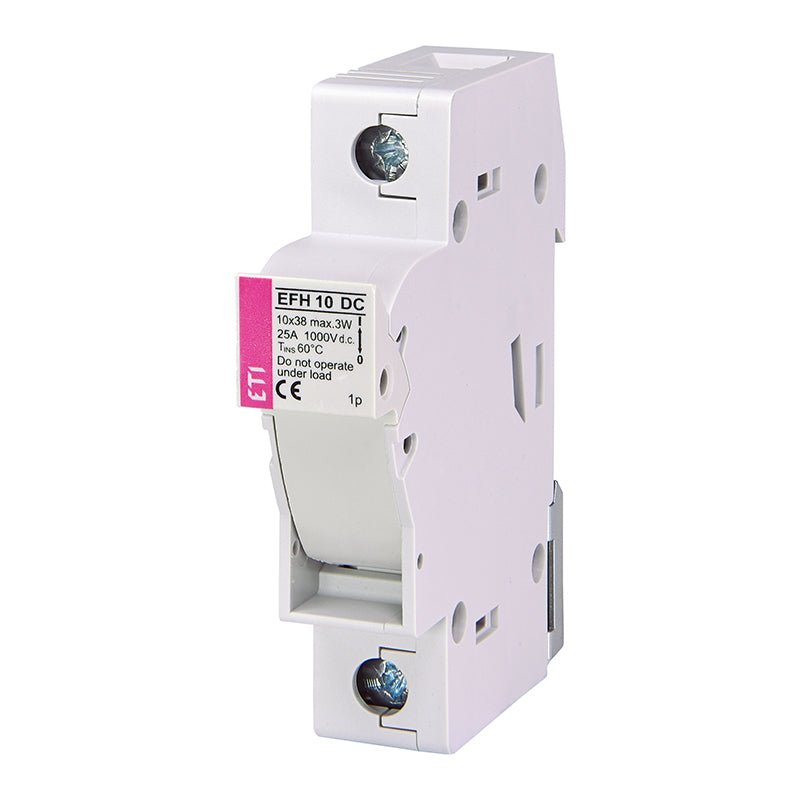

Safety switch for photovoltaic panel 12 A

One fuse is part of the disconnector - it is inserted in the disconnector.
In the event of a short circuit/overload, the fuse inserted in the switch is blown. After removing the short circuit/overload, insert a new fuse into the flip-up holder and close the fuse holder.

Do not open the fuse box under load!


Technical parameters:

- weight: 63 g
- rated current: 25 A
- nominal DC voltage: 1000 V
- connection: 1 - 25 mm2
- mounting: 35mm DIN rail

Technical parameters of the fuse for the protection of photovoltaic modules:

- rated current: 12 A
- characteristic: gPV
- nominal DC voltage: 1000 V
- breaking capacity DC 30 (kA)
- power loss: 1.9 W
- dimensions: 10 x 38 mm
