Smart electronic circuit breaker IMMAX NEO 07574L 1-63A WiFi Tuya
Action
Smart elektronický jistič jednofázový - WiFi 2,4GHz, RF výkon 20dBm, proudová ochrana 1–63A (nastavitelné v aplikaci), ochrana proti přepětí 220–265V, ochrana proti podpětí 76–240V, tepelná pojistka, max. zatížení 26kW, příkon AC 100–260V 50/60Hz, pohotovostní příkon 0,4W, dosah 30 m (přímá viditelnost), provozní teplota -25 až +70°C, materiál PC V0, rozměry 82 × 18 × 66 mm, krytí IP20, montáž na DIN lištu
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
499,00 Kč
412,40 Kč
excl. VAT
Unit price
/
Unavailable
IMMAX NEO | SKU:
06441799
Smart electronic circuit breaker IMMAX NEO 07574L 1-63A WiFi Tuya
Regular price
499,00 Kč
412,40 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Smart electronic single-phase circuit breaker
Technical parameters:
Protocol: WiFi
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: WiFi: 20dBm
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1

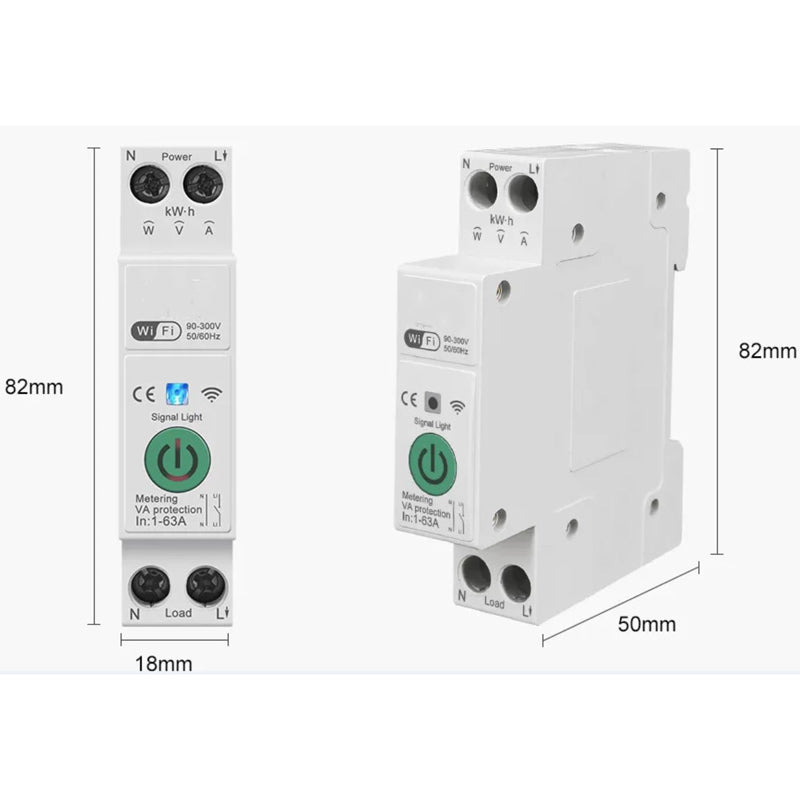

Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20
Package contents: electronic circuit breaker, user manual
Technical parameters:
Protocol: WiFi
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: WiFi: 20dBm
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1
Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20
Package contents: electronic circuit breaker, user manual
