Smart control unit RAINPOINT TTV103FRF

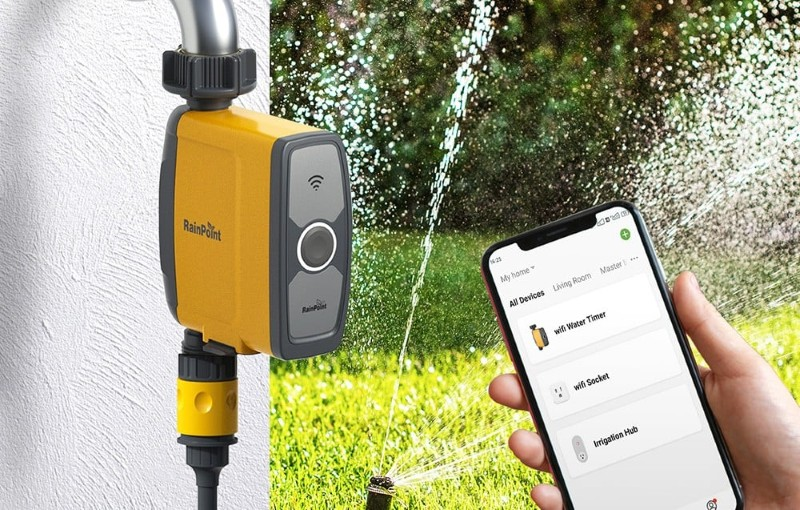

RainPoint is a smart, single-zone irrigation controller that makes it easy to care for your garden. With remote control via the app, you can set up to three watering programs for the selected zone, choose between intensive watering and fine misting, and pause watering in case of rain. The robust IP54 waterproof housing and dirt filter ensure reliability for many years, while the built-in flow meter and low water level and potential leak alerts help you control your water consumption. Automatic watering based on a soil moisture sensor and local weather forecast will also save you time and water. Discover how easy it is to have a lush and green garden!

Remote control
Thanks to the included hub (model TWG004WRF), you can expand the system with additional devices and also use it as a regular Wi-Fi socket. The RainPoint Tuya app, available for iOS and Android, allows you to manually water (turn water on and off from the app, set the run time of any valve), set schedules (the selected zone can have up to three independent programs per day with different start times and watering durations), and manually or automatically pause the schedule during rain.

Two modes for optimal plant care
The device offers two modes, including a spray mode (a powerful stream of water for deep root irrigation) and a mist mode (a fine, cooling mist, ideal for plants that require gentle care). Set different watering schedules for your lawn, flower beds or vegetable beds and enjoy perfect moisture in every corner.

Weather forecast-based automation
Connect an optional soil sensor (up to 2 sensors per controller) and let the system water your plants automatically when it detects a drop in moisture. In addition, the built-in water flow meter records the consumption for the last 10 days, and the app will notify you when the battery is low, malfunctions or leaks.

Thoughtful design
The controller body has an IP54 protection rating, is resistant to dust, splash water and UV radiation. The integrated filter removes up to 35% of impurities and withstands water pressure of up to 35 kg/cm2. The sealed battery cover prevents moisture from entering.

Technical parameters:

Wireless range: 60 m (in open space, if there are no obstacles between the hub and the controller)
Water pressure: 0.5~8 bar
Operating temperature: Controller 3°C-50°C, hub 3°C-40°C
Power supply: 4 AA batteries (not included)
Waterproof. IP54
Wi-Fi Hub Frequency Band: 2.4 GHz
Hub Input: 100-240V 50Hz 16A
Dedicated App: RainPoint Tuya

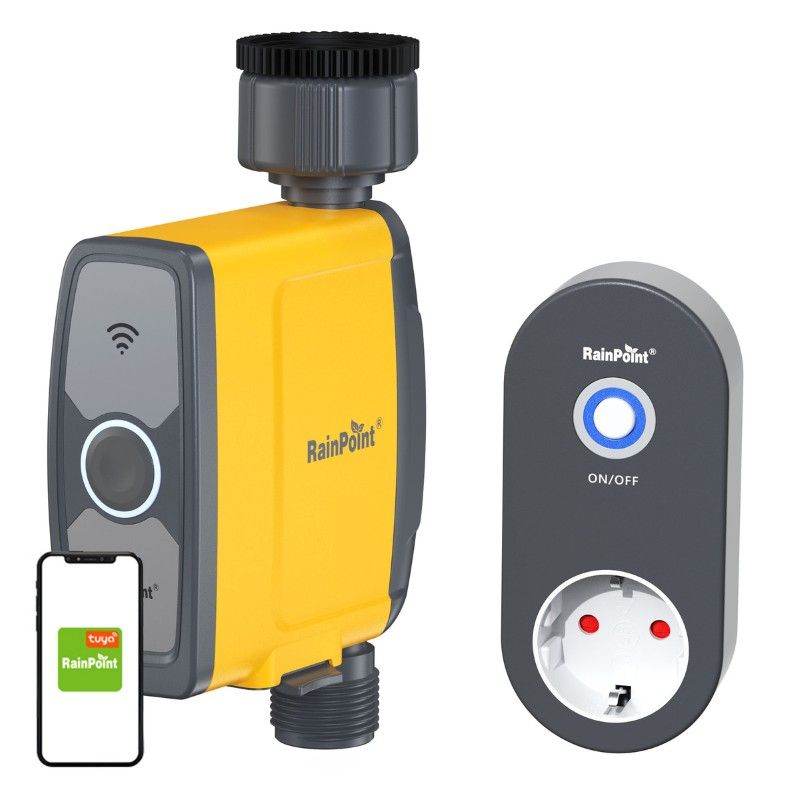

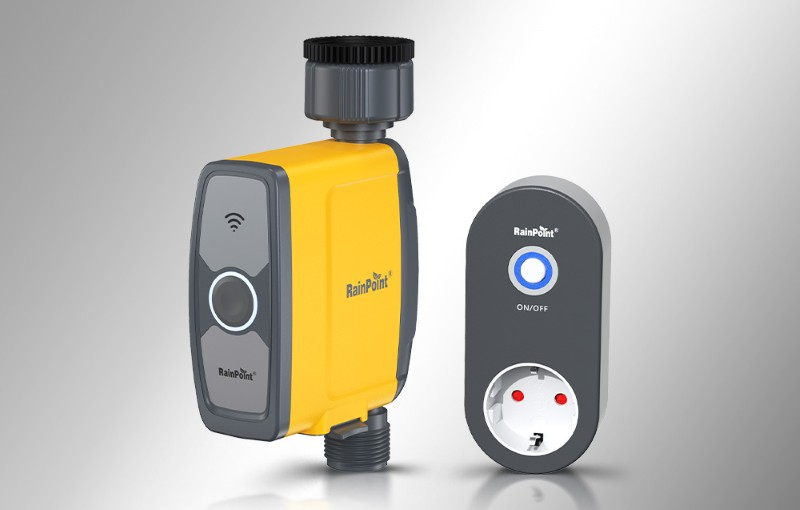

Package Contents:

Watering Controller
Hub
Mounting Tape
Replacement Rubber Pad
User Manual
