Solar inverter GETI GWH04W 5000W MPPT for PV water heating

Solar MPPT controller for water heating GETI GWH04W (5000 W)

The GETI GWH04W delivers an uncompromising 5 kW, IP65 resistance and the Smart Life app right at the base. It is the ideal choice for those who want maximum savings without technical compromise.

Maximise the profit from your solar panels and keep your gas or electricity bills to a minimum!

Looking for a reliable way to energy self-sufficiency? Photovoltaic water heating is one of the fastest-returning investments in the renewable energy sector. The GETI GWH04W intelligent solar controller represents the technological cutting edge for environmentally friendly heating and hot water. It can efficiently process the clean energy from photovoltaic panels and direct it directly into the heating element of your existing boiler, storage tank or PTC cell with unrivalled efficiency.

This state-of-the-art inverter is designed for both professional installers and discerning DIYers who demand maximum performance, superior safety and detailed visibility of energy produced all in one place.


Key benefits that will move your energy business forward:

- Maximum energy gain with MPPT technology: an advanced algorithm continuously searches for the maximum power point (MPP) of PV panels. This achieves a maximum inverter efficiency of up to 99%, ensuring optimal water heating even in low light conditions (e.g. under clouds or during winter months).
- Bypass. Intelligent source switching (PV / AC grid). If the sun does not shine sufficiently, the device can automatically switch to backup power from the home 230V grid. Hot water is thus available 24 hours a day, 7 days a week.
- Clean operation without complicated electronics: it converts direct current (DC) from the panels into alternating current (AC) with a rectangular waveform, which is ideal for directly powering standard resistance heating coils.

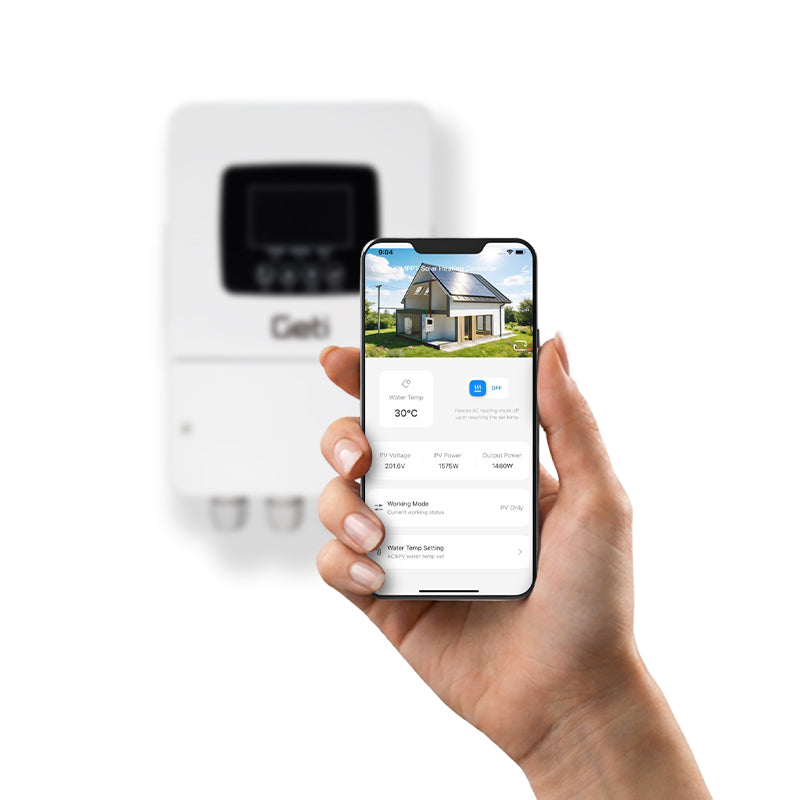

- Wi-Fi connectivity and Smart Life app.
- Robust design for harsh conditions: with a high IP65 rating, the controller is protected against dust and splash water, ensuring trouble-free operation in utility rooms or basements.
- Wide voltage range (60 V to 450 V DC). Support for open-circuit voltages up to 500 V DC (Voc) gives installers and DIYers enormous freedom. A series of 6 to 10 common modern panels can be safely connected to the regulator without the risk of winter voltage spikes destroying the regulator.
- With a rating of up to 5000 W (5 kW), it can safely serve modern, high performance heaters or larger storage tanks. You can hook up a more powerful PV array (up to 5260 Wp), which means you can heat water much faster and the system has a huge reserve.


Technical parameters:

- Model/order number: GETI GWH04W / 04291233
- Rated power: 5000 W
- Maximum PV array output: 5260 W Max.
- 500 V DC
- MPPT operating voltage range: 60 - 450 V DC
- Solar heating starting voltage: 120 V DC
- Maximum PV input current: 36 A
- Number of MPPT strings: 1
- Output waveform: Rectangular signal
- Rated output voltage: 230 V AC (dynamically adapts to PV panels)
- Maximum inverter efficiency (DC/AC): 99%
- Acceptable AC input range (mains): 90 - 280 VAC
- User interface: Backlit LCD display + control buttons
- Communication: Wi-Fi (2.4 GHz band)
- Operating ambient temperature: -30 °C to +60 °C
- Enclosure protection rating: IP65
- Dimensions: (L × W × H)308 × 188 × 100 mm
- Net weight: 3.4 kg


Important notes for installation and correct operation:

- Load type (Key for functionality): The controller is designed for purely resistive loads only. It works great with common boiler heating coils, heating rods, PTC cells or radiant heaters. The device must not be inductive or capacitive in nature - it is not intended for powering motors, circulators or appliances with an integrated electronic control unit of their own!
- Heater specifications: the connected input power must not exceed 5000 W at 230 V AC and the internal resistance of the heater must not be less than 10.5 Ohm.
- Installation rules: The device requires installation in a vertical position (perpendicular to the wall) on a non-combustible substrate (e.g. concrete, brick) to ensure perfect passive cooling of the heatsink.
- Never enclose the controller in tight enclosures with no airflow.
- Legislation and safety.
- The output of the inverter (L, N) must never be connected to the mains or earthed (TN-S system).


Package contents:

- Solar controller GETI GWH04W
- External temperature sensor (for accurate monitoring of the water temperature in the boiler)
- Screw and dowel set for wall mounting
- Clear and honest Czech instruction manual

Invest in a future that pays off. With the GETI GWH04W solar controller you turn the sun's rays into hot water with maximum efficiency, complete safety and complete statistics right on your mobile phone!
