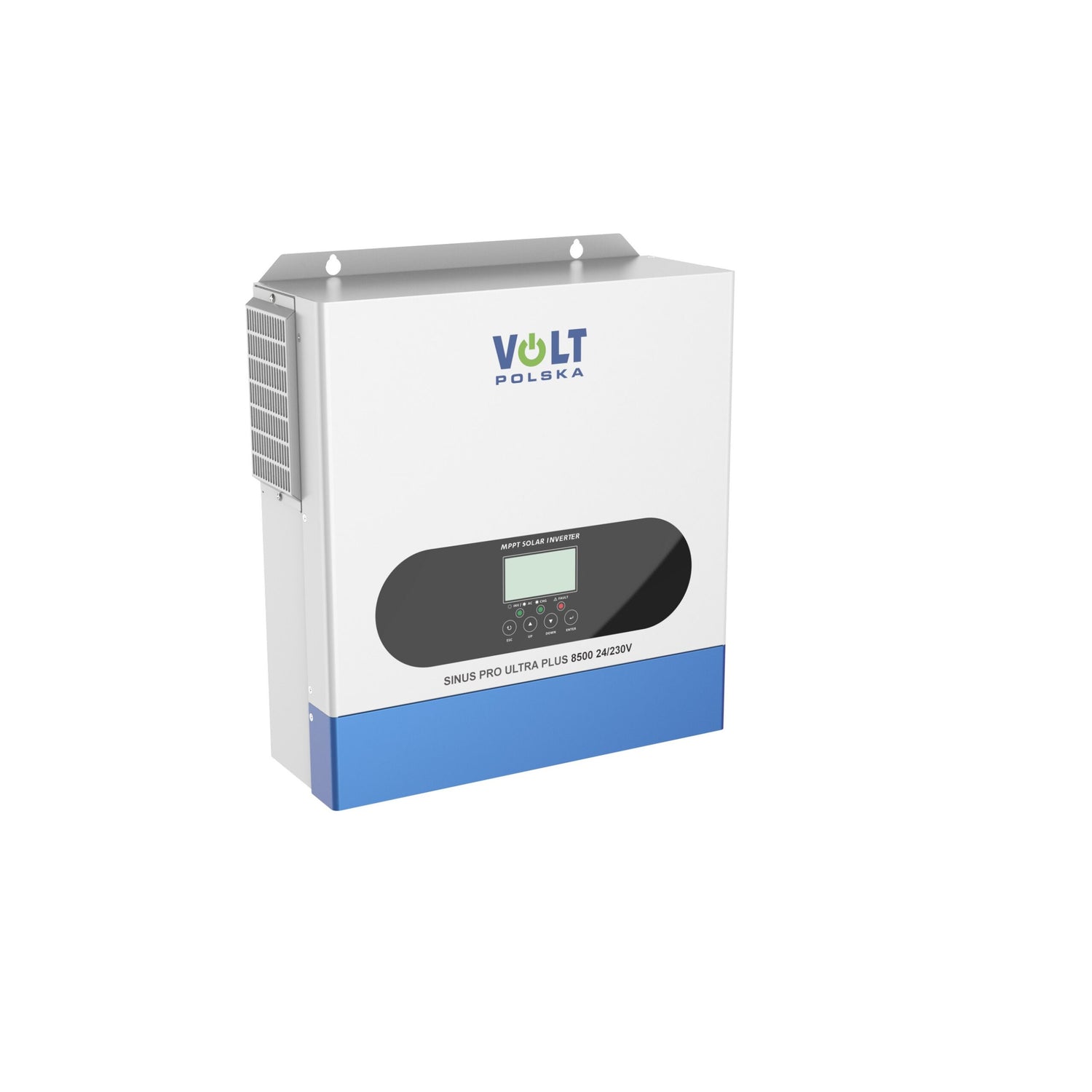

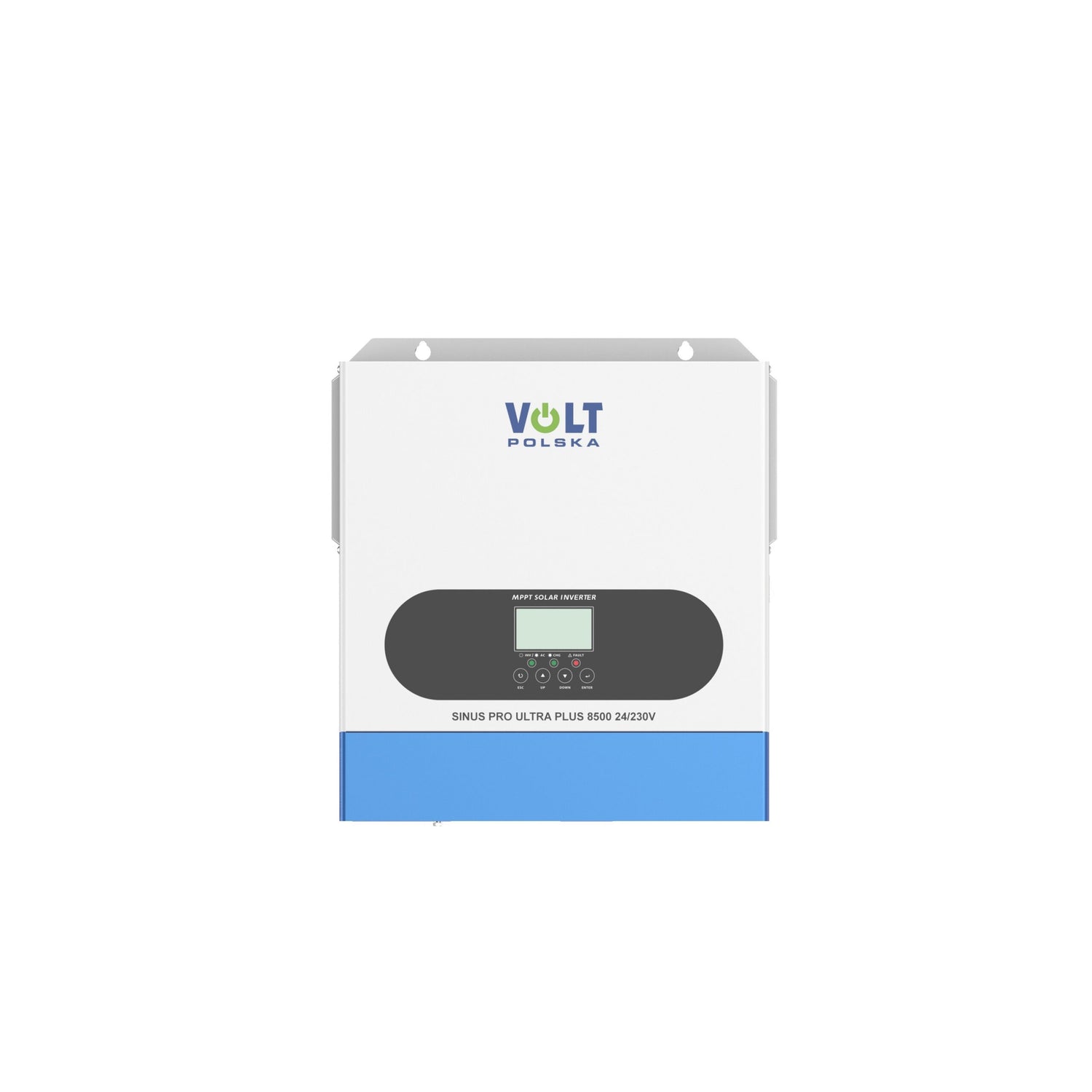

Solar inverter VOLT Sinus Pro Ultra Plus 8500 24/230V (4200W/8500VA) + 120A MPPT (60-500V) WiFi

The SINUS PRO ULTRA PLUS 8500 24/230V is an advanced, multifunctional 3-in-1 device that combines the functions of an inverter, solar charger and battery charger. Thanks to the versatile LCD display, users can easily and intuitively configure key operating parameters and adapt them to the individual needs of the system.

Key features:

Off-grid (islanded) operation.
Intuitive configuration.
Dual AC Output: The inverter has two outputs (main and auxiliary), allowing intelligent load management.
BMS communication support - full cooperation with modern
Energy storage systems (e.g. ULTRA 5).
Battery activation function.
Built-in Wi-Fi module: allows remote monitoring of device operation via a dedicated iOS and Android app.
Pure Sine.
Multiple output priority support: UTL, SOL, SBU, SUB.
Short circuit, overload and temperature protection.

Technical parameters:

Total power (instantaneous): 8400VA
Constant (continuous) power: 4200VA / 4200W
No-load power consumption: 30-60 W
Battery voltage: 24 V DC
Vmp range of panels: 60~500 V DC
Input voltage range (mains power): 170-280 VAC (home computers); 90-280 VAC (home appliances)
Output voltage range (battery mode): 220 V AC - 230 V AC +/- 5%
Maximum mains charging current: 120A
Maximum charging current from solar panels: 120A
Operating temperature: -10°C-50°C
Tightness class: IP21
Dimension: 368 × 320 × 120 mm +-5 %
Weight: 7.9 kg +/- 5%
