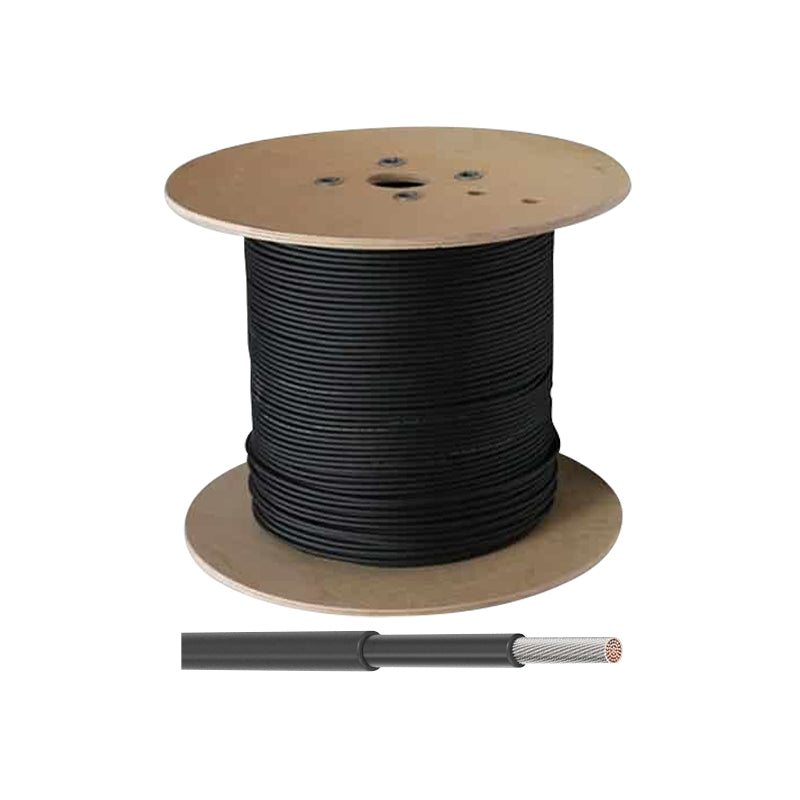

Solar cable 4mm2, black, 500m

Solar cable type H1Z2Z2-K intended for photovoltaic distribution and DC current conduction. Double reinforced insulation from halogen-free XLPE guarantees excellent resistance to UV radiation, ozone, oxygen, oils and mechanical stress. The cable is non-flammable with self-extinguishing properties, complies with the EN 50618 standard. Suitable for outdoor and indoor use.


Technical parameters

- cable type: H1Z2Z2-K
- conductor cross-section: 4 mm2
- conductor: stranded tinned copper
- string: 56/0.285±0.01 mm
- diameter: 2.4mm
- primary insulation: XLPE
- minimum average thickness: 0.7 mm
- black colour
- secondary insulation: XLPE
- outer diameter: 5.5 ± 0.15 mm
- EN 50618/IEC 62930: 1000V AC
- max. conducted voltage: 1500V DC
- working temperature: -40°C to +90°C
- at 20 °C insulation resistance: ? 709 M?.km
- current carrying capacity AT 30°C: 57A

Packaging: 1 pc = 500 m
