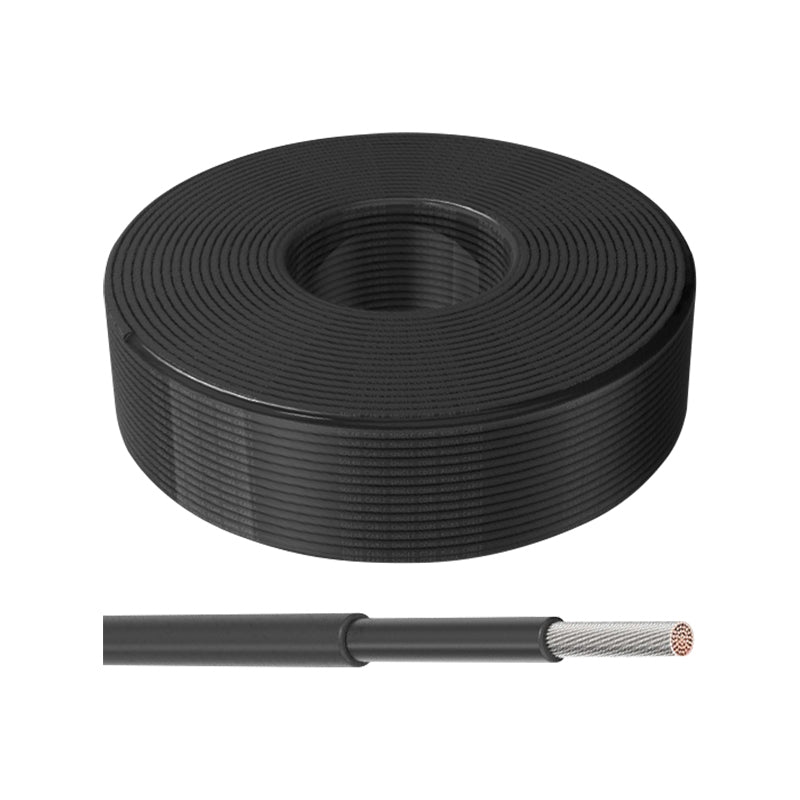

Solar cable 6mm2, black, 100m
Solární kabel - typ H1Z2Z2-K, průřez 6 mm2, barva černá, vodič spletená pocínovaná měď (výplet 84/0,285 mm), primární i sekundární izolace XLPE tloušťky min. 0,7 mm, vnější průměr 6,1 mm, pracovní teplota -40 až +90°C, proudová zatížitelnost 72A při 30°C, izolační odpor ?610M?.km při 20°C, norma EN 60364-7-712, vhodný pro pevnou i pohyblivou instalaci FV systémů, balení 100 m
Will be restocked
Expected shipping:
13.06.2026
at our place
Regular price
2.795,00 Kč
2.309,92 Kč
excl. VAT
Unit price
/
Unavailable
Klaus Faber AG | SKU:
04291218
Solar cable 6mm2, black, 100m
Regular price
2.795,00 Kč
2.309,92 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Solar cable H1Z2Z2-K 01X6 1kV BLACK á500 copper.
Solar cable for free-moving use or for fixed installation in photovoltaic systems according to EN 60364-7-712. They can be used indoors, outdoors, in explosive environments, in industry or in agricultural operations.
Technical parameters
- cable type: H1Z2Z2-K
- conductor cross-section: 6 mm2
- conductor: stranded tinned copper
- braiding: 84/0.285±0.01 mm
- diameter: 3.0 mm
- primary insulation: XLPE
- minimum average thickness: 0.7 mm
- color: black
- secondary insulation: XLPE
- outer diameter: 6.1±0.2 mm
- operating temperature: -40°C to +90°C
- at 20 °C insulation resistance: ? 610 M?.km
- current carrying capacity AT 30°C: 72A
Packaging: 1 pc = 100 m
Solar cable for free-moving use or for fixed installation in photovoltaic systems according to EN 60364-7-712. They can be used indoors, outdoors, in explosive environments, in industry or in agricultural operations.
Technical parameters
- cable type: H1Z2Z2-K
- conductor cross-section: 6 mm2
- conductor: stranded tinned copper
- braiding: 84/0.285±0.01 mm
- diameter: 3.0 mm
- primary insulation: XLPE
- minimum average thickness: 0.7 mm
- color: black
- secondary insulation: XLPE
- outer diameter: 6.1±0.2 mm
- operating temperature: -40°C to +90°C
- at 20 °C insulation resistance: ? 610 M?.km
- current carrying capacity AT 30°C: 72A
Packaging: 1 pc = 100 m
