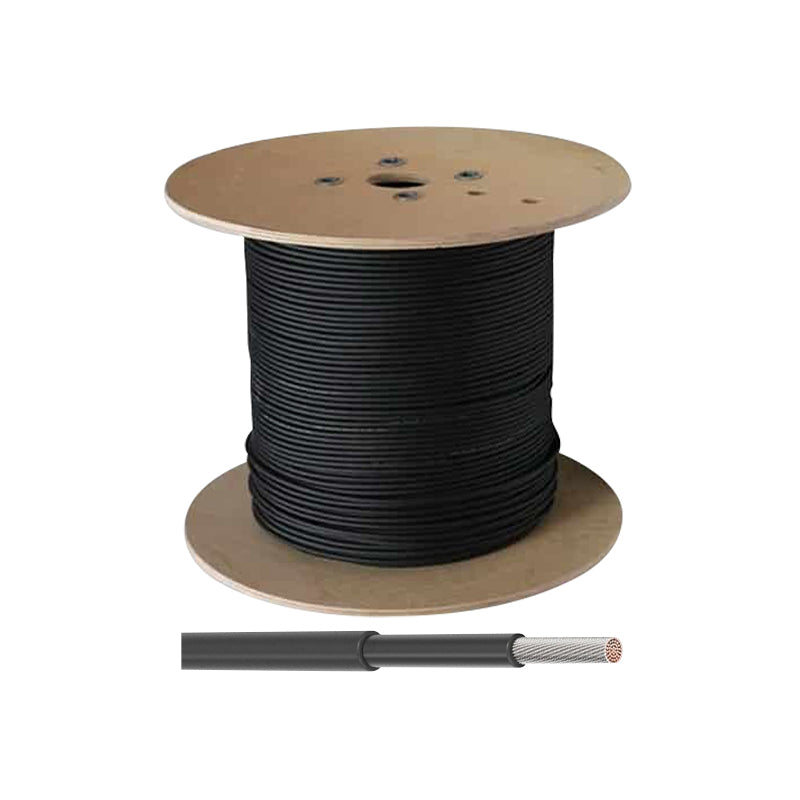

Solar cable 6mm2, black, 500m

Solar cable H1Z2Z2-K 01X6 1kV BLACK á500 copper.
Solar cable for free-moving use or for fixed installation in photovoltaic systems according to EN 60364-7-712. They can be used indoors, outdoors, in explosive environments, in industry or in agricultural operations.

Technical parameters

- cable type: H1Z2Z2-K
- conductor cross-section: 6 mm2
- conductor: stranded tinned copper
- braid: 84/0.285±0.01 mm
- diameter: 3.0 mm
- primary insulation: XLPE
- minimum average thickness: 0.7 mm
- color: black
- secondary insulation: XLPE
- outer diameter: 6.1±0.2 mm
- operating temperature: -40°C to +90°C
- at 20 °C insulation resistance: ? 610 M?.km
- current carrying capacity AT 30°C: 72A

Packaging: 1 pc = 500 m
