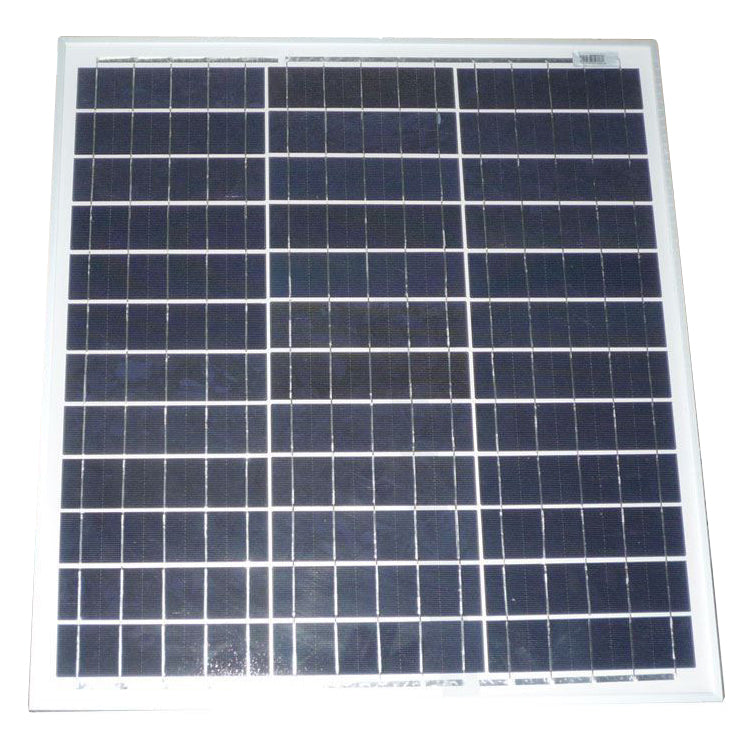

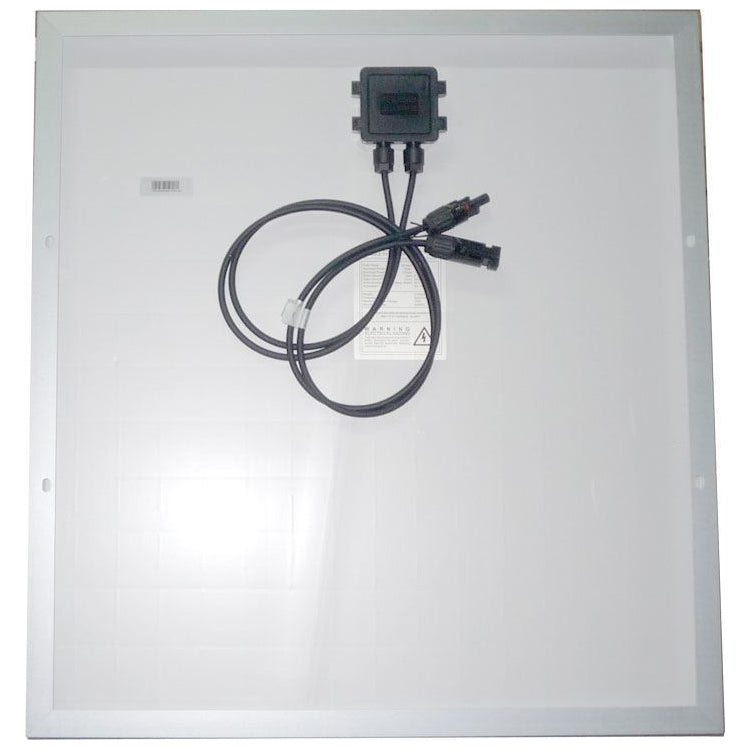

Solar panel 12V/40W polycrystalline

Photovoltaic panel made of polycrystalline silicon. Aluminum frame 25mm, cover glass.

Polycrystalline cell:
Substrates are made from smaller silicon crystals and pressed into one unit.
The round ingot is then cut into so called wafers, which are cut to the desired PV cell size.
Obviously, this technology cannot achieve such purity of the material;

Advantages of polycrystalline:
Slightly higher diffuse light production (unfavorable light conditions)


Technical parameters:

- Max. open circuit voltage Voc=21.58V
- Max. short circuit current Isc=2.63A
- Max. voltage at 40W load: Vmp=17.31V
- Max. current at 40W: Imp=2.31A
- Max. system voltage: 1000V
- Working temperature –45+85°C
- Dimensions: 550 x 510 x 25 mm
- Weight: 3.36 kg
