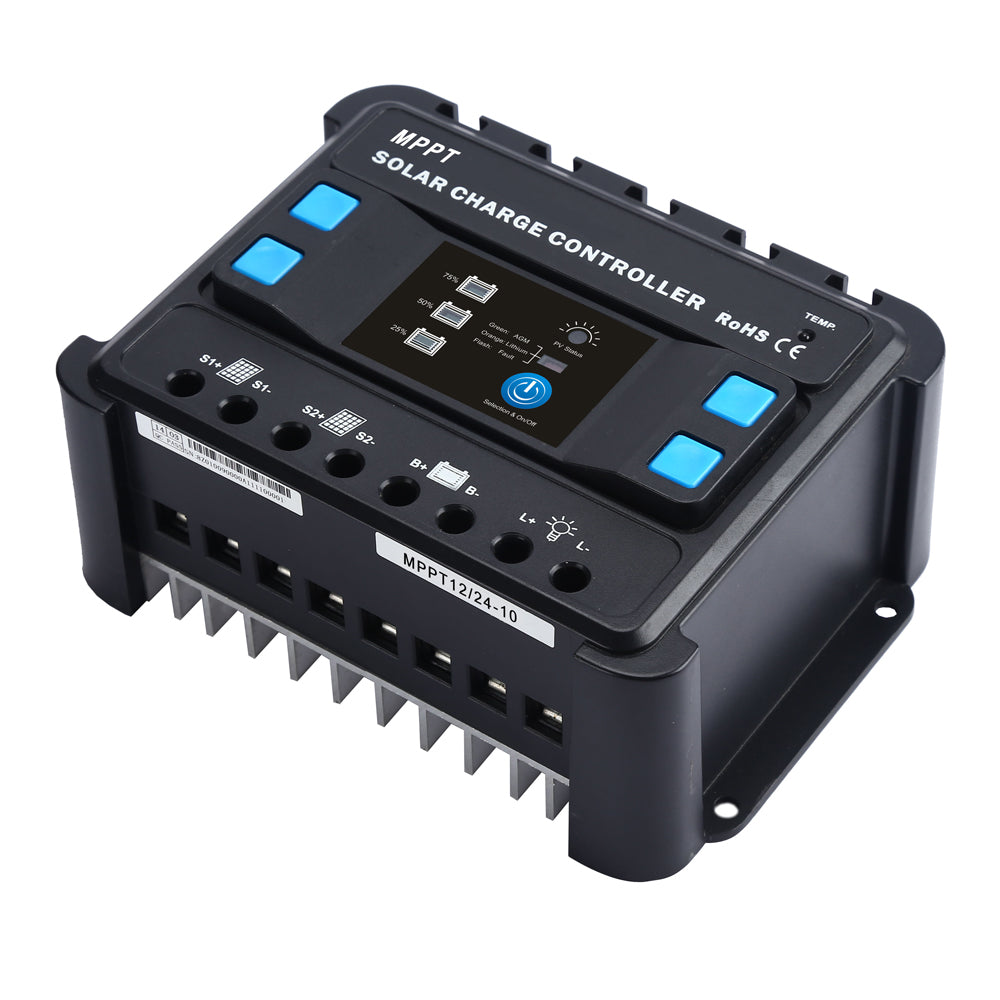

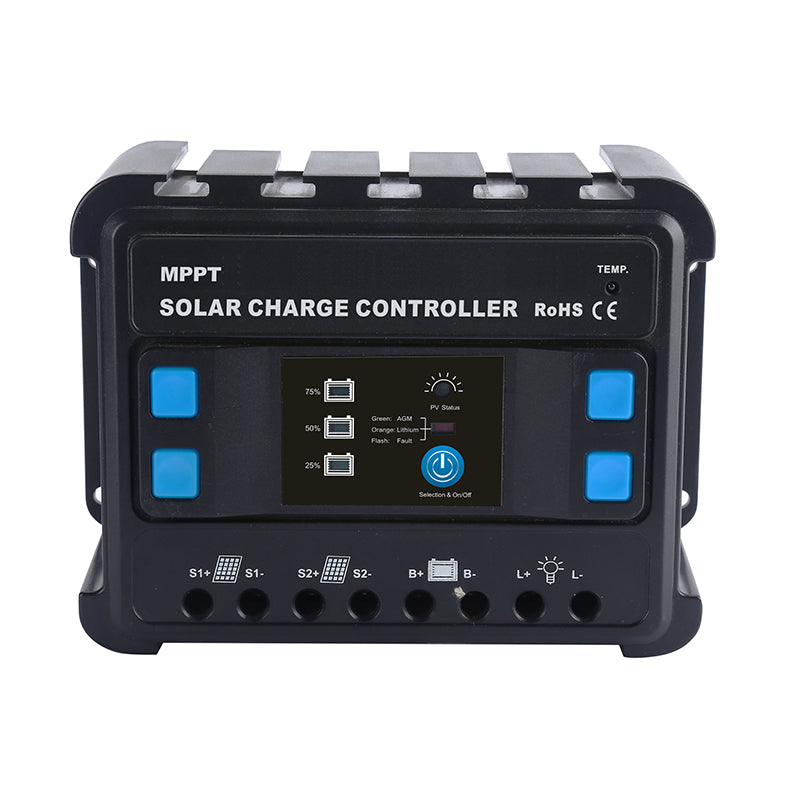

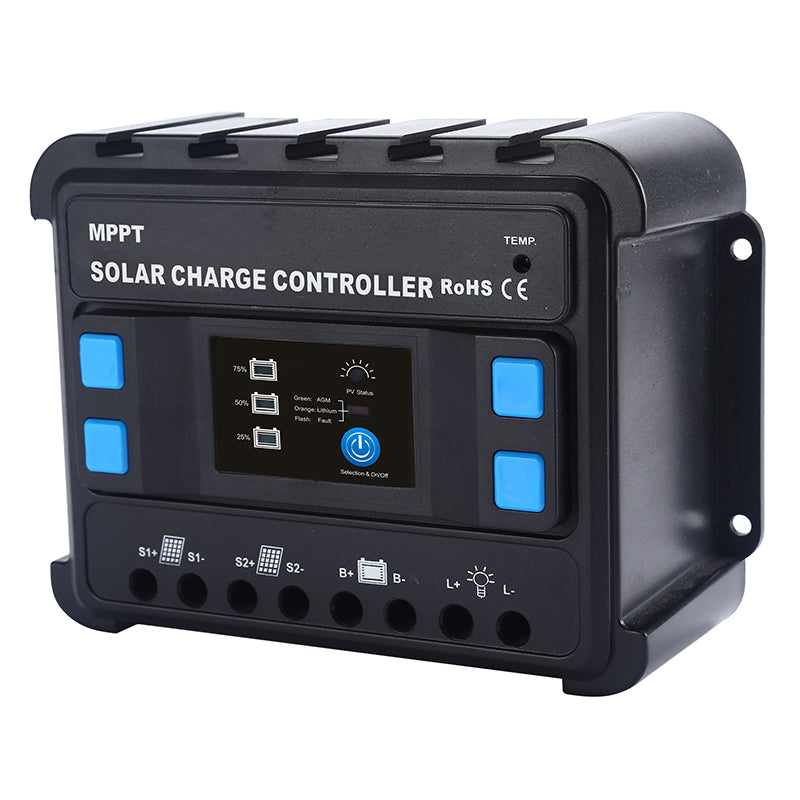

Solar regulator MPPT CARSPA 10A - 12 / 24V
Solární MPPT regulátor - systémové napětí 12/24V s automatickým rozpoznáním, nabíjecí proud 10A, PV vstupní napětí 10–40V / 20–65V, ochrana proti PV přepětí 65V, účinnost MPPT 99 %, kompatibilní s bateriemi AGM, GEL a LiFePO4, standardní nabíjecí napětí 14,6V, plovoucí nabíjecí napětí 13,8V / 27,6V, ochrana proti přebití 17V / 34V, ochrana proti vybití 11V, pohotovostní spotřeba <40mA, provozní spotřeba <130mA, displej provozních dat
In stock more than 5 pcs
Expected shipping:
15.06.2026
Sale price
999,00 Kč
Regular price
1.290,00 Kč
825,62 Kč
excl. VAT
Unit price
/
Unavailable
CARSPA | SKU:
04280157
Solar regulator MPPT CARSPA 10A - 12 / 24V
Sale price
999,00 Kč
Regular price
1.290,00 Kč
825,62 Kč
excl. VAT
Unit price
/
Unavailable
Product description
This solar MPPT controller uses innovative technology with a transfer efficiency of up to 99%. The controller displays the operating data and operating status of the control unit on the front panel. Of course, it also has a fully automatic electronic protection function.
Technical parameters:
- system voltage: 12 V / 24 V automatic detection
- maximum charging current: 10 A
- PV voltage: 10-40V / 20-65V
- PV over-voltage protection: 65V
- MPPT efficiency: 99%
- battery types: 12V or 24V rechargeable lead batteries (AGM, GEL) / LIthium-iron phosphate batteries
- self consumption standby: <40mA
- self consumption with load: <130mA
- regular charge voltage: 14.6V
- float charge voltage: 13.8V / 27.6V
- over charge disconnection: 17V / 34V
- over discharge disconnection: 11V
- over discharge recovery: 12.8V
- temperature compensation: -3mV / ° C
- cable cross section: max. 16mm2
- working temperature: -25 ° C ~ + 55 ° C
- protection: IP20
- dimensions: 172 x 126 x 75 mm
