SOLARFAM 180Wp solar island set, 12V, battery 100Ah, inverter 230VAC 600W

Solar island kit with a good price/performance ratio for places without electricity. The assembly is designed economically, and intended for lower energy consumption. Ideal for garden houses, gazebos, cabins, boats, or even motorhomes where the purchase price is critical. The higher capacity back-up battery can supply power to appliances for longer periods of time.

Caution! The installation of a solar system must only ever be carried out by a suitably qualified person!

WARNING: The photo of the assembly is for illustration purposes only. The components supplied in reality may differ from those shown in the picture. This does not affect the listed parameters or the function of the assembly.

The assembly operates with a system voltage of 12V.

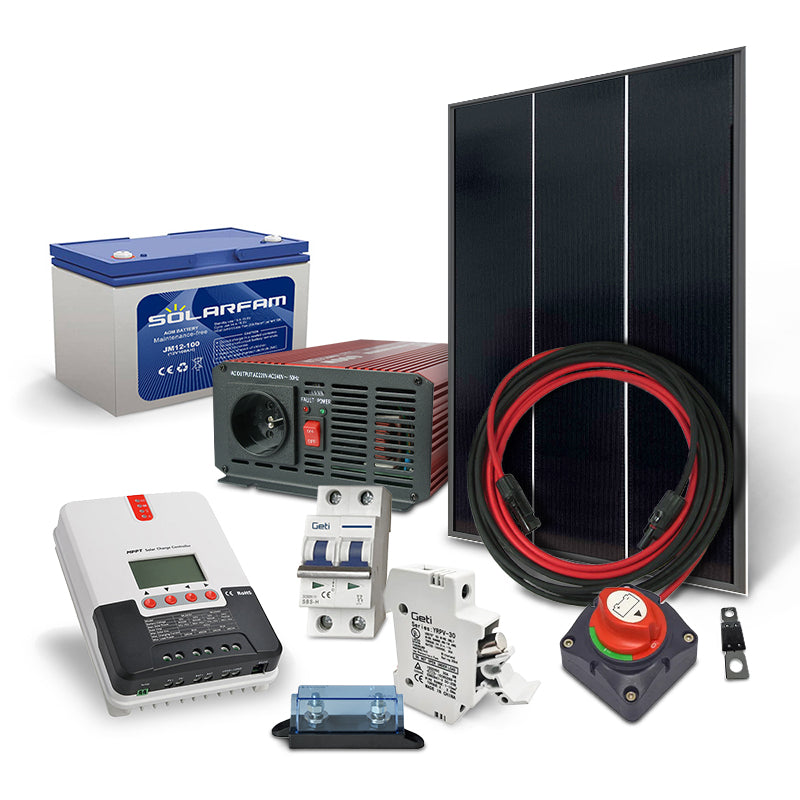

The solar system contains the following components:

1x Solar panel 12V/180W monocrystalline shingle black frame 1230x705x30mm SOLARFAM Cat.No.: 04280311
1x Solar controller Carspa MPPT 12-24V/20A Cat.no.: 04280270
1x DC circuit breaker 16A double pole GETI GF-J01 Cat.No.: 04290185
1x Battery fuse disconnector 32A "Cat.No.: 04290199
1x Battery disconnector GETI GF-S01 Cat. no. 04290202
1x Solar cable SOLARFAM 2x10.0M-4mm2 red-black "Cat. no.: 04290056
1x CARSPA P600 12V/230V 600W pure sine wave USB voltage converter Cat.No.: 04230424
1x Victron MEGA fuse holder "Cat. no.: 04290022
1x MEGA fuse for photovoltaic systems 100A/32V Cat.No.: 04290015
1x Solarfam 100 Ah lead-carbon battery Cat. no.: 04250527

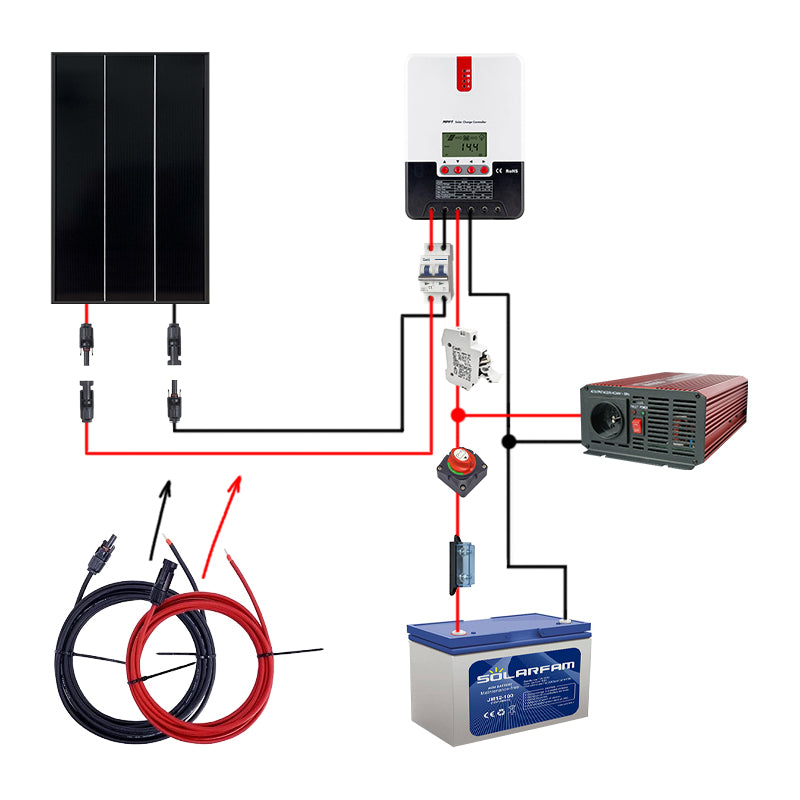

The kit includes a set of two 10m long cables. The ends of the cables are pressed with MC4 connectors used for connection to the solar panel. Part of the cable will also be used to connect the solar controller and the battery. The inverter is equipped with DC power cables with clamps.

- Install a safety disconnect switch to the PV panel on the positive cable between the panel and the controller
- install the battery fuse disconnector on the positive cable as close to the battery as possible
- install the fuse disconnector to the inverter on the positive power cable of the inverter

The assembly does not include mounting components. They must be ordered separately according to the planned placement method.
This is an oversized item and is not covered by free shipping. Delivery time from order creation may increase by 3-4 working days.

We reserve the right to change components based on the current availability of items without notice. The change does not affect the functionality of the assembly.
