Solar island set SOLARFAM 200Wp, 12V, battery 150Ah, inverter 230VAC 600W

Solar island kit with a good price/performance ratio for places without electricity. The assembly is designed economically, and intended for lower energy consumption. Ideal for garden houses, gazebos, cabins, boats, or even motorhomes where the purchase price is critical. The higher capacity back-up battery can supply power to appliances for longer periods of time.

Caution! The installation of a solar system must only ever be carried out by a suitably qualified person!

WARNING: The photo of the assembly is for illustration purposes only. The components supplied in reality may differ from those shown in the picture. This does not affect the listed parameters or the function of the assembly.

The assembly operates with a system voltage of 12V.

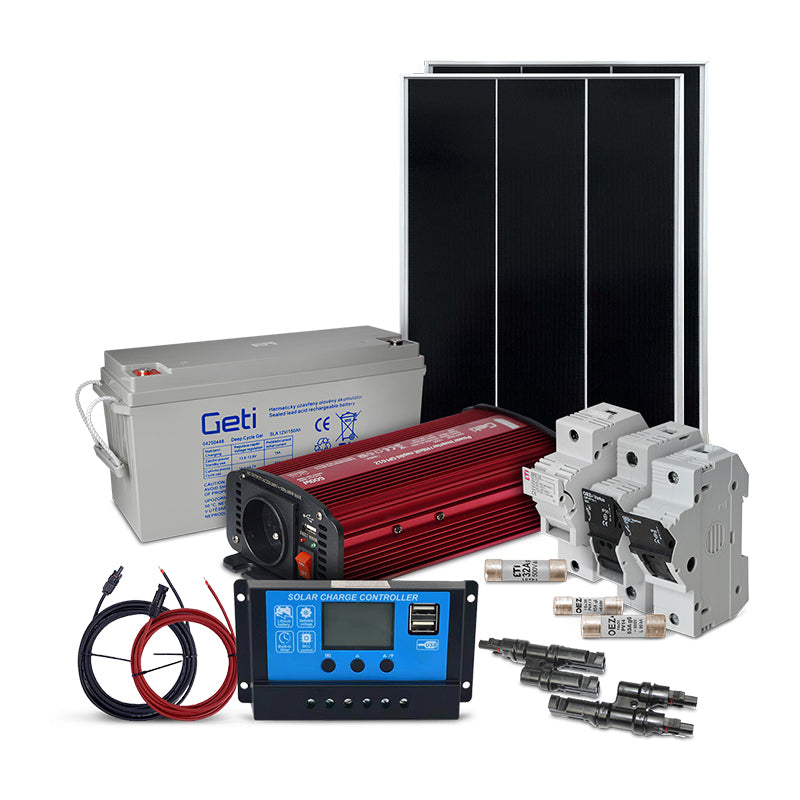

The solar system contains the following components:

2x SOLARFAM 12V/100W shingle monocrystalline solar panel Cat. no.: 04280456
1x Lead acid AGM battery Solarfam 12V 150Ah "Cat. no.: 04250508
1x DC circuit breaker 16A 2-pole GETI, cat.no.: 04290185
1x GETI GPIU 612S 12V/230V 600W voltage converter, cat. no. 04230595
1x Battery disconnector GETI GF-S02, cat. no.: 04290201
1x Solar controller SOLARFAM PWM 12-24V/30A, cat.-no.: 04280139
1x SOLARFAM solar cable 2x10.0M-4mm2 red-black "Cat.No.: 04290056"
1x Merge connector MC4 negative "Cat. no.: 03360267"
1x MC4 merge connector positive "Cat. no.: 03360268"
1x Battery fuse disconnector 32A "Cat. no.: 04290199

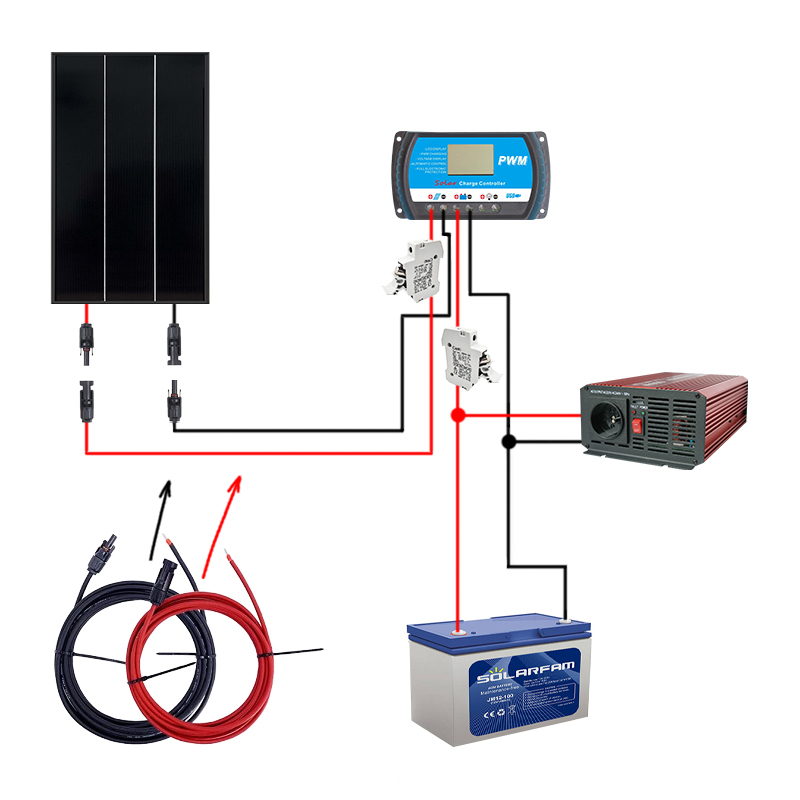

The assembly includes a set of two 10m long cables. The ends of the cables are pressed with MC4 connectors used for connection to the solar panel. Part of the cable will also be used to connect the solar controller and the battery. The inverter is equipped with DC power cables with clamps.

- Install a safety disconnect switch to the PV panel on the positive cable between the panel and the controller
- install the battery fuse disconnector on the positive cable as close to the battery as possible
- install the fuse disconnector to the inverter on the positive power cable of the inverter

The assembly does not include mounting components. They must be ordered separately according to the planned placement method.
This is an oversized item and is not covered by free shipping. Delivery time from order creation may increase by 3-4 working days.

We reserve the right to change components based on the current availability of items without notice. Any change does not affect the functionality of the assembly.
