ST128 proximity flick switch
Bezdotykový IR spínač - napájení 12–24VDC, max. zátěž 2A (24W při 12V / 48W při 24V), IR senzor detekující překážku do vzdálenosti 6 cm, dva režimy ovládání: mávnutím ruky nebo pohybem dveří, rozměry 15 × 8 × 53 mm, kruhový rámeček průměr 18 mm, přívodní kabely 1 m, montáž lepící páskou nebo do otvoru, balení obsahuje reflexní plošku a CZ manuál
In stock 5 pcs
Expected shipping:
15.06.2026
Regular price
130,00 Kč
107,44 Kč
excl. VAT
Unit price
/
Unavailable
HADEX | SKU:
04151451

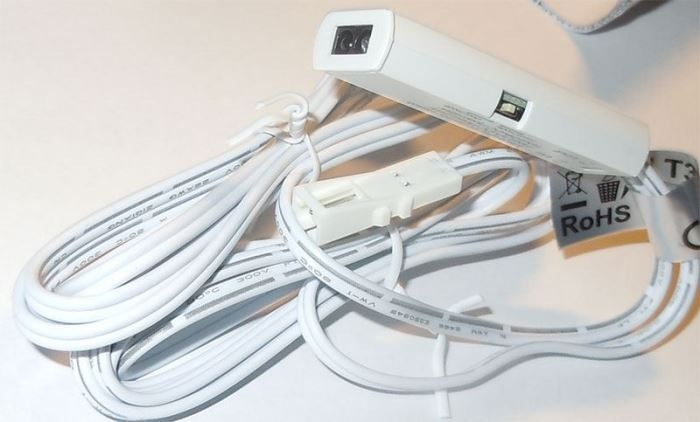

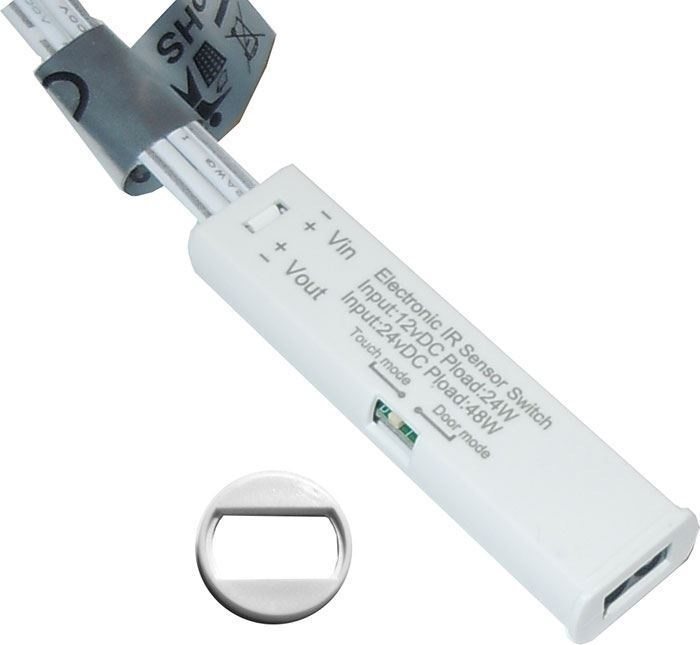

ST128 proximity flick switch
Regular price
130,00 Kč
107,44 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The contactless switch is primarily designed for wardrobes or smaller spaces where the installation of a classic switch is difficult. It is operated by waving your hand in front of the sensor or by moving the door, e.g. from a wardrobe with a reflective panel in front of the sensor. The motion pulses alternately switch the lighting on and off.
Technical parameters:
- Sensor used: IR transmitter and receiver detecting an obstacle within a distance of 6cm.
- Power supply: 12-24VDC
- Load: max.2A (24W/12V, 48W/24V)
- Supply cables: power-1m, lighting-1m
- Mode switch: wave or move the door

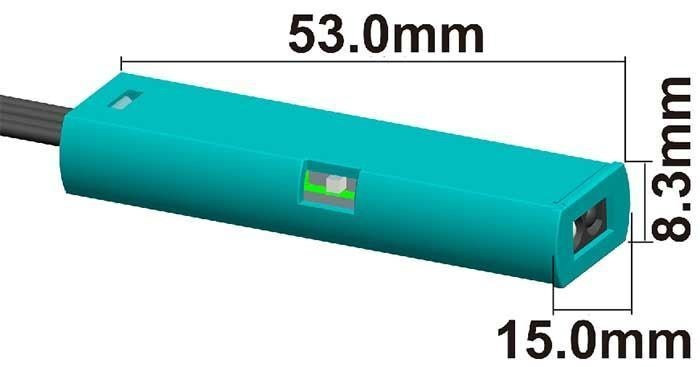

- Dimensions: 15×8×53mm, circular bezel diameter 18mm
Package contents:
- ST128 switch
- Double-sided adhesive tape for mounting on a pad
- circular frame for mounting in the hole
- Reflective surface sticker
- EN manual
Technical parameters:
- Sensor used: IR transmitter and receiver detecting an obstacle within a distance of 6cm.
- Power supply: 12-24VDC
- Load: max.2A (24W/12V, 48W/24V)
- Supply cables: power-1m, lighting-1m
- Mode switch: wave or move the door
- Dimensions: 15×8×53mm, circular bezel diameter 18mm
Package contents:
- ST128 switch
- Double-sided adhesive tape for mounting on a pad
- circular frame for mounting in the hole
- Reflective surface sticker
- EN manual
