Memory touch switch dimmer TD311 into the AL profile

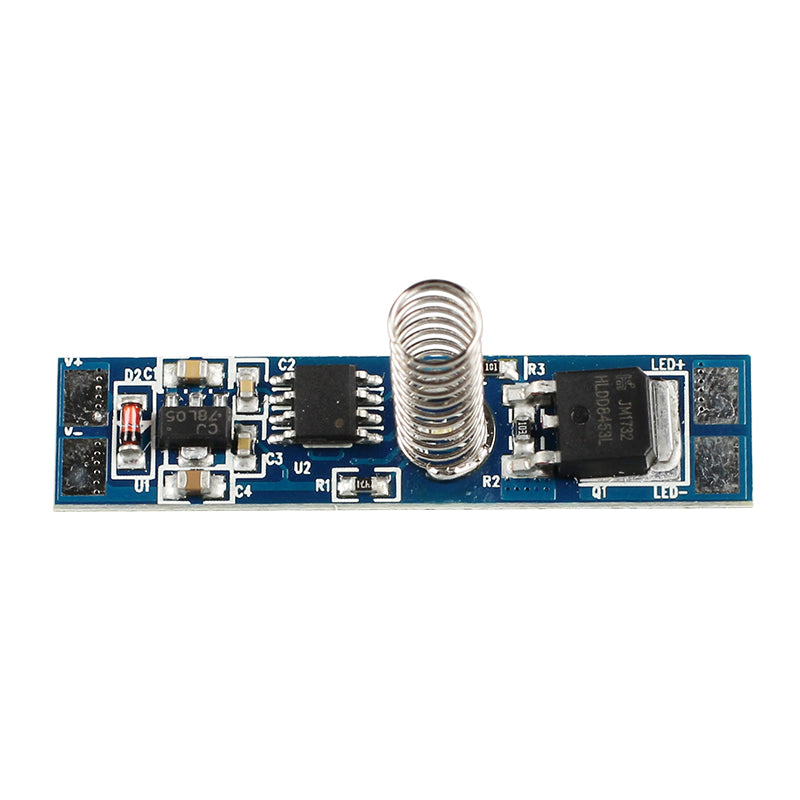

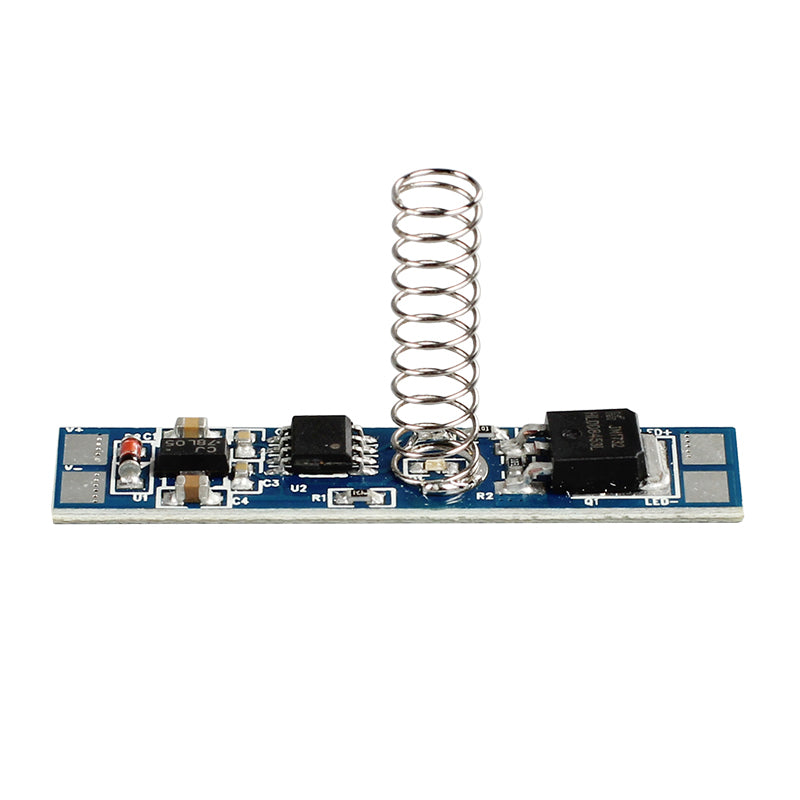

Switch for AL profiles is designed to control mainly LED strips at the touch of a finger. With the switch, the tapes can be switched on / off or dimmed. Due to its small size, the PCB can be placed in most Al profiles without modification.
Switching the switch on / off is done by briefly placing your finger or palm in the place of LED switch which you will appreciate especially in dark rooms.
To activate dimming, hold your finger on the light until you reach the desired brightness level.
The brightness is remembered both after switching off the light and also after disconnecting it from the power supply. After switching the light on and off it will light with a preset intensity.

Use: furniture, additional illumination of dark places
Mounting: in aluminum profiles
Function: ON / OFF, dimming, 0 V memory

Parameters:
- Input voltage: 12V - 24V DC.
- Input current: 8A max.
- Output power: 12V DC = 96W, 24V DC = 192W.
- Dimensions: 43 x 10 mm
