Cable connector GCC002 3x1.5mm2, 3.5-7mm, IP68
New
Vodotěsná kabelová spojka - typ GCC002, šroubovací, 2 × 3piny, průřez vodiče 0,5–1,5 mm2, jmenovité napětí 400V, jmenovitý proud 17,5A, krytí IP68, průměr kabelu 3,5–7 mm, těsnicí kroužek ze silikonové pryže, svorky z poniklované mědi, pracovní teplota -40 až +105°C, rozměry 65 × 20,3 mm, balení 1 ks
Will be restocked
Expected shipping:
10.08.2026
at our place
Regular price
68,00 Kč
56,20 Kč
excl. VAT
Unit price
/
Unavailable
OEM | SKU:
03391083
Cable connector GCC002 3x1.5mm2, 3.5-7mm, IP68
Regular price
68,00 Kč
56,20 Kč
excl. VAT
Unit price
/
Unavailable
Product description

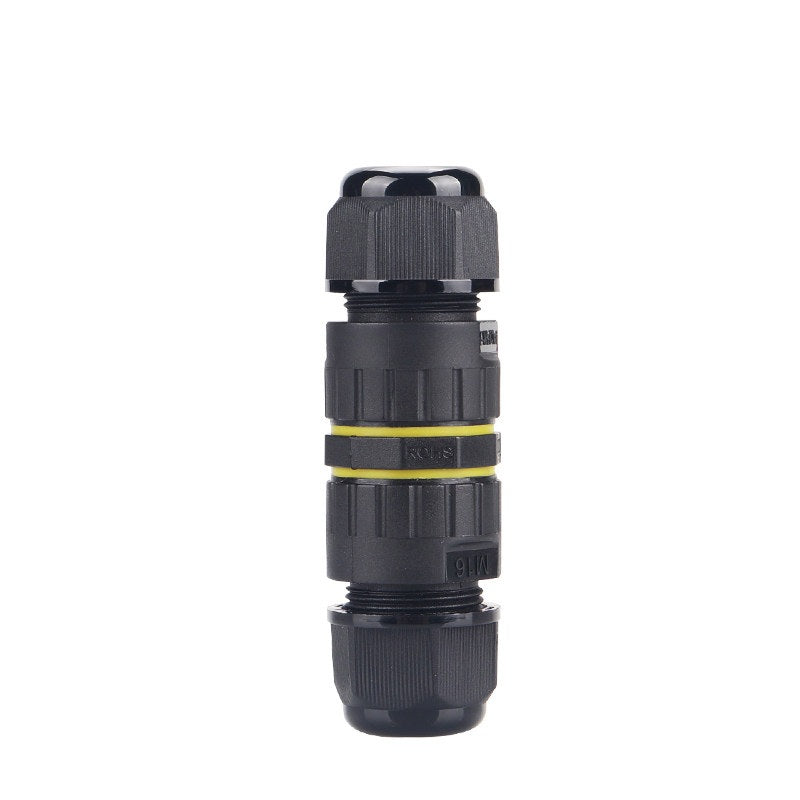

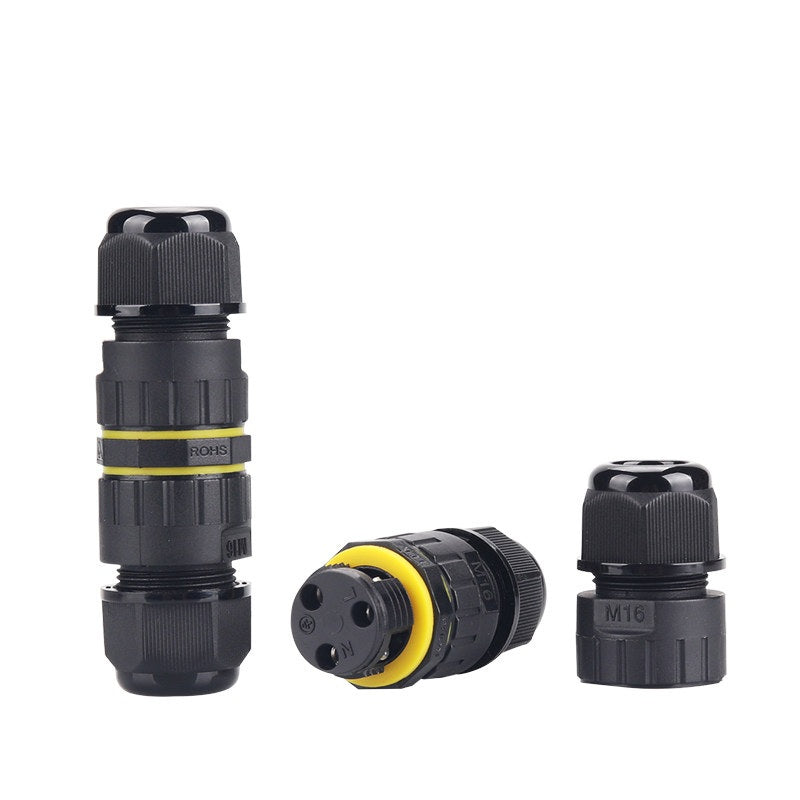

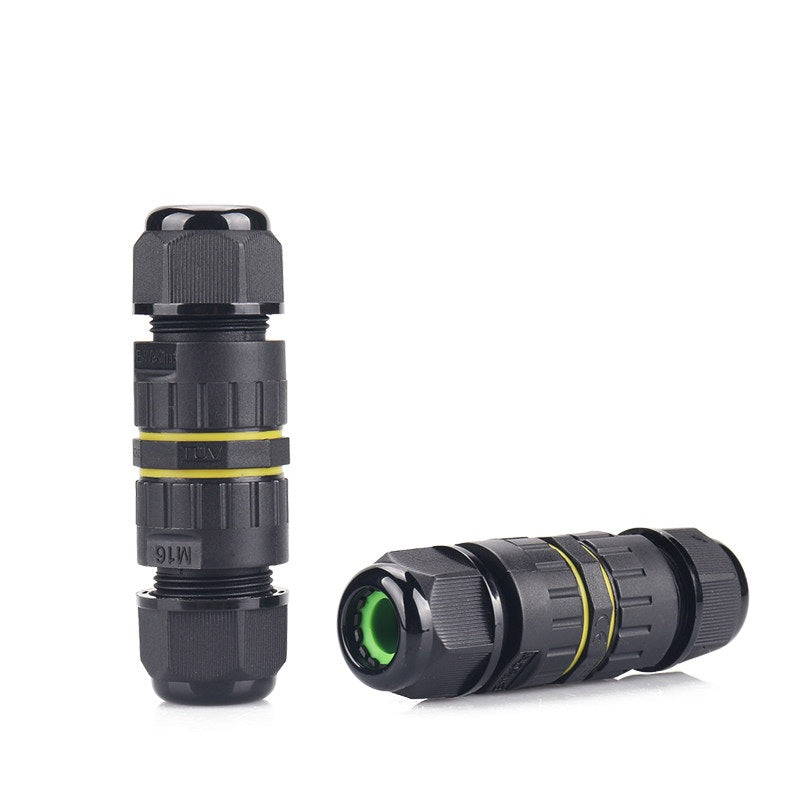

Screw-Type Waterproof Connector / Coupler
Technical Specifications:
- Number of contacts: 2 × 3 pins
- Wire cross-section: 0.5–1.5 mm2
- Protection rating: IP68
- Rated voltage: 400 V
- Rated current: 17.5 A
- Cable diameter: 3,5–7 mm
- Sealing ring material: Silicone rubber
- Terminal material: Nickel-plated copper
- Operating temperature: -40 °C to +105 °C
- Dimensions: 65 × 20.3 mm
Package includes: 1 pc
Technical Specifications:
- Number of contacts: 2 × 3 pins
- Wire cross-section: 0.5–1.5 mm2
- Protection rating: IP68
- Rated voltage: 400 V
- Rated current: 17.5 A
- Cable diameter: 3,5–7 mm
- Sealing ring material: Silicone rubber
- Terminal material: Nickel-plated copper
- Operating temperature: -40 °C to +105 °C
- Dimensions: 65 × 20.3 mm
Package includes: 1 pc
