Kit TIPA PT003B Amplifier 2x100W with TDA7294
Kit TIPA PT003B Amplifier 2x100W with TDA7294
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
429,00 Kč
354,55 Kč
excl. VAT
Unit price
/
Unavailable
TIPA | SKU:
09810556
Kit TIPA PT003B Amplifier 2x100W with TDA7294
Regular price
429,00 Kč
354,55 Kč
excl. VAT
Unit price
/
Unavailable
Product description

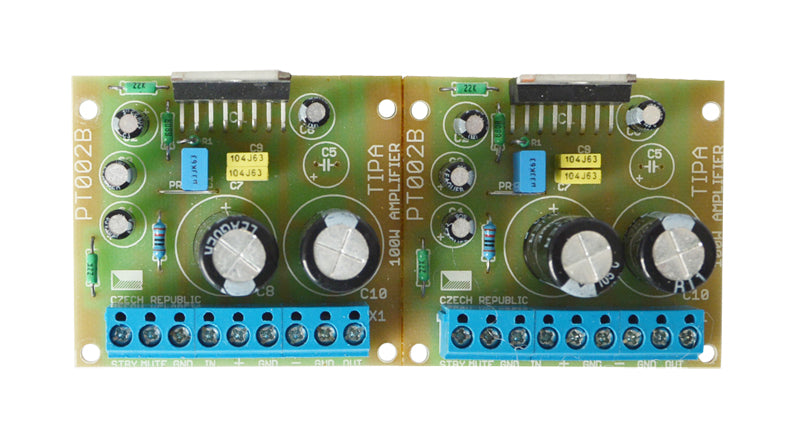

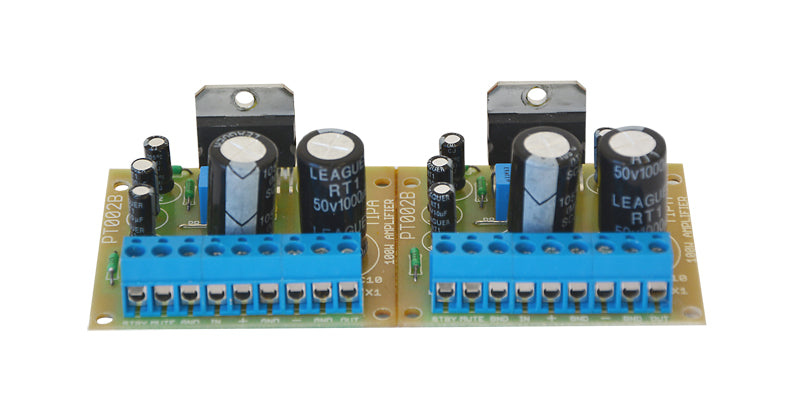

This kit which is used as stereo Hi-Fi amplifier in class AB. Thanks to the small dimensions, fuse for overheat or overcurrent can be used in many different aplications. Shock of current during starting up or shutting down is minimum.
Operating voltage: +/- 10 to 42 V DC (symetrical)
In/out impedance: 22k Ohm / min 4 Ohm
Output power: 70 W (+/- 36 V, Rrep = 8 Ohm) or 100 W (+/- 36 V, Rrep = 4 Ohm)
Distortion: 0.005% (Output power = 5 W)
Input sensivity: 650 mV
Frequency range (–3dB): 20 Hz – 100 kHz
PCB dimensions: 117x52 mm (4.606x2.047 inch)
For mono version see PT002B.
More kits TIPA and technical support at http://stavebnice.tipa.eu
Operating voltage: +/- 10 to 42 V DC (symetrical)
In/out impedance: 22k Ohm / min 4 Ohm
Output power: 70 W (+/- 36 V, Rrep = 8 Ohm) or 100 W (+/- 36 V, Rrep = 4 Ohm)
Distortion: 0.005% (Output power = 5 W)
Input sensivity: 650 mV
Frequency range (–3dB): 20 Hz – 100 kHz
PCB dimensions: 117x52 mm (4.606x2.047 inch)
For mono version see PT002B.
More kits TIPA and technical support at http://stavebnice.tipa.eu
