Benchtop Digital Multimeter UNI-T UT8806E
Recommended
Stolní digitální multimetr - zobrazitelná hodnota až 2 000 000, 4,3palcový TFT LCD displej 480 × 272, True RMS, automatické i manuální nastavení rozsahů, měření AC/DC napětí a proudu, odporu, kapacity, teploty, frekvence, šířky pulsu, testování diod a spojitosti, konektivita LAN, USB, RS-232C a GPIB (volitelné), funkce MIN/MAX/AVG, záznam dat se softwarem, určeno pro laboratoře a automatizované testovací systémy, záruka 3 roky
Last piece
Expected shipping:
15.06.2026
Regular price
19.990,00 Kč
16.520,66 Kč
excl. VAT
Unit price
/
Unavailable
UNI-T | SKU:
07730189
Benchtop Digital Multimeter UNI-T UT8806E
Regular price
19.990,00 Kč
16.520,66 Kč
excl. VAT
Unit price
/
Unavailable
Product description
This product comes with a 3-year warranty.

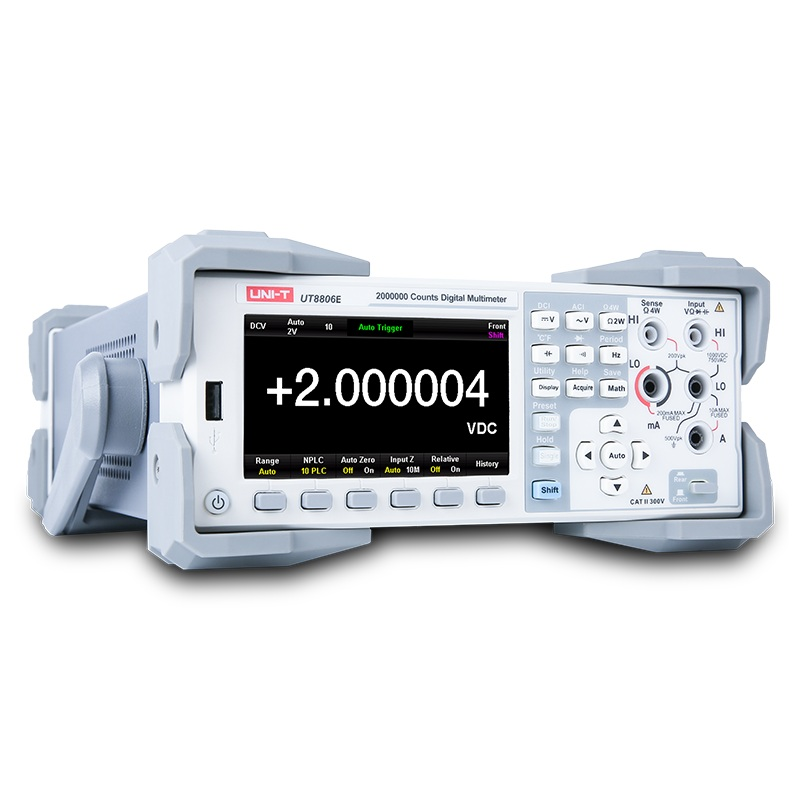

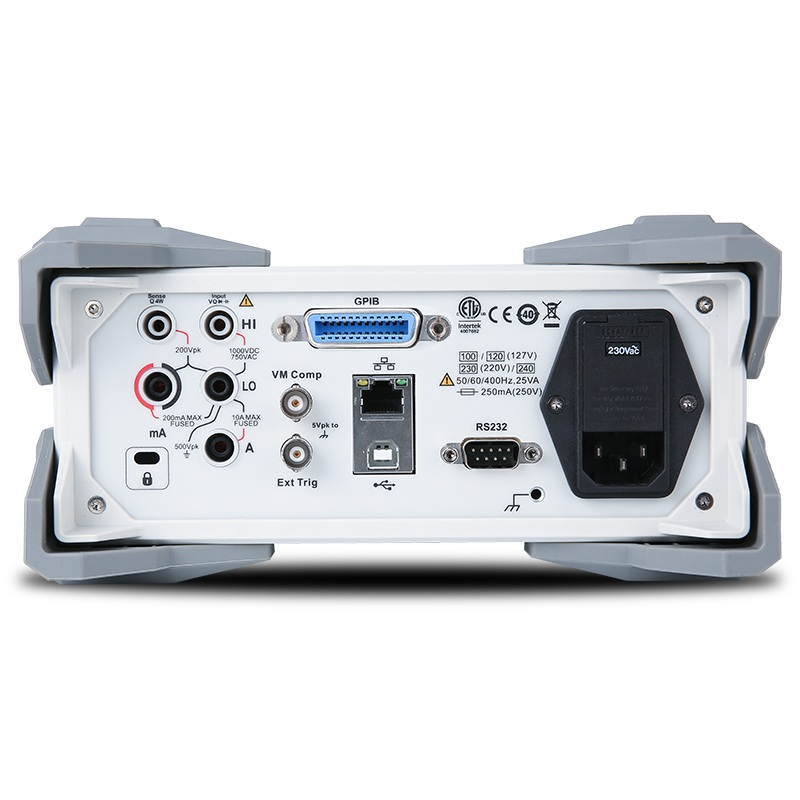

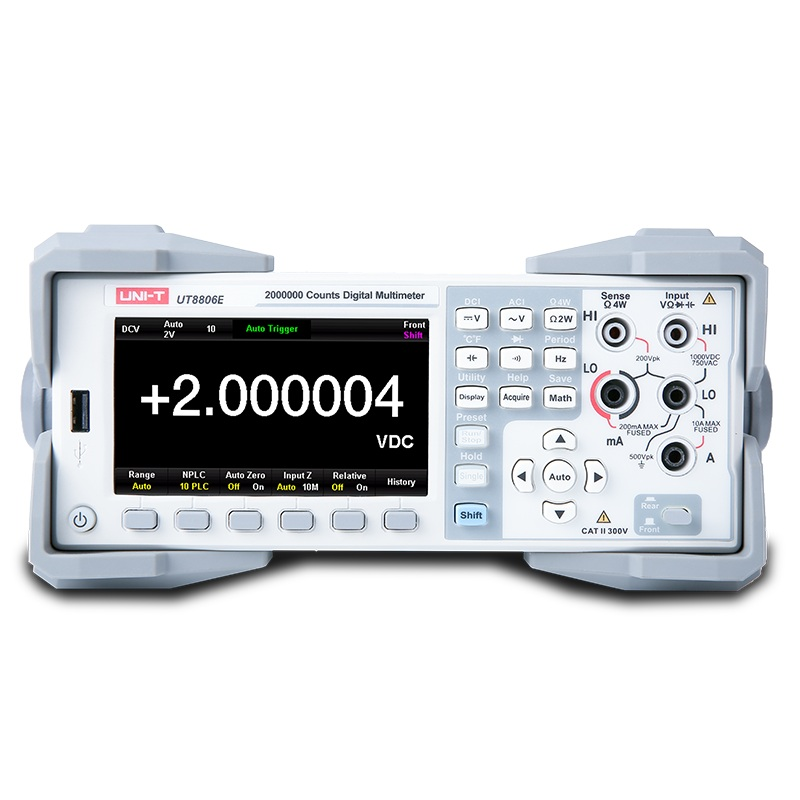

The UT8806E is a benchtop digital multimeter with a maximum display value of 2,000,000 with automatic or optional manual range adjustment, color display and true RMS measurement function. It features high accuracy, multi-functionality and full automation. The UT8806E is equipped with a 4.3-inch TFT display with a resolution of 480 x 272, supports LAN, USB, RS-232C and GPIB (optional) operation, and is suitable for high-precision measurements in laboratories and automated test systems, development, control and maintenance.
The UT8806E multimeter comes with software that allows you to record data and plot it on a graph. This software is also available on the UNI-T website.
Product parameters:
- display type: 4.3" TFT-LCD
- number of display places: 6.5 digits 2,000,000, providing high-quality and accurate measurement
- Backlight: yes
- True RMS: : measurement of the true effective value
- bar graph
- graphical user interface, simple and convenient operation
- multiple help system for easy access to information
- dual window display function
- supports USB and local storage for file management
- mathematical functions for easy data analysis, such as min/max/average, standard deviation, bar graph, histogram and more.
- measurement: capacitance, frequency, AC + DC voltage, AC + DC current, resistance, resistance (four-wire), resistance (two-wire), temperature, continuity. circuit
Technical parameters:
DC voltage measurement: 200mV / 2V / 20V / 200V/ 1000V
DC voltage measurement accuracy: ±(0.0015% + 0.0004% range), ±(0.002% + 0.0003% range), ±(0.002% + 0.0005% range), ±(0.002% + 0.0015% range)
DC current measurement: 2µA / 20µA / 0.2mA / 2mA / 20mA / 200mA / 2A / 10A
DC current measurement accuracy: ±(0.006% + 0.008% range), ±(0.007% + 0.001% range), ±(0.009% + 0.001% range), ±(0.009% + 0.002% range), ±(0.009% + 0.01% range), ±(0.045% + 0.015% range)
AC voltage measurement: 200mV / 2V / 20V / 200V / 750V
AC voltage measurement accuracy: ±(0.04% + 0.02% range), ±(0.1% + 0.04% range), ±(0.35% + 0.02% range), ±(0.55% + 0.08% range), ±(1% + 0.02% range), ±(4% + 0.5% range)
AC current measurement: 200µA / 2mA / 20mA / 200mA / 2A / 10A
Resistance measurement range: 20? / 200? / 2k? / 20k? / 200k? / 2M? / 10M? / 100M? / 1G?
Capacitance measurement range: 2nF / 20nF / 200nF / 2µF/20µF/200µF/2mF/20mF/100mF
Capacitance measurement accuracy: ±(0.9%+ 0.1% range), ±(1.8%+ 2.4% range), ±(2.8%+ 0.1% range)
Frequency measurement range: 3Hz to 1MHz
Frequency measurement accuracy: ±(0.1% + 0.04% range), ±(1% + 0.04% range)
Diode test: 0 to 4V
Measurement: capacitance, frequency, AC voltage, DC voltage, resistance, resistance (four-wire), resistance (two-wire), AC current, DC current, continuity
Temperature measurement: supports thermocouples and RTDs
Temperature: -270°C to 1760°C °C
Dimensions: 215 x 88 x 391 mm
Weight: 3.4 kg
Accessories:
- power cable
- test leads
- USB cable
- RS-232 cable
Manufacturer: UNI-T
https://instruments.uni-trend.com/products/digital-multimeters/UT8806E
The UT8806E is a benchtop digital multimeter with a maximum display value of 2,000,000 with automatic or optional manual range adjustment, color display and true RMS measurement function. It features high accuracy, multi-functionality and full automation. The UT8806E is equipped with a 4.3-inch TFT display with a resolution of 480 x 272, supports LAN, USB, RS-232C and GPIB (optional) operation, and is suitable for high-precision measurements in laboratories and automated test systems, development, control and maintenance.
The UT8806E multimeter comes with software that allows you to record data and plot it on a graph. This software is also available on the UNI-T website.
Product parameters:
- display type: 4.3" TFT-LCD
- number of display places: 6.5 digits 2,000,000, providing high-quality and accurate measurement
- Backlight: yes
- True RMS: : measurement of the true effective value
- bar graph
- graphical user interface, simple and convenient operation
- multiple help system for easy access to information
- dual window display function
- supports USB and local storage for file management
- mathematical functions for easy data analysis, such as min/max/average, standard deviation, bar graph, histogram and more.
- measurement: capacitance, frequency, AC + DC voltage, AC + DC current, resistance, resistance (four-wire), resistance (two-wire), temperature, continuity. circuit
Technical parameters:
DC voltage measurement: 200mV / 2V / 20V / 200V/ 1000V
DC voltage measurement accuracy: ±(0.0015% + 0.0004% range), ±(0.002% + 0.0003% range), ±(0.002% + 0.0005% range), ±(0.002% + 0.0015% range)
DC current measurement: 2µA / 20µA / 0.2mA / 2mA / 20mA / 200mA / 2A / 10A
DC current measurement accuracy: ±(0.006% + 0.008% range), ±(0.007% + 0.001% range), ±(0.009% + 0.001% range), ±(0.009% + 0.002% range), ±(0.009% + 0.01% range), ±(0.045% + 0.015% range)
AC voltage measurement: 200mV / 2V / 20V / 200V / 750V
AC voltage measurement accuracy: ±(0.04% + 0.02% range), ±(0.1% + 0.04% range), ±(0.35% + 0.02% range), ±(0.55% + 0.08% range), ±(1% + 0.02% range), ±(4% + 0.5% range)
AC current measurement: 200µA / 2mA / 20mA / 200mA / 2A / 10A
Resistance measurement range: 20? / 200? / 2k? / 20k? / 200k? / 2M? / 10M? / 100M? / 1G?
Capacitance measurement range: 2nF / 20nF / 200nF / 2µF/20µF/200µF/2mF/20mF/100mF
Capacitance measurement accuracy: ±(0.9%+ 0.1% range), ±(1.8%+ 2.4% range), ±(2.8%+ 0.1% range)
Frequency measurement range: 3Hz to 1MHz
Frequency measurement accuracy: ±(0.1% + 0.04% range), ±(1% + 0.04% range)
Diode test: 0 to 4V
Measurement: capacitance, frequency, AC voltage, DC voltage, resistance, resistance (four-wire), resistance (two-wire), AC current, DC current, continuity
Temperature measurement: supports thermocouples and RTDs
Temperature: -270°C to 1760°C °C
Dimensions: 215 x 88 x 391 mm
Weight: 3.4 kg
Accessories:
- power cable
- test leads
- USB cable
- RS-232 cable
Manufacturer: UNI-T
https://instruments.uni-trend.com/products/digital-multimeters/UT8806E
