Welding inverter PROCRAFT RWI-320
Recommended
Svářecí invertor MMA - technologie IGBT, napájení 220–240V / 50Hz, svařovací proud 20–160A, příkon 5,3kW, pracovní cyklus 40% při 40°C, průměr elektrod 1,6–4,0 mm, funkce Arc Force, Anti Stick a Hot Start, LCD displej, hmotnost 4,8 kg, v balení svářečský štít, kabel s držákem elektrod, zemnící kleště a kombinovaný kartáč s kladivem
In stock 4 pcs
Expected shipping:
15.06.2026
Regular price
3.264,00 Kč
2.697,52 Kč
excl. VAT
Unit price
/
Unavailable
PROCRAFT | SKU:
06444139
Welding inverter PROCRAFT RWI-320
Regular price
3.264,00 Kč
2.697,52 Kč
excl. VAT
Unit price
/
Unavailable
Product description

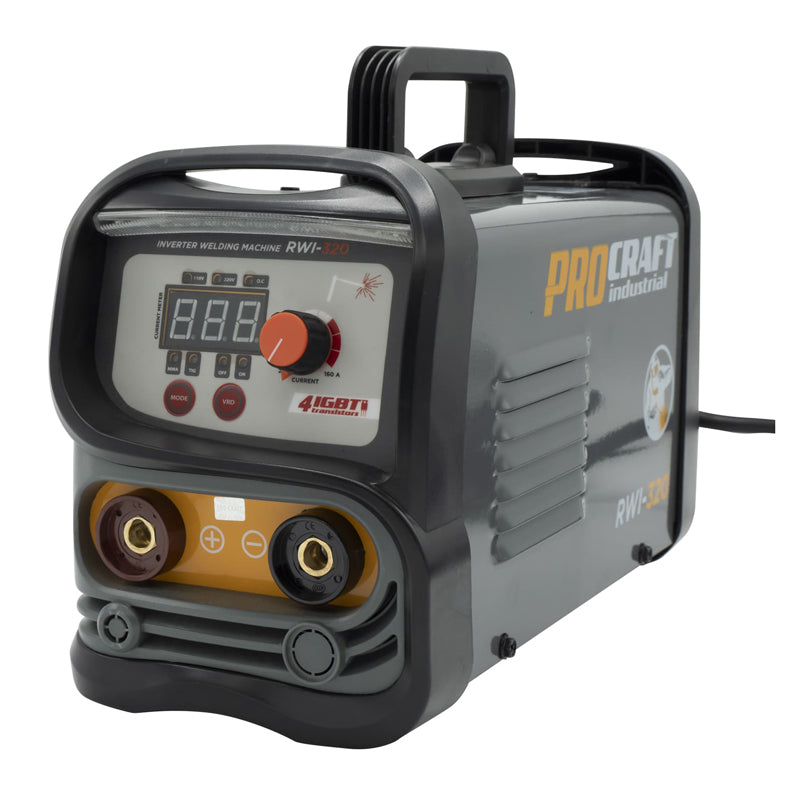

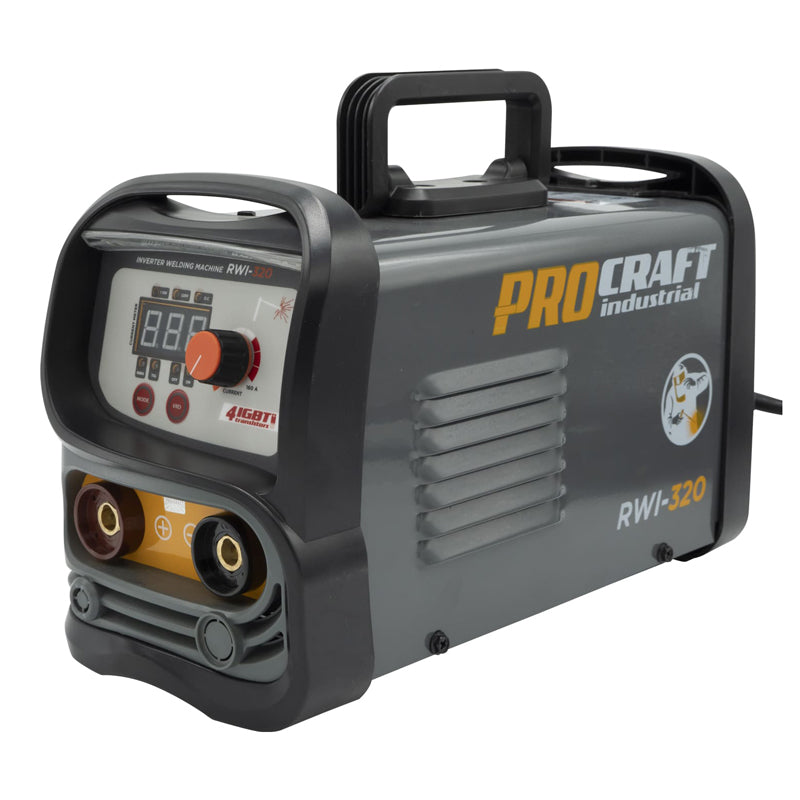

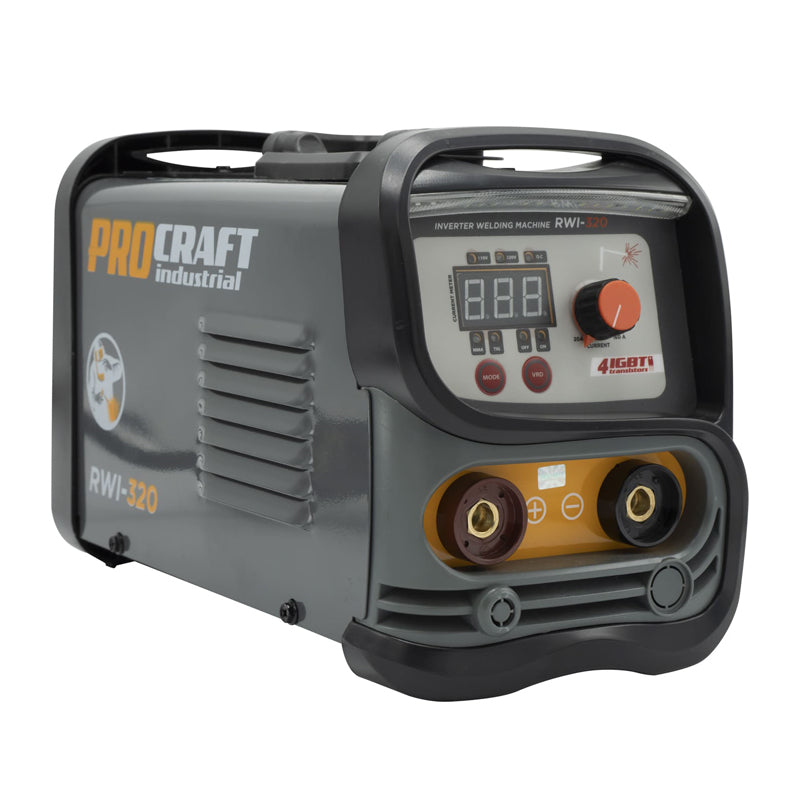

The Procraft RWI-320 welding inverter is designed for manual welding using the MMA method. IGBT power transistors guarantee long trouble-free operation. Welding current regulation in the range of 20-160 A allows you to set optimal parameters when working with different metals. Welding electrodes with a diameter of 1.6 to 4.0 mm can be used. The arc force, anti stick, hot start functions guarantee quick and easy welding. The current welding current is displayed using the LCD display. The delivery includes a welding shield, a cable with an electrode holder, a cable with grounding clamps and a wire brush combined with a slag hammer.
Technical parameters:
Voltage, V: 220-240
Frequency, Hz: 50
Weight, kg: 4.8
Current regulation range (A): 20-160 A
Duty cycle at maximum current (%): 40% at 40 ?
Power consumption (kW): 5.3
Electrode diameter (mm): ?1.6-4.0 mm
Protection degree: IP21S
Efficiency (%): 80%
Max. current (A): 300 A
Welding torch cable length, m: 2.2
Maximum electrode holder current (A): 200 A
Electrode holder cable length: 2.8
40% duty cycle: 160A / 26.4V
60% duty cycle: 113A / 24.5V
100% duty cycle: 87A / 23.5V
Technical parameters:
Voltage, V: 220-240
Frequency, Hz: 50
Weight, kg: 4.8
Current regulation range (A): 20-160 A
Duty cycle at maximum current (%): 40% at 40 ?
Power consumption (kW): 5.3
Electrode diameter (mm): ?1.6-4.0 mm
Protection degree: IP21S
Efficiency (%): 80%
Max. current (A): 300 A
Welding torch cable length, m: 2.2
Maximum electrode holder current (A): 200 A
Electrode holder cable length: 2.8
40% duty cycle: 160A / 26.4V
60% duty cycle: 113A / 24.5V
100% duty cycle: 87A / 23.5V
