Central locking system BLOW 1467

Four-door universal central locking system for 4 doors with two remote controls.

Properties:

- Versatile: fits most cars
- Compatible with car alarms
- Simple installation

Controller Features:

- Power supply: 12V +/- 2V DC
- Closing / opening time: 0.5 - 0.6s
- Standby current: <20mA

Motorbike Features:

- Operating voltage: DC 12V
- Power consumption:> 4A
- Operating humidity:> 75%
- Operating temperature: -40 ~ + 70 ° C
- Lifetime: <100,000 cycles
- Response time: 0.2 s
- Swivel arm of the motor: 360 °
- Load capacity: 7 kg

Remote Control Features:

- Power supply: 12V or 6V
- Power consumption during operation: <8 mA
- Power consumption at rest: <1 uA
- Signal strength: 80 dB
- Signal frequency: 300 MHz - 350 MHz

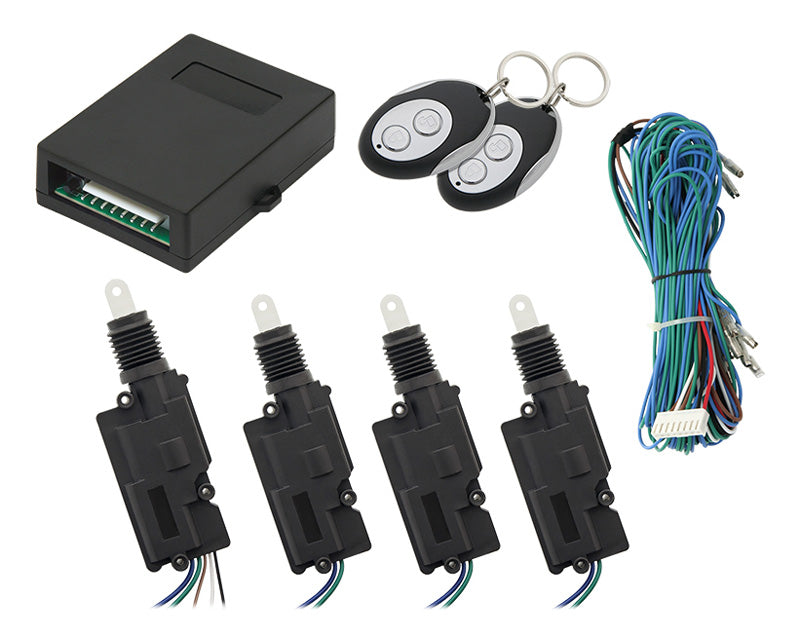

Package contents:

- Control unit
- 1x 5-wire motor
- 3x 2-wire motor
- 2x Remote Control
- Connecting cables

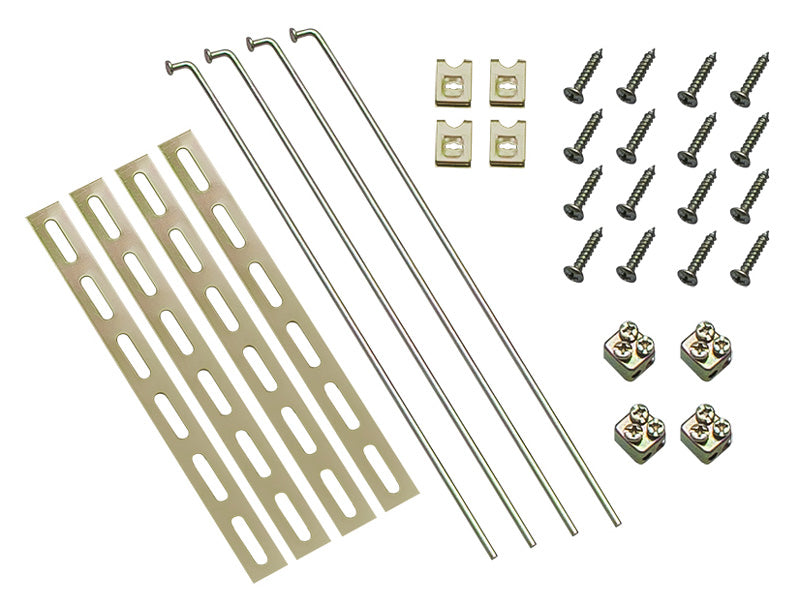

- Installation accessories
- Connection scheme
