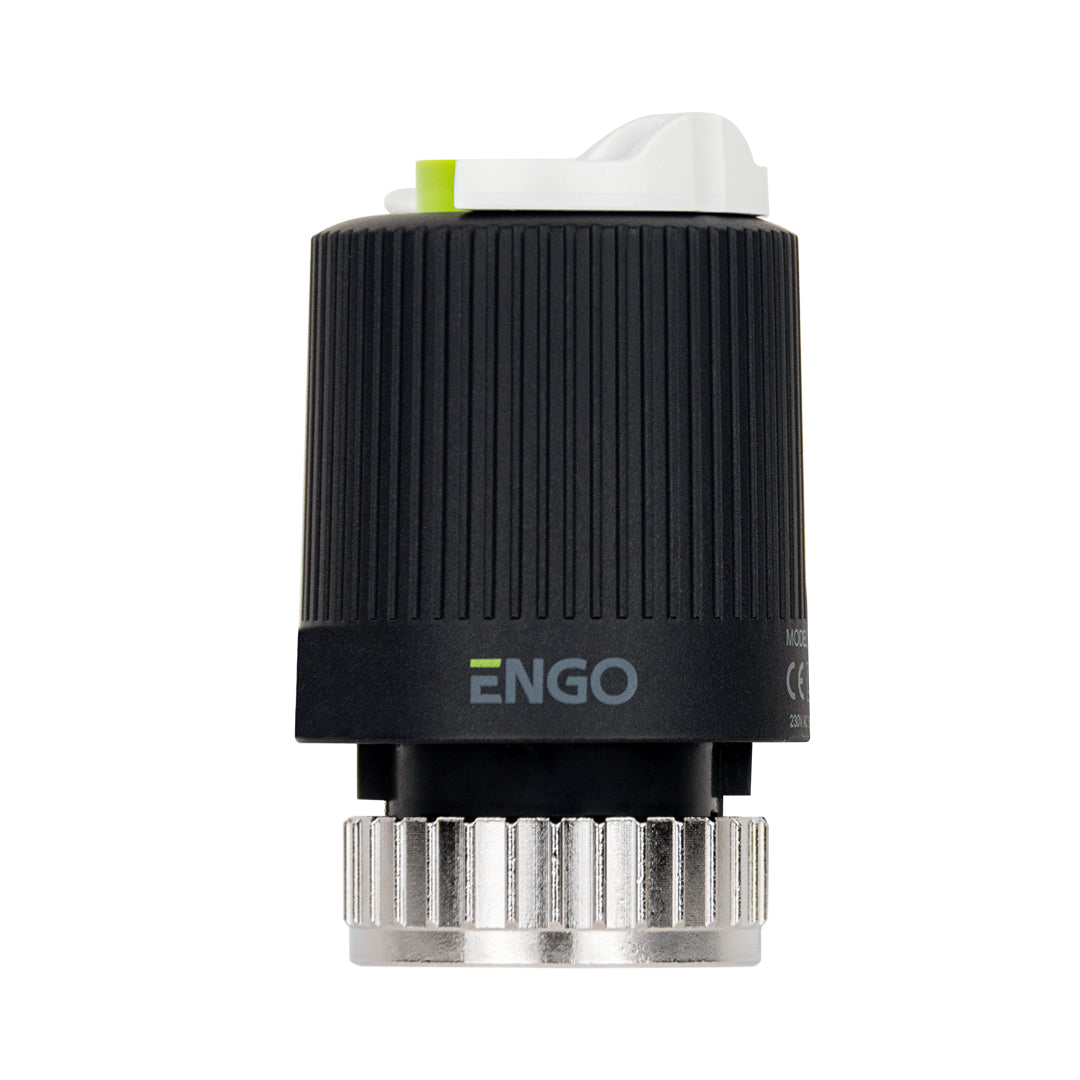

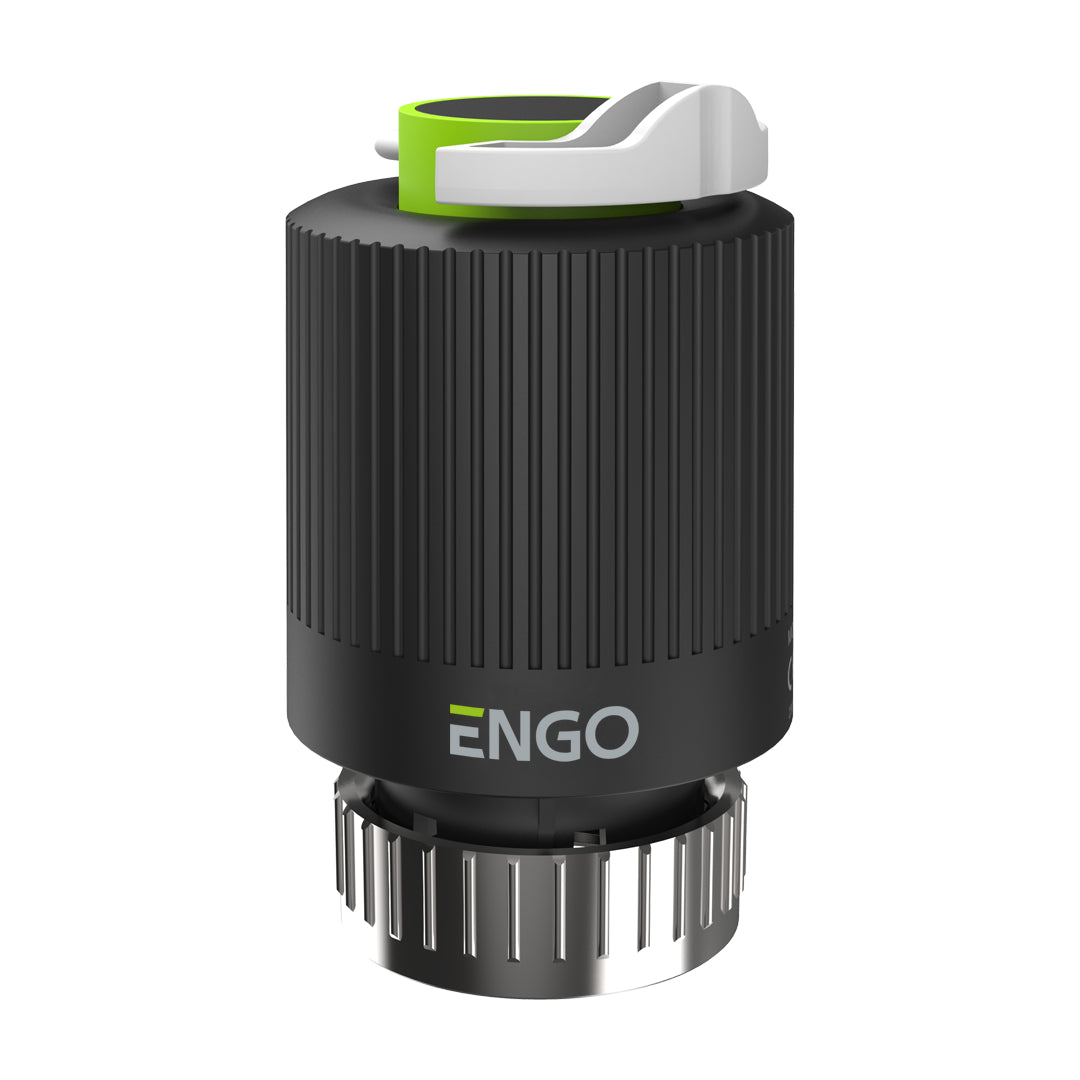

Thermoelectric drive ENGO E30NC-230
New
Termoelektrický pohon - napájení 230V AC 50Hz, závit M30 × 1,5 mm, typ NC (bez napětí uzavřený), příkon 2W, spínací proud 300mA/200ms, tlaková síla 100N ±20%, max. zdvih 4,5mm, krytí IP54/II, délka kabelu 90 cm, rozměry O41 × 65 mm, skladovací teplota -25 až +60°C, okolní teplota max. 60°C, určeno pro podlahové vytápění a zónové ventily
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
ENGO | SKU:
06446821
Thermoelectric drive ENGO E30NC-230
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Thermoelectric actuator 230 V, M30x1,5, currentless, closed
The thermoelectric actuator is designed for use in underfloor heating systems. It can be used with thermostatic valves in the underfloor heating manifold or with zone valves. It allows you to open or close the flow of heating medium in a loop, giving you control over the temperature in the room. Works directly with the thermostat or indirectly via a central terminal block.
Technical parameters:
Type.
Thread: M30 x 1.5mm
Power supply: 230V AC 50Hz
Power input: 2W
Switching current: 300mA / 200ms
Force: 100N +/- 20%
Max. stroke: 4.5mm
Storage temperature: -25°C to +60°C
Ambient Temperature: + +60°C Max.
Degree of protection: IP 54/II
Cable length: 90cm
Dimensions [mm]: ? 41 x 65
The thermoelectric actuator is designed for use in underfloor heating systems. It can be used with thermostatic valves in the underfloor heating manifold or with zone valves. It allows you to open or close the flow of heating medium in a loop, giving you control over the temperature in the room. Works directly with the thermostat or indirectly via a central terminal block.
Technical parameters:
Type.
Thread: M30 x 1.5mm
Power supply: 230V AC 50Hz
Power input: 2W
Switching current: 300mA / 200ms
Force: 100N +/- 20%
Max. stroke: 4.5mm
Storage temperature: -25°C to +60°C
Ambient Temperature: + +60°C Max.
Degree of protection: IP 54/II
Cable length: 90cm
Dimensions [mm]: ? 41 x 65
