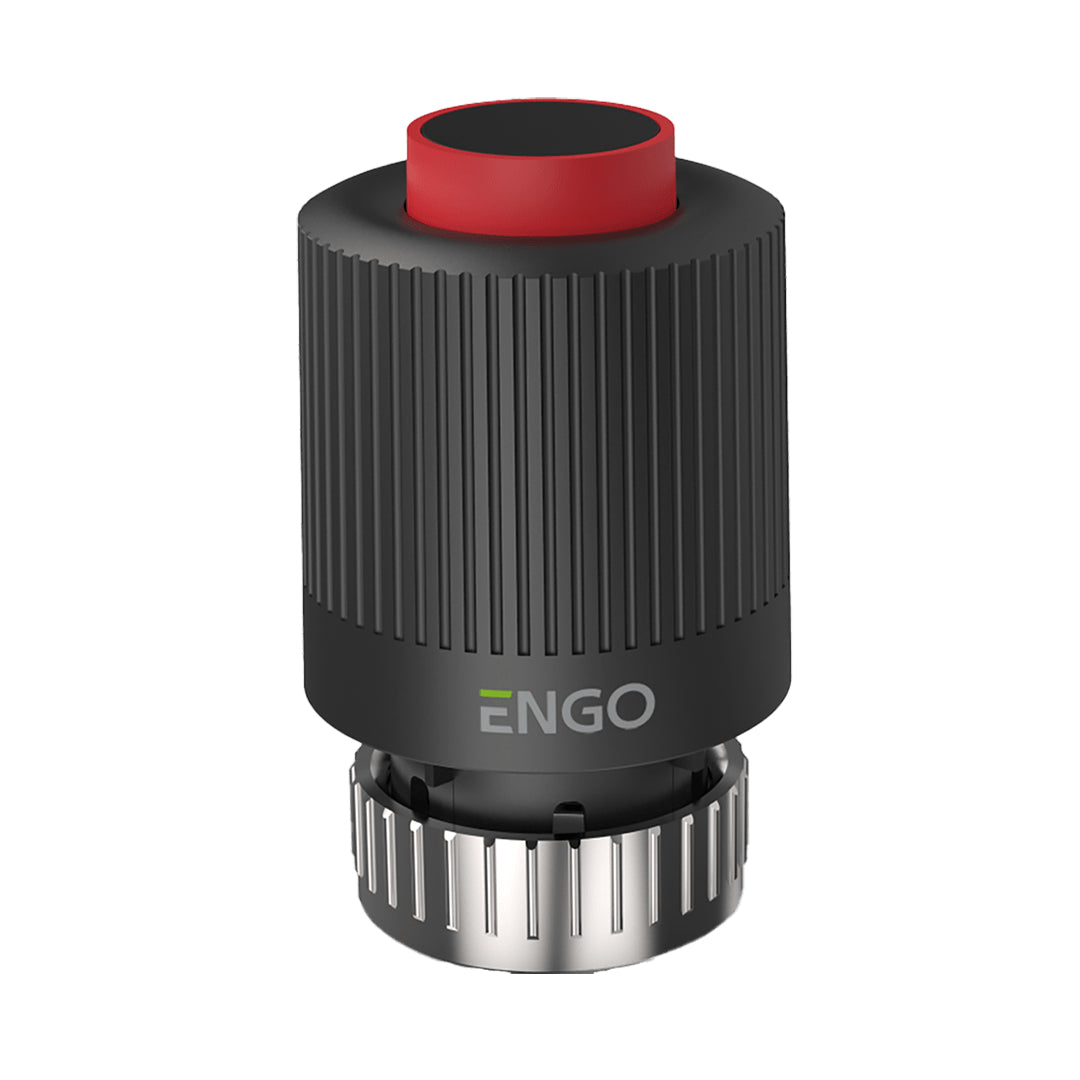

Thermoelectric drive ENGO E30NO-230
New
Termoelektrický pohon - napájení 230V AC 50Hz, závit M30 × 1,5 mm, typ NO (normálně otevřený), příkon 2W, spínací proud 300mA/200ms, tlaková síla 100N ±20%, max. zdvih 4,5 mm, krytí IP54/II, délka kabelu 90 cm, rozměry O41 × 65 mm, skladovací teplota -25 až +60°C, okolní teplota max. 60°C, červený indikátor stavu ventilu, tichý provoz
In stock 4 pcs
Expected shipping:
15.06.2026
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
ENGO | SKU:
06446835
Thermoelectric drive ENGO E30NO-230
Regular price
259,00 Kč
214,05 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Thermoelectric actuator for floor heating distributor, 230V, M30x1,5, normally open
- Thread size M30
- Low power consumption (only 2 W) - energy efficient
- Highly durable - lasts for years
- Compact dimensions - hassle-free installation
- Quiet operation
- Red status indicator to show whether the valve is open or closed.
Specifications:
Version: NO - normally open.
Thread size: M30 x 1.5 mm
Power supply: 230V AC 50Hz
Power consumption: 2W
Start-up current: 300mA / 200ms
Pressure force: 100N +/- 20%
Maximum stroke: 4.5mm
Storage temperature: -25°C to +60°C
Ambient Temperature: + +60°C Max.
Protection Class: IP 54/II
Cable length: 90 cm
Dimensions [mm]: ? 41 x 65
- Thread size M30
- Low power consumption (only 2 W) - energy efficient
- Highly durable - lasts for years
- Compact dimensions - hassle-free installation
- Quiet operation
- Red status indicator to show whether the valve is open or closed.
Specifications:
Version: NO - normally open.
Thread size: M30 x 1.5 mm
Power supply: 230V AC 50Hz
Power consumption: 2W
Start-up current: 300mA / 200ms
Pressure force: 100N +/- 20%
Maximum stroke: 4.5mm
Storage temperature: -25°C to +60°C
Ambient Temperature: + +60°C Max.
Protection Class: IP 54/II
Cable length: 90 cm
Dimensions [mm]: ? 41 x 65
