Thermostat EUROKOMP WH7016A E6247
Digitální termostat - rozsah měření -50 až +110°C, přesnost ±0,5°C, výstupní zatížení až 30A při 230V (max. 5000W), funkce topení i chlazení, nastavitelná hystereze, přehledný LCD displej, funguje jako spínací relé (bez výstupního napětí), napájení AC, rozměry 85 × 75 × 34,5 mm, snadná integrace do automatizačních systémů
In stock more than 5 pcs
Expected shipping:
15.06.2026
Regular price
369,00 Kč
304,96 Kč
excl. VAT
Unit price
/
Unavailable
EUROKOMP | SKU:
08840398

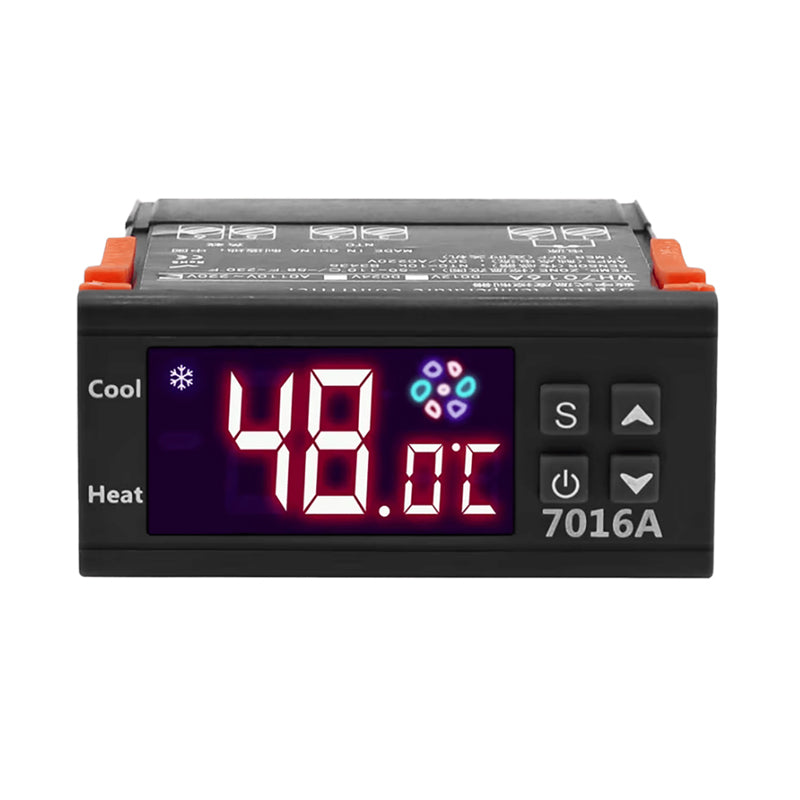

Thermostat EUROKOMP WH7016A E6247
Regular price
369,00 Kč
304,96 Kč
excl. VAT
Unit price
/
Unavailable
Product description
The HW7016A thermostat is an advanced device that allows precise temperature monitoring and control in the range of -50°C to 110°C. Thanks to the large, clear LCD display and intuitive interface, operation is simple and convenient.
The thermostat does not provide output voltage - it closes the circuit! (works like a lamp switch)
Wide measurement range: -50°C to 110°C, with an accuracy of ±0.5°C.
Heating and cooling function: the ability to control both heating and cooling devices.
High output power: supports loads up to 30A at 230V, which allows you to control devices with a power of up to 5000W.
Easy setup: intuitive setting of the target temperature and hysteresis.
Compact dimensions: approximately 85 x 75 x 34.5 mm, allowing easy integration into various systems.
Technical parameters:
Temperature measurement range: -50°C ~ 110°C
Measurement accuracy: ±0.5°C
Power supply: AC 230V
Maximum output load: 30A (up to 6600W)
Sensor: NTC (10K3435) with 1m cable
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 60 °C
Housing material: ABS
Application:
The HW7016A thermostat is ideal for heating and cooling applications such as:
Incubators
Refrigerators
Aquariums
HVAC systems
Temperature control in industrial processes
Set contents:
1 x HW7016A digital thermostat

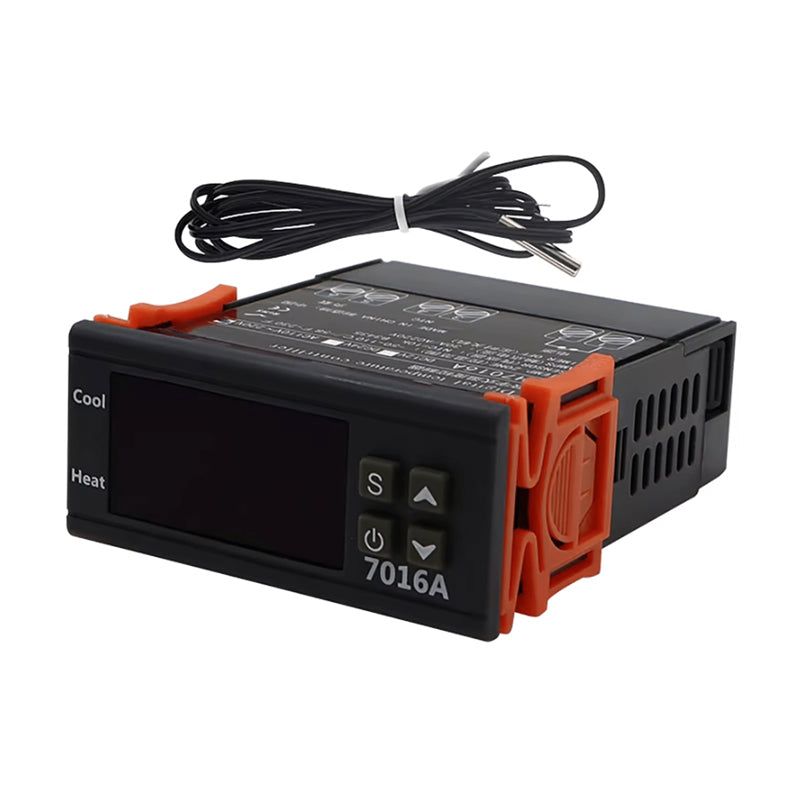

1 x NTC temperature sensor (10K3435) with 1m cable
Why choose the HW7016A thermostat?
With its high measurement accuracy, wide temperature range, and ability to control both heating and cooling, the 7016A thermostat provides a reliable solution for many applications requiring precise temperature control.
Note:
The product is not a separately functional unit, it requires professional assembly.
The thermostat does not provide output voltage - it closes the circuit! (works like a lamp switch)
Wide measurement range: -50°C to 110°C, with an accuracy of ±0.5°C.
Heating and cooling function: the ability to control both heating and cooling devices.
High output power: supports loads up to 30A at 230V, which allows you to control devices with a power of up to 5000W.
Easy setup: intuitive setting of the target temperature and hysteresis.
Compact dimensions: approximately 85 x 75 x 34.5 mm, allowing easy integration into various systems.
Technical parameters:
Temperature measurement range: -50°C ~ 110°C
Measurement accuracy: ±0.5°C
Power supply: AC 230V
Maximum output load: 30A (up to 6600W)
Sensor: NTC (10K3435) with 1m cable
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 60 °C
Housing material: ABS
Application:
The HW7016A thermostat is ideal for heating and cooling applications such as:
Incubators
Refrigerators
Aquariums
HVAC systems
Temperature control in industrial processes
Set contents:
1 x HW7016A digital thermostat
1 x NTC temperature sensor (10K3435) with 1m cable
Why choose the HW7016A thermostat?
With its high measurement accuracy, wide temperature range, and ability to control both heating and cooling, the 7016A thermostat provides a reliable solution for many applications requiring precise temperature control.
Note:
The product is not a separately functional unit, it requires professional assembly.
