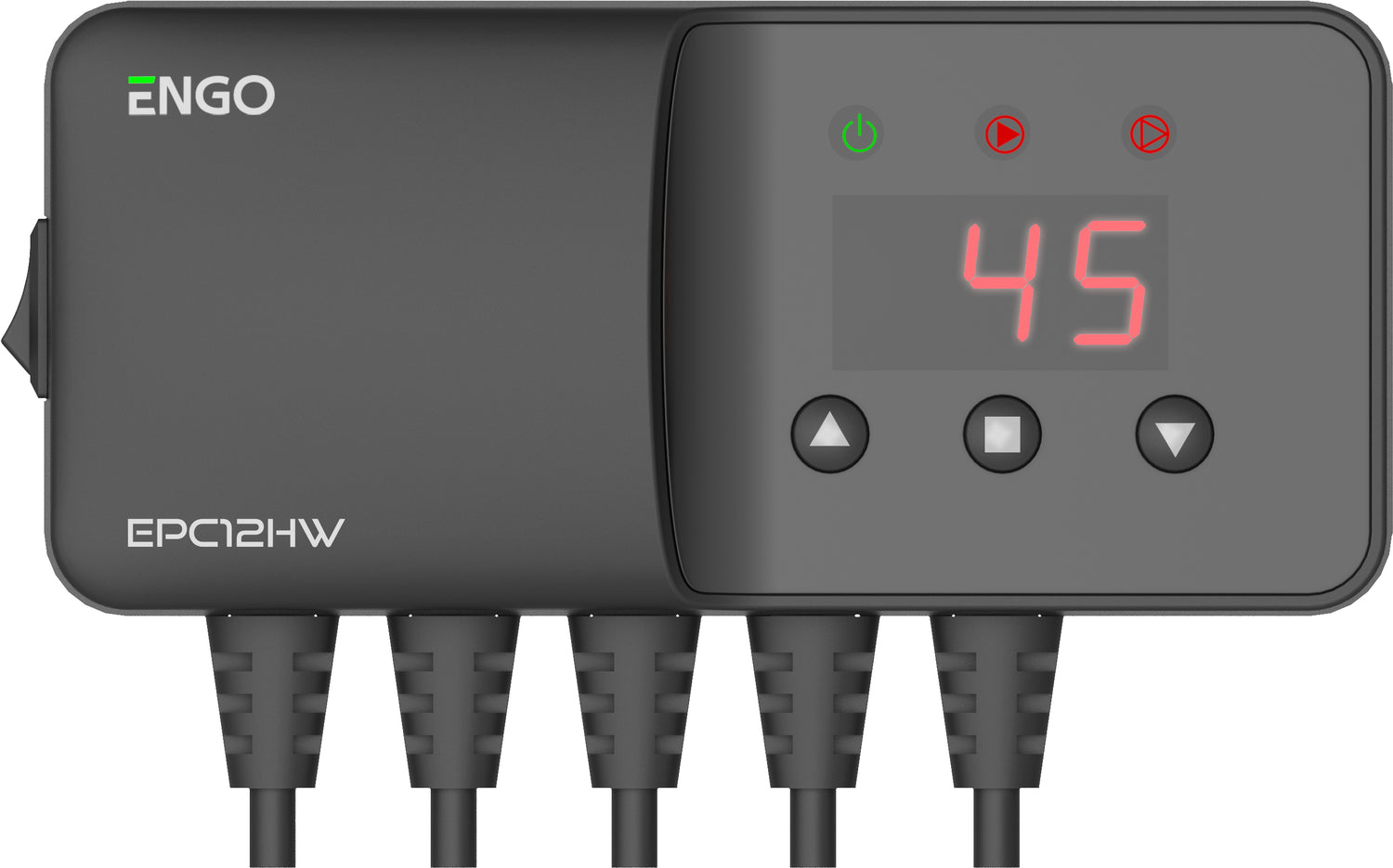

Thermostat for controlling the ENGO EPC12HW circulator
New
Wholesale price
Termostat pro ovládání čerpadel ÚT a TUV - napájení 230V AC 50Hz, max. zátěž 2× 3(1)A, rozsah měření 0–99°C, rozsah řízení ÚT 5–80°C, rozsah řízení TUV 20–80°C, teplotní odolnost senzoru -10 až 120°C, délka čidla ÚT 1,5 m, délka čidla TUV 3 m, řízení na základě teplotního rozdílu kotle a nádrže, rozměry 155 × 70 × 39 mm
In stock more than 5 pcs
Expected shipping:
29.07.2026
Regular price
1.088,00 Kč
899,17 Kč
excl. VAT
Unit price
/
Unavailable
ENGO | SKU:
06446827
Thermostat for controlling the ENGO EPC12HW circulator
Regular price
1.088,00 Kč
899,17 Kč
excl. VAT
Unit price
/
Unavailable
Product description
Thermostat for DHW pump control
The device switches on when the boiler temperature exceeds the set temperature of the central heating pump. the DHW pump operates based on the temperature difference. The DHW pump switches on when the boiler temperature exceeds the superheater temperature by the hysteresis set by the user. The hot water pump operates until the boiler and tank temperature are equal or the set tank temperature is reached.
Technical parameters:
Power supply: 230V AC 50Hz
Max. 3(1) A
Max. 3(1) A
Temperature measurement range: 0 - 99°C
DHW temperature control range: 5 - 80°C
DHW temperature control range DHW temperature control range: 20 - 80°C
Sensor temperature resistance: -10 - 120°C
CT sensor span: 1.5m
DHW sensor separation: 3m
Dimensions: 155x70x39 mm
The device switches on when the boiler temperature exceeds the set temperature of the central heating pump. the DHW pump operates based on the temperature difference. The DHW pump switches on when the boiler temperature exceeds the superheater temperature by the hysteresis set by the user. The hot water pump operates until the boiler and tank temperature are equal or the set tank temperature is reached.
Technical parameters:
Power supply: 230V AC 50Hz
Max. 3(1) A
Max. 3(1) A
Temperature measurement range: 0 - 99°C
DHW temperature control range: 5 - 80°C
DHW temperature control range DHW temperature control range: 20 - 80°C
Sensor temperature resistance: -10 - 120°C
CT sensor span: 1.5m
DHW sensor separation: 3m
Dimensions: 155x70x39 mm
