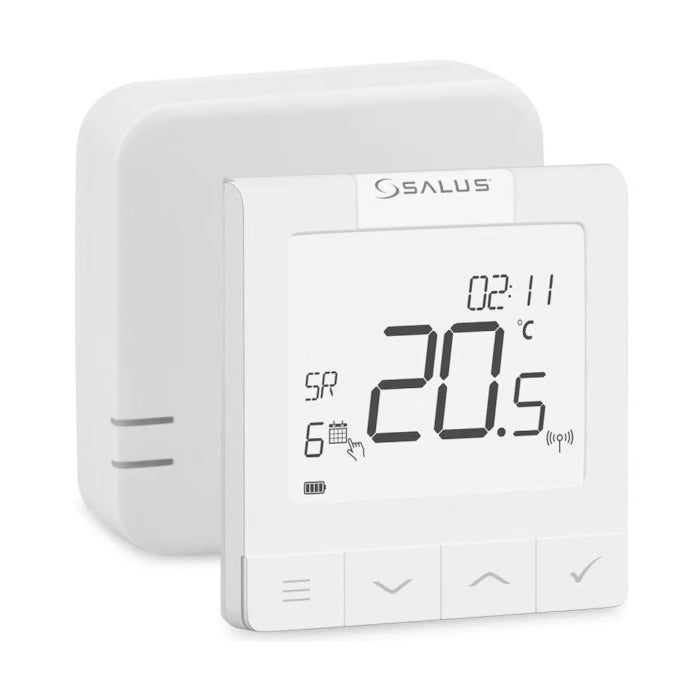

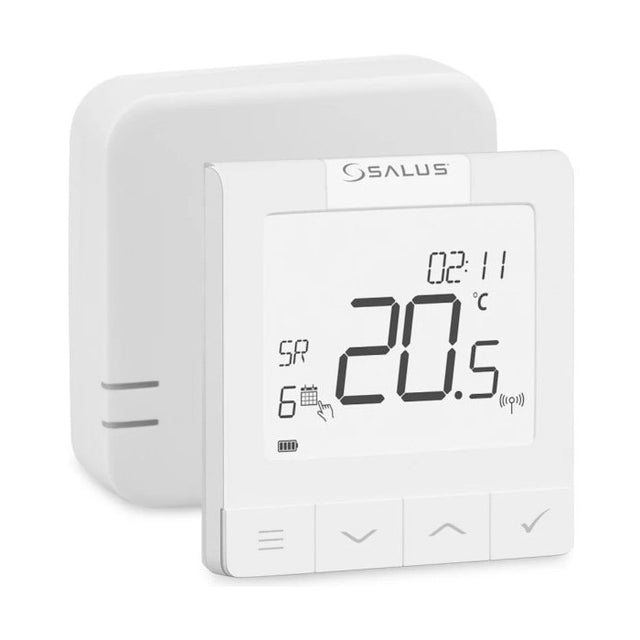

Thermostat SALUS WQ610RF wireless

The product is used to control heating equipment. Its operation is based on maintaining comfortable thermal conditions in the room. The thermostat can operate in manual mode or according to a schedule. It connects directly to the boiler.

Control is possible in two ways:

- by closing the contacts in the heating device, which has an input for connecting the thermostat ON / OFF.
- boiler power modulation via OpenTherm communication protocol (OT + 4.0). This is a two-way communication between the boiler and the thermostat. The thermostat modulates the boiler output to ensure maximum efficiency and comfort. The thermostat automatically detects the OT + 4.0 protocol, displays the boiler error codes and allows you to set the hot water temperature.

Properties:

- the set is paired at the factory;
- choice of Hysteresis or ITLC algorithm;
- work with a time schedule;
- PIN code protection mode;
- minimum and maximum temperature limitation;
- possibility to temporarily change the temperature (it will be overwritten only after the next program change);
- the device has unique transmission codes;
- works at a frequency of 2.4 GHz - stable signal resistant to interference.

Technical parameters:

- Transmitter power supply: Built-in Li-Ion 3.7 V battery
- Receiver power supply: 230 V AC 50 Hz
- Maximum receiver load: 16 (5) A
- Output signal: OpenTherm or COM / NO
- Temperature control range: 5 - 35 ° C
- Temperature accuracy: 0.1 ° C or 0.5 ° C
- Control algorithm: ITLC or hysteresis: ± 0.25 ° C or ± 0.5 ° C
- Communication: Wireless, 2.4 GHz
- Dimensions [mm]: Transmitter: 86 x 86 x 11
- Receiver: 98 x 98 x 23
- 5 year warranty
