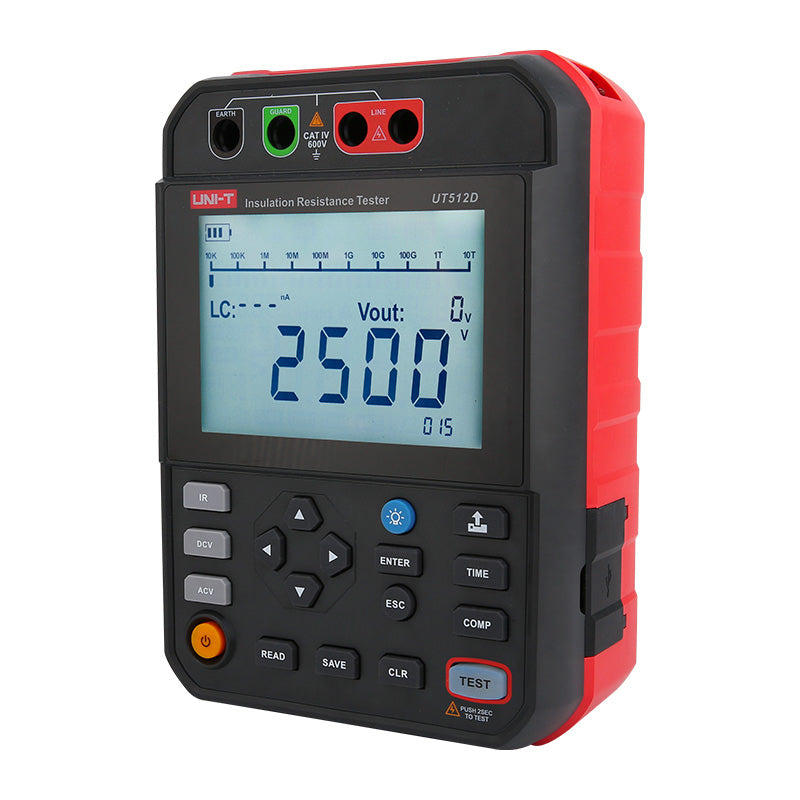

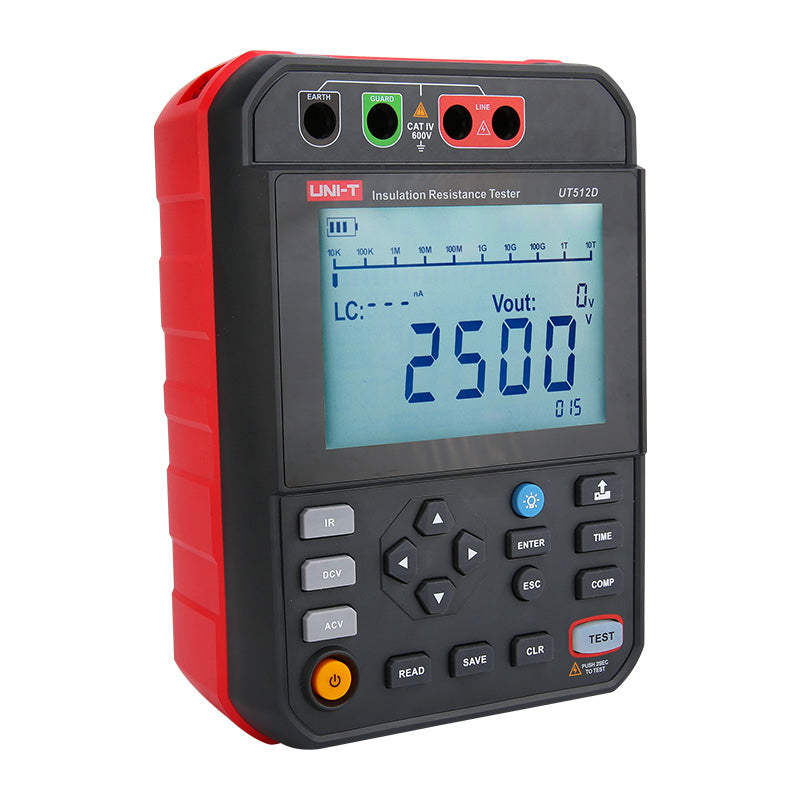

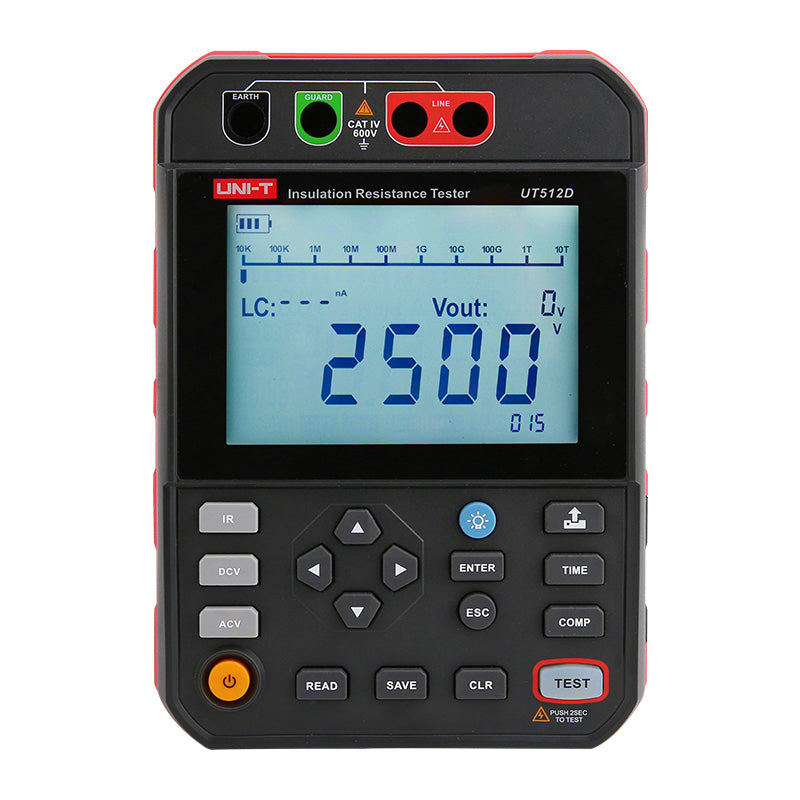

Insulation Resistance Tester UNI-T UT512D

This product comes with a 3-year warranty. The UT512D 2.5 kV insulation resistance tester is a digital high-voltage insulation resistance tester, designed with several ranges including 250 V, 500 V, 1000 V, 2500 V. It is an ideal measuring instrument for the department of electric power, telecommunications, meteorology, machine shop, oil field , electromechanical installation and maintenance and power supply department in industrial and mining companies.


Product parameters:

- output voltage range: Up to 2.5kV
- measurement of PI/DAR
- measurement of short-circuit current
- automatic display of leakage current
- step voltage: 10% of range
- high voltage alarm
- automatic discharge
- data storage: 999 sets
- PC software analysis: via USB cable
- overvoltage category: CAT IV 600V


Technical parameters:

- test voltage: 500V / 1000V / 1500V / 2500V
- capacity test: NO
- low resistance test: NO

- output voltage (nominal / voltage range:
250V / 350V, 275V, 300V
500V / 300V, 350V, 400V, 450V, 500V, 550V, 600V
1000V / 500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V
2500V / 1250V, 1500V, 1750V, 2000V, 2250V, 2500V
output voltage step voltage range (Rating) Move 10% of each range each time and adjust the voltage range to 50%~120% of each range
display accuracy: ± (10% reading + 10V)
output accuracy:±(0%~20%)

- DC voltage: 30 ~ 1000 V DC / ±(3%+5)
- AC voltage: 30 ~ 750 V AC / 50Hz/60Hz ±(3%+5)
- current: 0.01nA ~ 3.5mA
- short-circuit current: approx. 3.5mA

- polarization index (PI): automatic display
- dielectric absorption (DAR): automatic display
- timing measurement
- resistance comparison
- monitoring function: monitor the voltage of the measured object and the state of discharge after testing
- timing range: 0 s ~ 99m and 59s
- storage function: 999 sets
- USB to connect to a PC
- low battery indication
- automatic shutdown
- dimensions: 238 x 166 x 90.5 mm (L*W*D)
- power supply: 8 x 1.5V alkaline batteries (LR14)
- product color black+red
- product weight: 1800 g (including battery)

Accessories:

- test cable (red, black, green: 1 for each) 3 pcs
- USB cable 1 pc
- carrying strap 1 pc

Manufacturer: UNI-TREND
