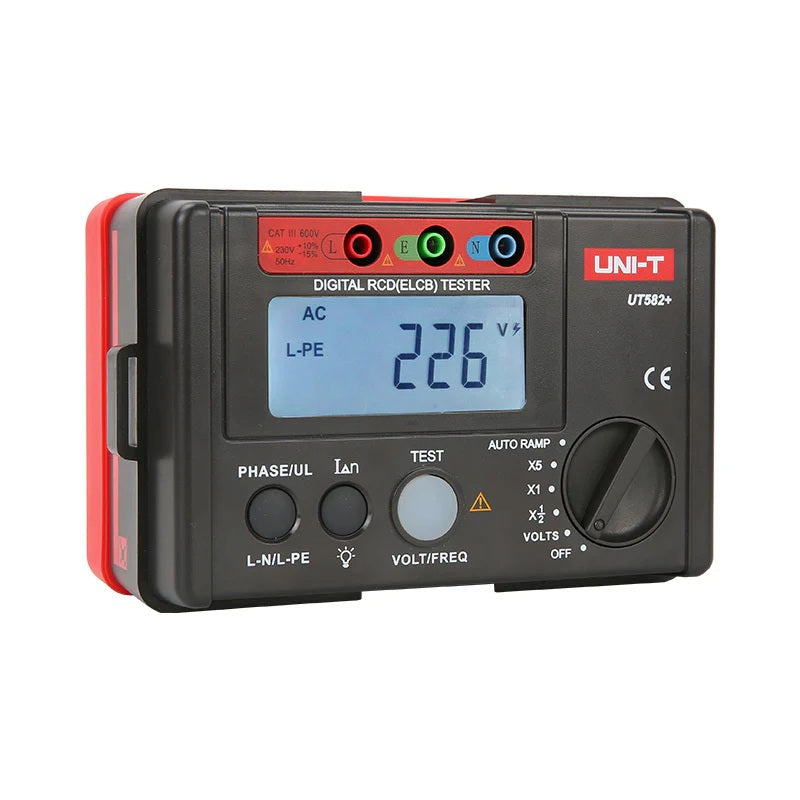

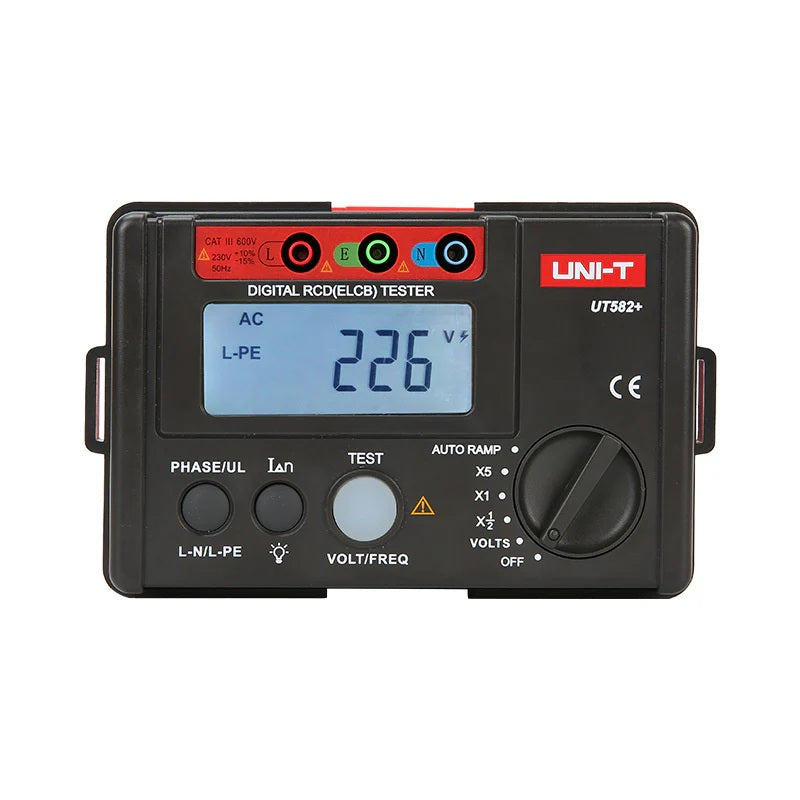

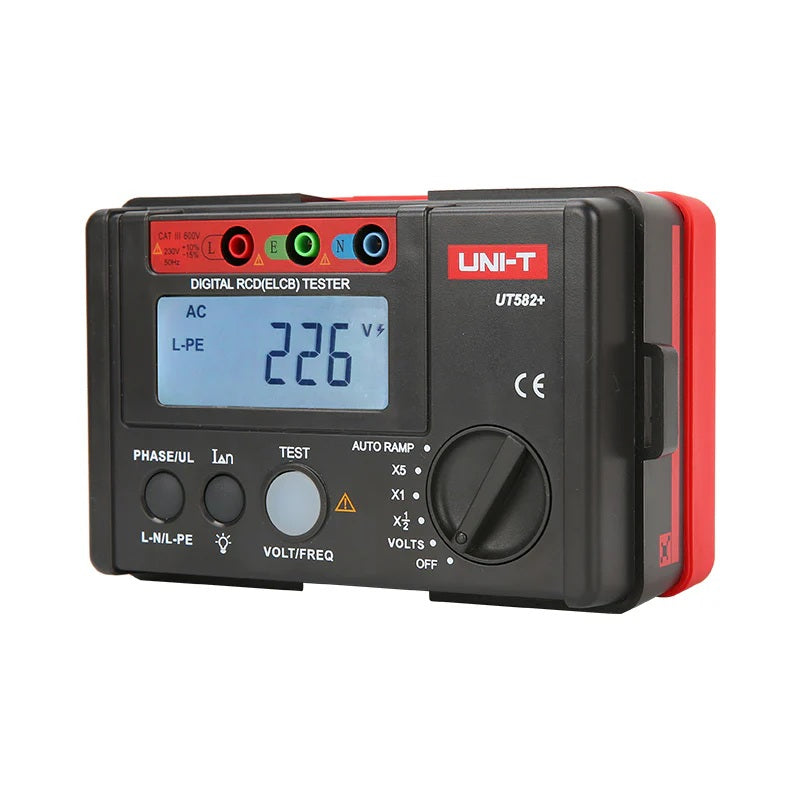

UNI-T UT582+ Digital RCD (ELCB) Tester

We provide 3 years warranty for this product.

UNI-T UT582+ Digital RCD (ELCB) Tester, a professional tool for electrical safety.

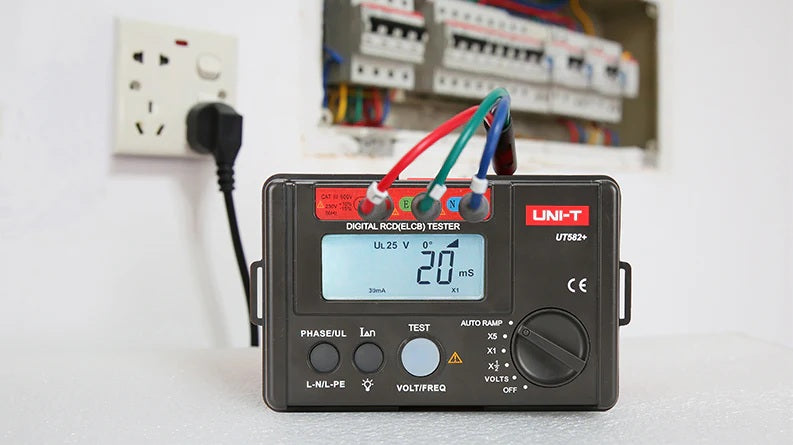

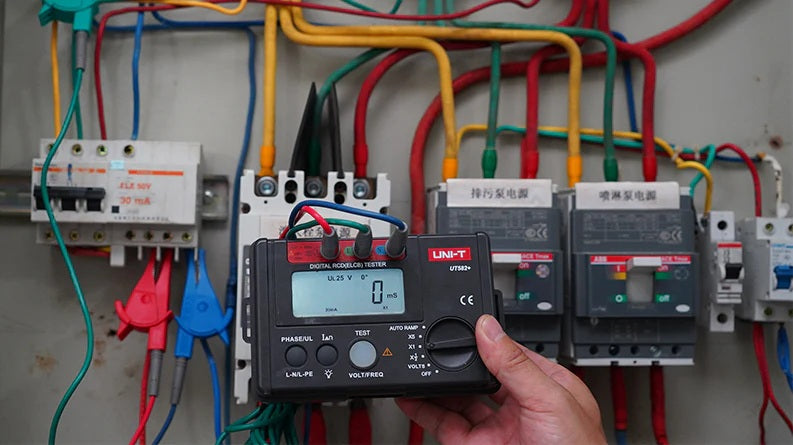

The UNI-T UT582+ tester is an ideal tool for checking and testing residual current devices (RCDs) in electrical distribution. It allows precise measurement of the response time and reliability of the RCDs, helping to ensure the safety of installations in homes, industrial buildings and commercial spaces. It is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with a supply voltage of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz~65Hz.

Easy to use and practical functions:
The UNI-T UT582+ tester is equipped with useful functions that make your work easier and your measurements more accurate. The phase reversal function allows testing under various wiring conditions, the hold function stores the last measurement for better analysis, and the overload indicator ensures measurement accuracy. Automatic shutdown after inactivity helps save battery life, and the backlit LCD display allows you to work even in poorly lit environments.

Product parameters:

- universal use: supports voltage measurement and RCD testing in a wide range of rated currents from 10 mA to 500 mA.
- compact design, low weight and supplied accessories ensure convenient work in the field.
- easy operation: intuitive interface, backlit display and phase reversal function make measurements easy.
- automatic shutdown - saves battery
- measurement of the reaction time of the RCD - tests x1/2, x1, x5
- LCD backlight: improves visibility in different lighting conditions
- data storage
- display of overrange: OL
- buzzer in case of incorrect operation, buzzer in case of shutdown
- testing of residual current devices (RCD): 10/20/30/100/300/500 mA
- durable design: suitable for electricians and electrical installation experts

Technical parameters:

Testing of residual current devices (RCD) - supports values ??10/20/30/100/300/500 mA
- range setting / rated operating current
1/2x - 10/20/30/100/300/500 mA (2000ms)
1x - 10/20/30/100/300 mA (1000ms)
- 500 mA (300ms)
5x - 10/20/30 mA (40ms)
automatic start: 10/20/30/100/300 mA (300ms)
operating voltage (frequency): 195 ~ 253 V

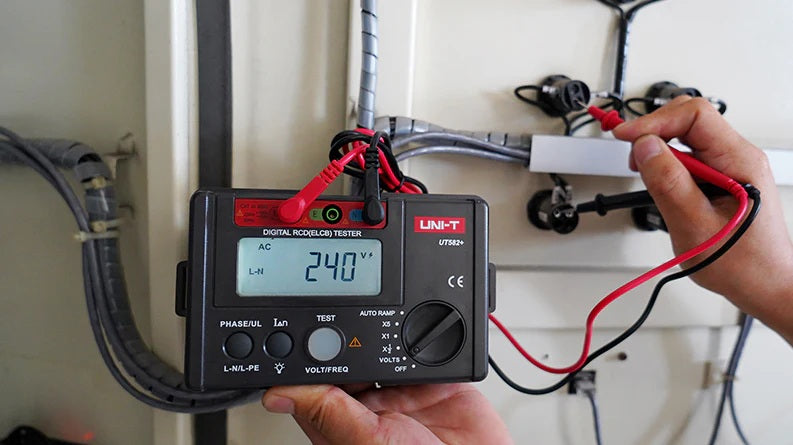

Voltage measurement:
- voltage range: 30~600 V AC
- frequency: 45 Hz ~ 65 Hz (1V)
- accuracy: ±(3% + 3)

Functions:
- number of displays: 999
- low battery indication: <7.2 V
- automatic shutdown
- LCD backlight
- data storage
- phase selection function
- over-range indicator
- measurement: RCD tripping time, frequency, AC voltage, RCD tripping current
- power supply: 6× 1.5 V AA batteries
- weight: 400 g
- dimensions: 160 × 70.5 × 100 mm

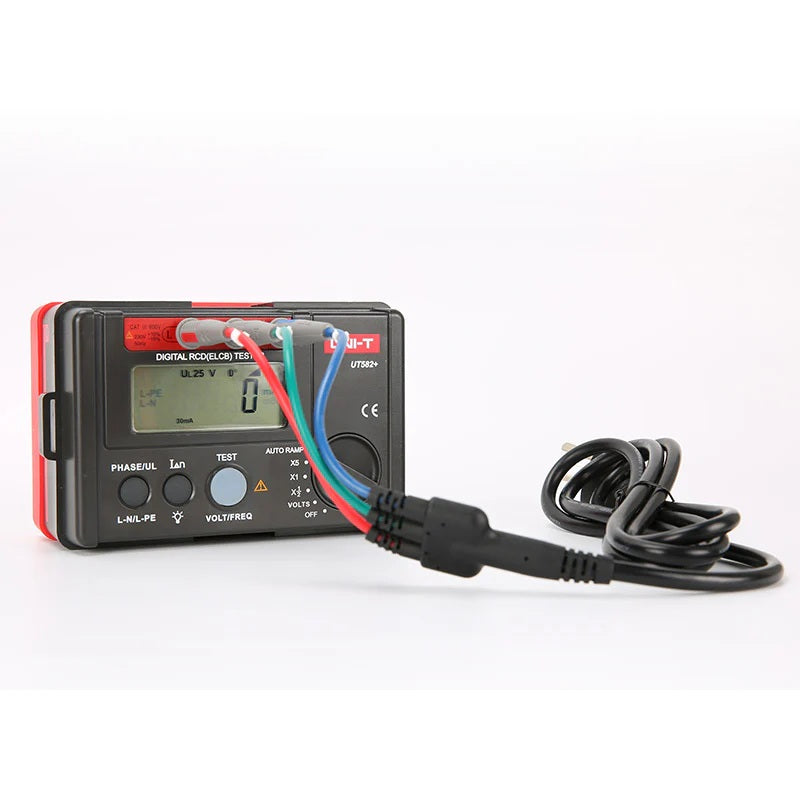

Standard equipment:
- measuring lines
- carrying strap
- case
