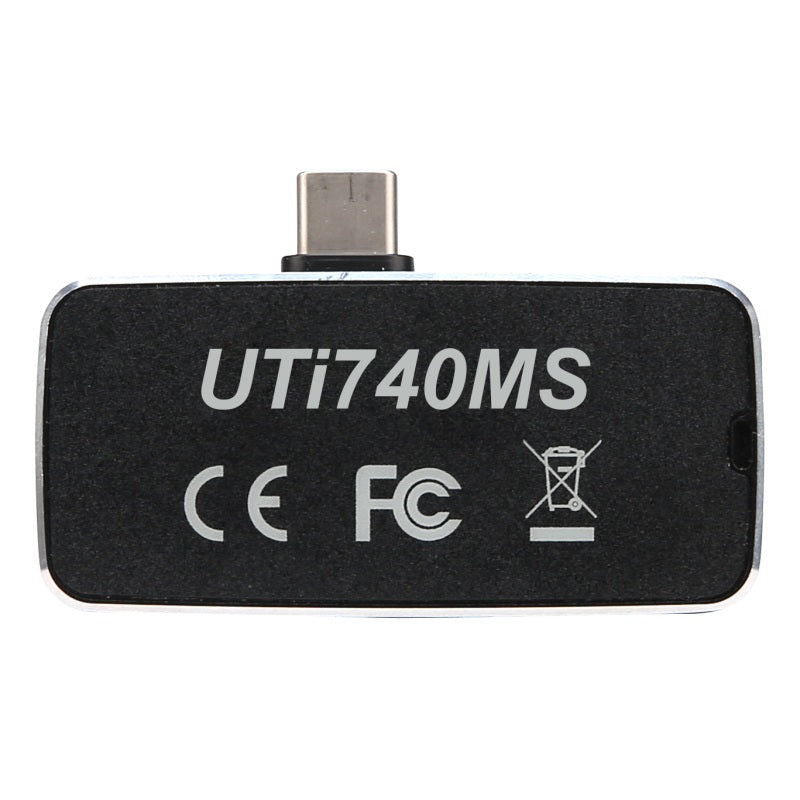

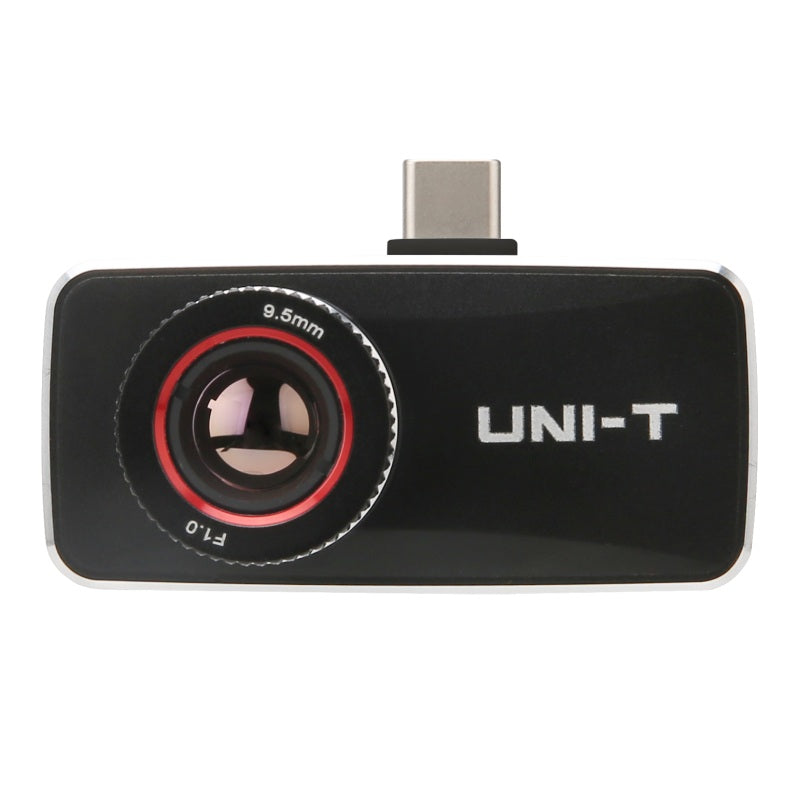

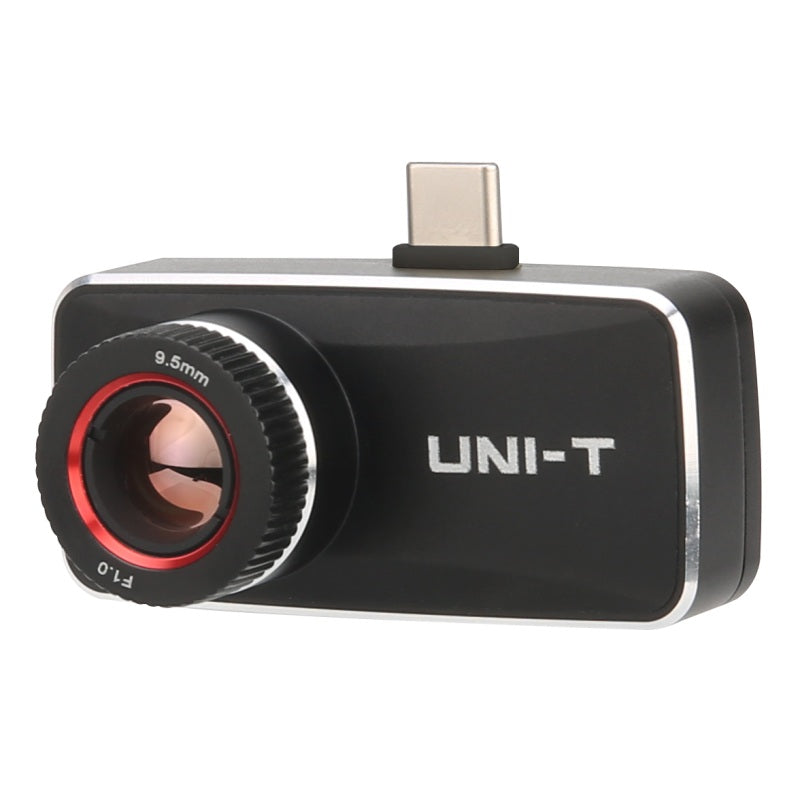

UNI-T UTi740MS thermal imager (Android 7.0/iOS15)

This product comes with a 3-year warranty.

The UNI-T UTi740MS is a professional infrared thermal imager for Android and iOS smartphones, designed to measure the surface temperature of objects from -20°C to 550°C, offering a high infrared resolution of 400 × 300 px and a sensitive VOx detector with a NETD ?45 mK. With its compact size and simple USB-C connection, it turns your phone into a professional thermal imaging camera in no time, suitable for electrical diagnostics, industrial applications, HVAC systems, building inspections and electronics development.
The thermal imaging camera uses Super Resolution technology, which increases image quality in real time up to 800×600 px resolution and displays more details during measurements. Manual focusing allows the image to be precisely adjusted to the distance of the object being measured, greatly improving the diagnosis of electronic components, machinery or electrical switchboards.

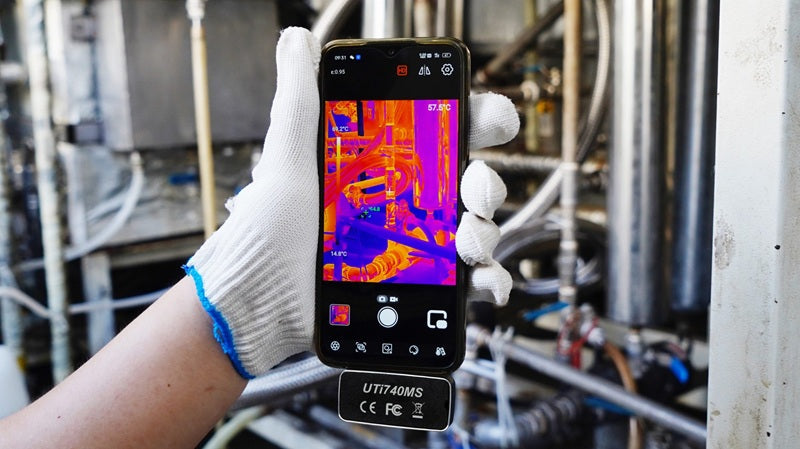

On the mobile phone display, you can see the thermal image of the objects, converted into a visible image with the selected color palette. Alarms can be set when a certain temperature is exceeded. The image from this camera can be blended (PIP) with the image of the front or rear camera of the mobile phone, while at the same time the infrared image can be mirrored. It is possible to analyse the temperature at a point or marked area (rectangle, circle, line, etc.) of the measured object. Automatic or manual triggering of the camera shutter, saving photos or videos. Possibility to edit photos in the application.

Advantages of thermal camera detection:
1. Intuitive, efficient and convenient, allowing users to directly "see" the temperature fluctuations of the measured object.
2. Thermal condition of different sites for comprehensive analysis, providing more information for assessing failure points.


Application areas - UNI-T UTi740MS is ideal for:

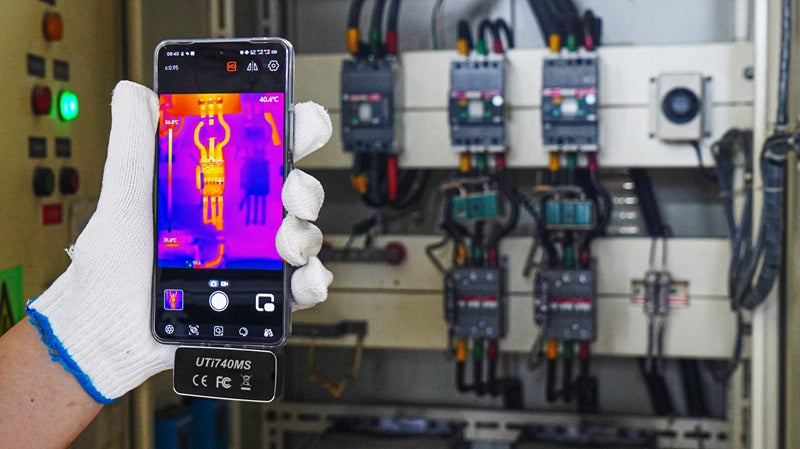

- Inspection of electrical switchboards.
- industrial electrical inspections

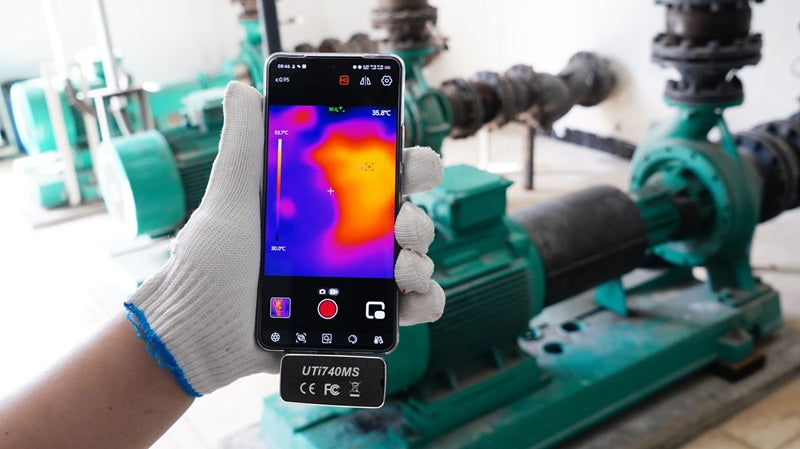

- equipment and machine diagnostics

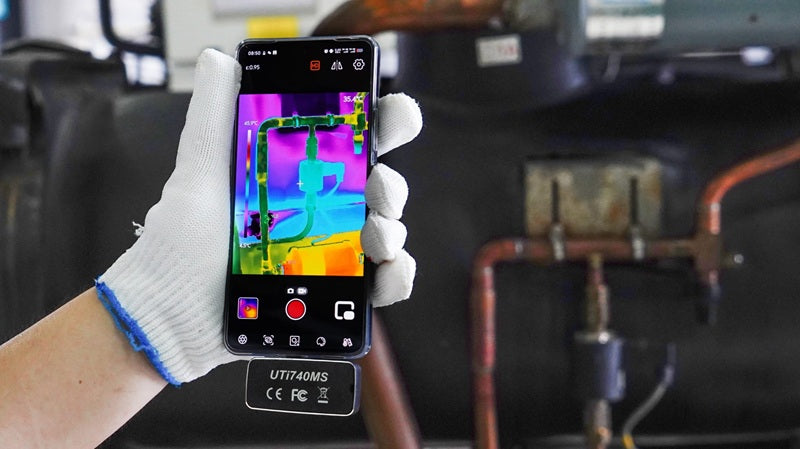

- HVAC systems and air conditioning inspection
- building diagnostics and thermal leakage

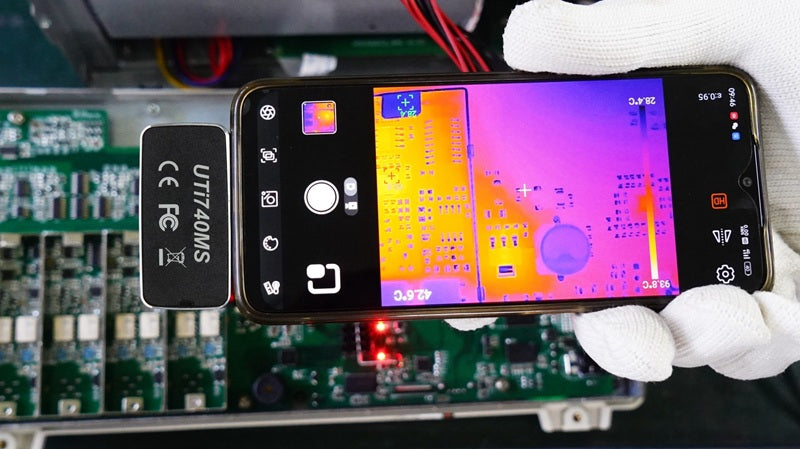

- electronics and PCB servicing
- electronic circuit development and testing
- preventive maintenance of equipment


Product parameters :

- IR resolution: 400×300 pixels (can be increased to 800×600 when Super Resolution is enabled)
- Compatible with Android 7.0 / iOS15 and later
- Surface temperature measurement from -20 °C to 550 °C
- Highly sensitive UFPA (Vanadium oxide ) detector
- thermal sensitivity ?45 mK
- manual focus
- refresh rate ?25 Hz
- temperature measurement from -20 °C to +550 °C
- USB-C connection
- Thermal / Fusion / PIP modes
- video recording and photo storage
- high and low temperature alarm
- Minimum and maximum temperature monitoring
- professional analysis of points, lines and areas
- plug & play with the "Thermal Mobile" mobile app.
- Battery-free design
- compact dimensions and low weight


Technical parameters :

- Detector type: UFPA (Vanadium oxide)
- IR resolution: 400 × 300 pixels
- Super Resolution: 800 × 600 pixels
- Pixel size: 12µm
- Refresh rate: ?25 Hz
- Thermal Sensitivity (NETD): ?45 mK @25 °C

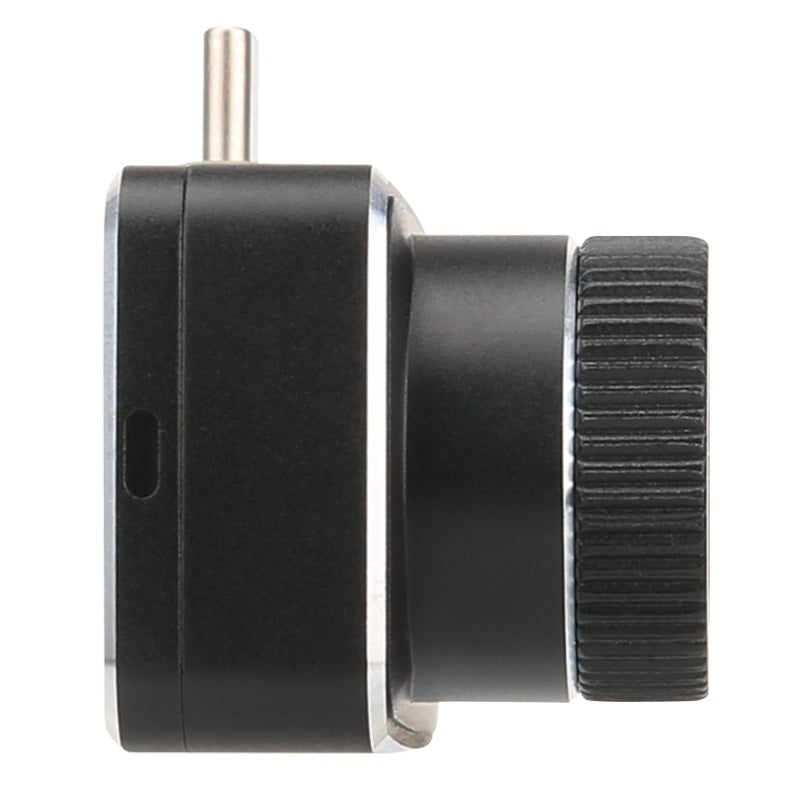

- Lens: manual adjustment
- Field of view (FOV): 29° (H) × 21.5° (E)

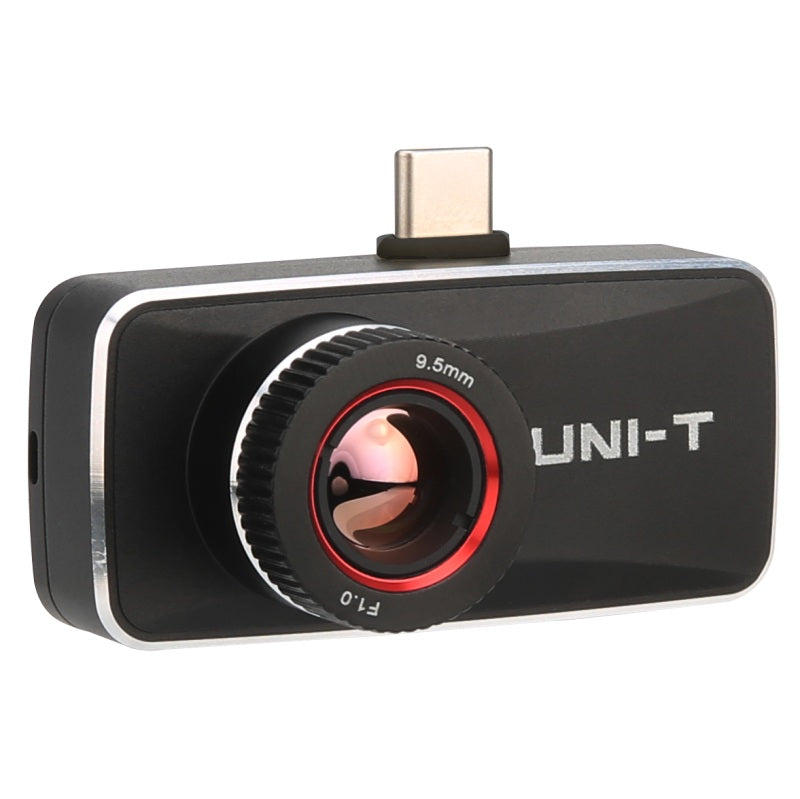

- focal length: 9.5 mm
- measurement modes: Industrial / EST screening
- Temperature range: -20 °C to +550 °C
- Temperature measurement accuracy:
Industrial: ±2% or ±2°C (whichever is greater, at an ambient temperature of 25°C) -10°C ~ 550°C
EST: ±0.5° (20°C ~ 50°C)

- Number of color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
- Image modes: Thermal, Fusion, PIP
- Temperature analysis area: 5 points / 1 line / 3 rectangles / 3 circles
- On-screen analyzer: Auto/Below/Above/Section/Manual
- Adjustable high, low temperature alarm - LCD animation and buzzer
- High/low temperature monitoring
- video recording
- USB-C
- Image storage format: JPG
- Video storage format: MP4
- weight: 46 g
- dimensions: 58 mm x 27 mm 28.6 mm
- Certifications: CE, FCC, RoHS

Package contents: thermal imager UNI-T UTi740MS, USB-C extension cable, hand strap, cleaning cloth, transport bag

Manufacturer: UNI-TREND
