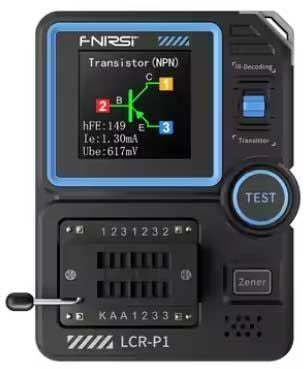

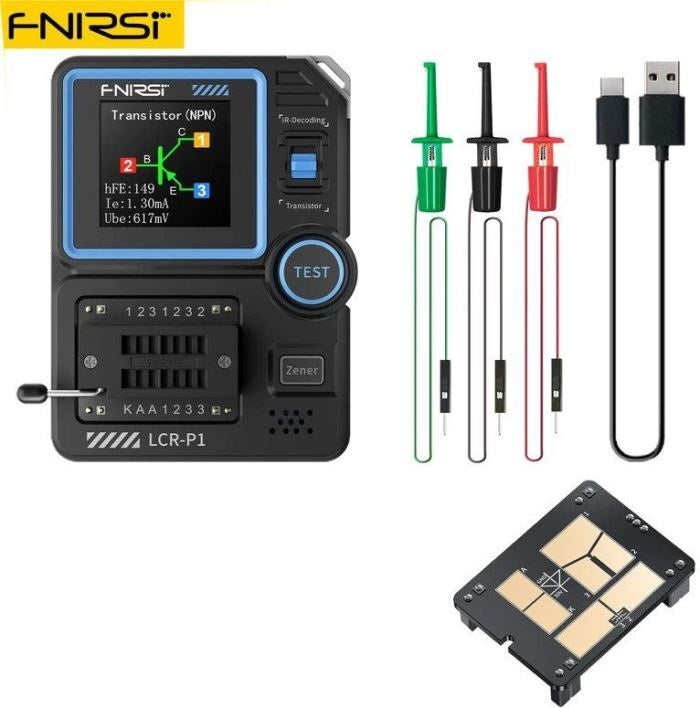

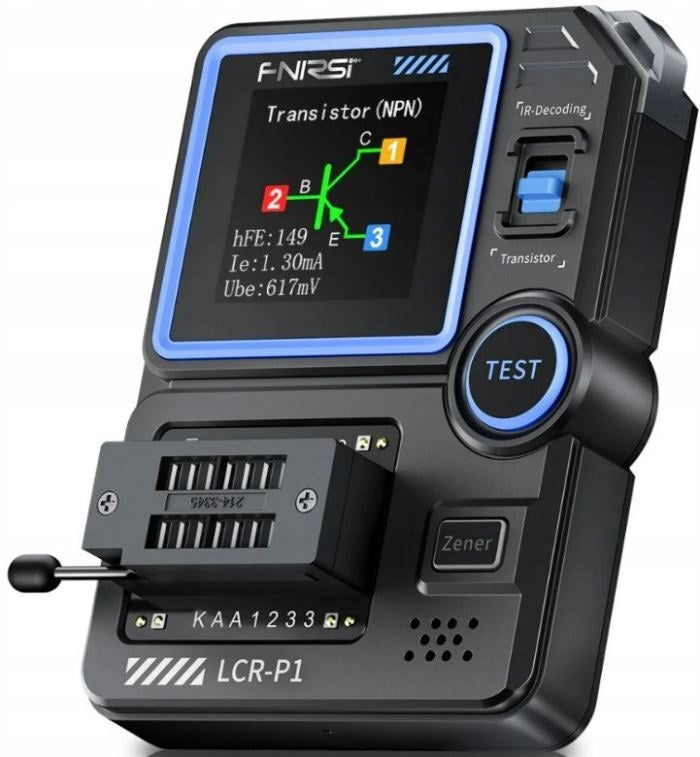

Universal component tester FNIRSI LCR-P1.

FNIRSI LCR-P1 is a multifunctional digital component and transistor tester that allows for quick and accurate testing of various electronic components such as transistors, diodes, capacitors, resistors, inductors, MOSFET components, and the like. The LCR-P1 tester is equipped with a 1.44" color display, which allows easy reading of test results. It displays all important parameters, such as measured values ??of resistance, capacitance, inductance or transistor specifications. The color display also shows details about the type and connection of the tested components, which are automatically identified by the tester. The tester also supports infrared code analysis according to the NEC protocol, which can be used for debugging and maintenance of remote controls.

FNIRSI LCR-P1 can be connected to a PC and supports firmware updates via the USB Type-C port. Connecting to a PC also allows you to export measured data.

Measured quantities:
-transistor measurement: ß = 10 to 600
-capacitance measurement: 25pF – 100mF
-resistance measurement: 0.01ohm – 50Mohm
-inductance measurement: 10µH – 1000µH
-diode and LED measurement: voltage drop < 4.5V
-Zener diode measurement: 0.01V – 4.5V / 0.01V – 32V
-Triac and thyristor measurement: gate current < 6V
-FET measurement: JFET / IGBT / MOSFET
-IR code decoding: NEC protocol

Technical parameters:

Color display: 1.44"
Power supply: built-in 300mAh lithium-ion battery, charging via USB-C (5V/1A)
Overheating protection: Automatic discharge of undischarged capacitors
Operating temperature: 0 – 40°C
Dimensions: 71 × 87 × 28 mm
-Weight: 79 g
